LEDONE HB0270 HA10-075-U-50-000-CG-M-AP 30/53/75W LED Explosion-Proof Lowbay Light 5000K Pendant and Trunnion Mount Included 120-277V

Identification & Application

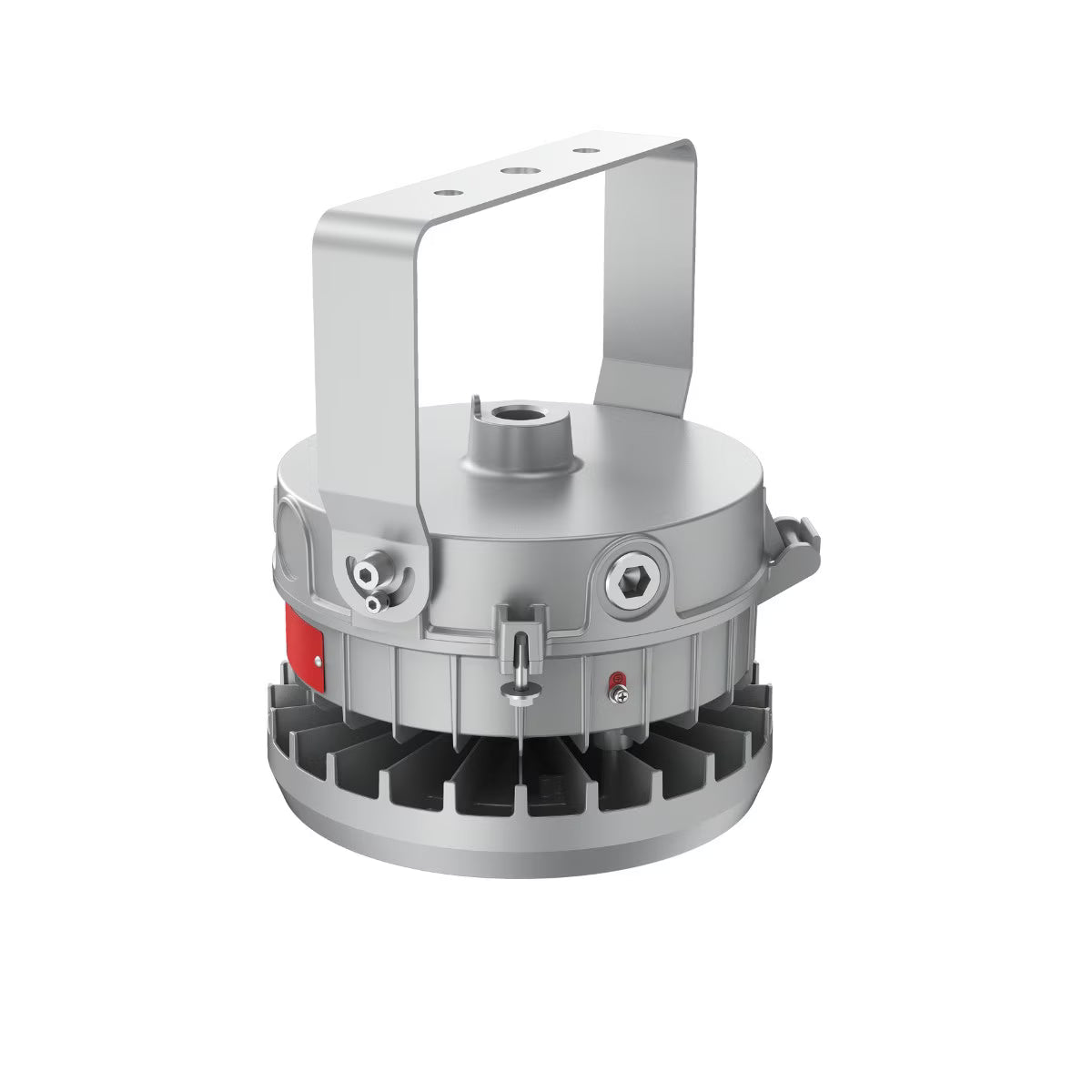

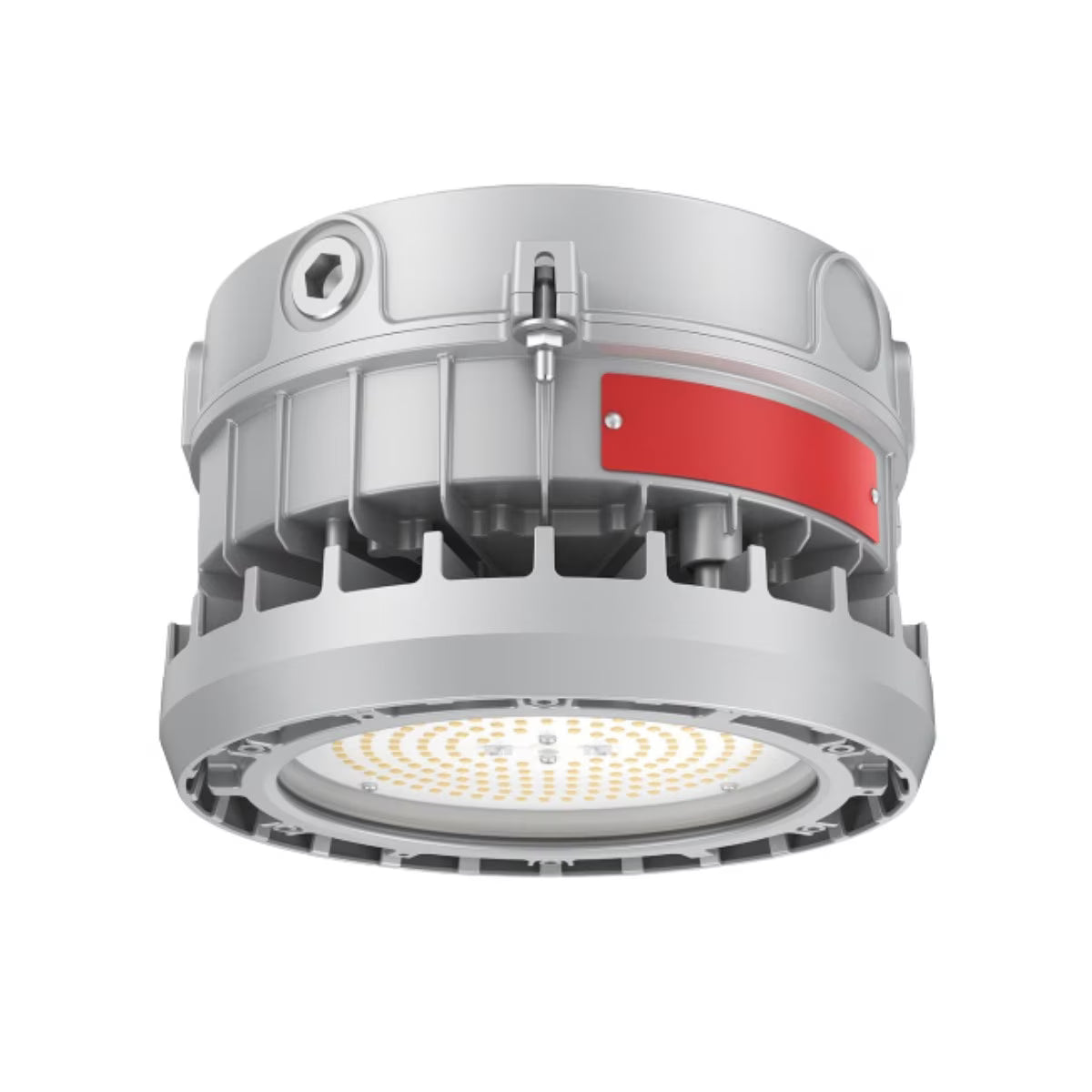

LEDone HB0270 HA10-075-U-50-000-CG-M-AP 30/53/75W LED Explosion-Proof Lowbay Light 5000K Pendant and Trunnion Mount Included 120-277V

The LEDone HB0270 HA10-075-U-50-000-CG-M-AP is a multi-watt LED explosion-proof lowbay light engineered to provide dependable illumination in hazardous industrial environments. Field-selectable 30W, 53W, and 75W power settings produce lumen outputs of 9,710, 10,950, and 12,190 lumens respectively while maintaining an impressive efficacy of 160 lumens per watt. Featuring a fixed 5000K daylight color temperature, 70 CRI, and a wide 120° beam angle, this fixture delivers soft, uniform illumination for warehouses, factories, workshops, petroleum and petrochemical facilities, gas stations, railways, ship ports, public security facilities, fire protection applications, and other Class I, Division 2 hazardous locations.

Built for demanding environments, the fixture features a low-copper aluminum alloy housing with a durable powder-coated silver finish and a high-impact polycarbonate optical lens. Operating on 120-277VAC, 50/60Hz power, it supports smooth 1-10V dimming and provides a 0.95 power factor with less than 20% total harmonic distortion for efficient electrical performance. The fixture offers instant start, quiet operation, and produces no UV or IR radiation within the light beam. A pendant and trunnion mounting bracket are included for versatile installation, while optional ceiling and wall mounting accessories allow the fixture to be adapted to a wide variety of industrial applications.

Designed for dependable long-term performance, the HA10 Series provides published LED life ratings of L70 164,000 hours and L80 102,300 hours under standard operating conditions. The fixture is backed by a 5-year limited warranty and carries a T5 temperature classification along with IP66 and IK08 protection against dust, water, and mechanical impact. Its corrosion-resistant construction, field-selectable wattage, and hazardous location certification make it an excellent lighting solution for facilities requiring reliable, energy-efficient illumination in challenging environments.

Technical Performance Specifications
