LEDONE HB0271 HA05-100-U-50-000-CG-T-DM 100W LED Explosion-Proof Highbay Light 5000K Pendant and Trunnion Mount Included 100-277V

Identification & Application

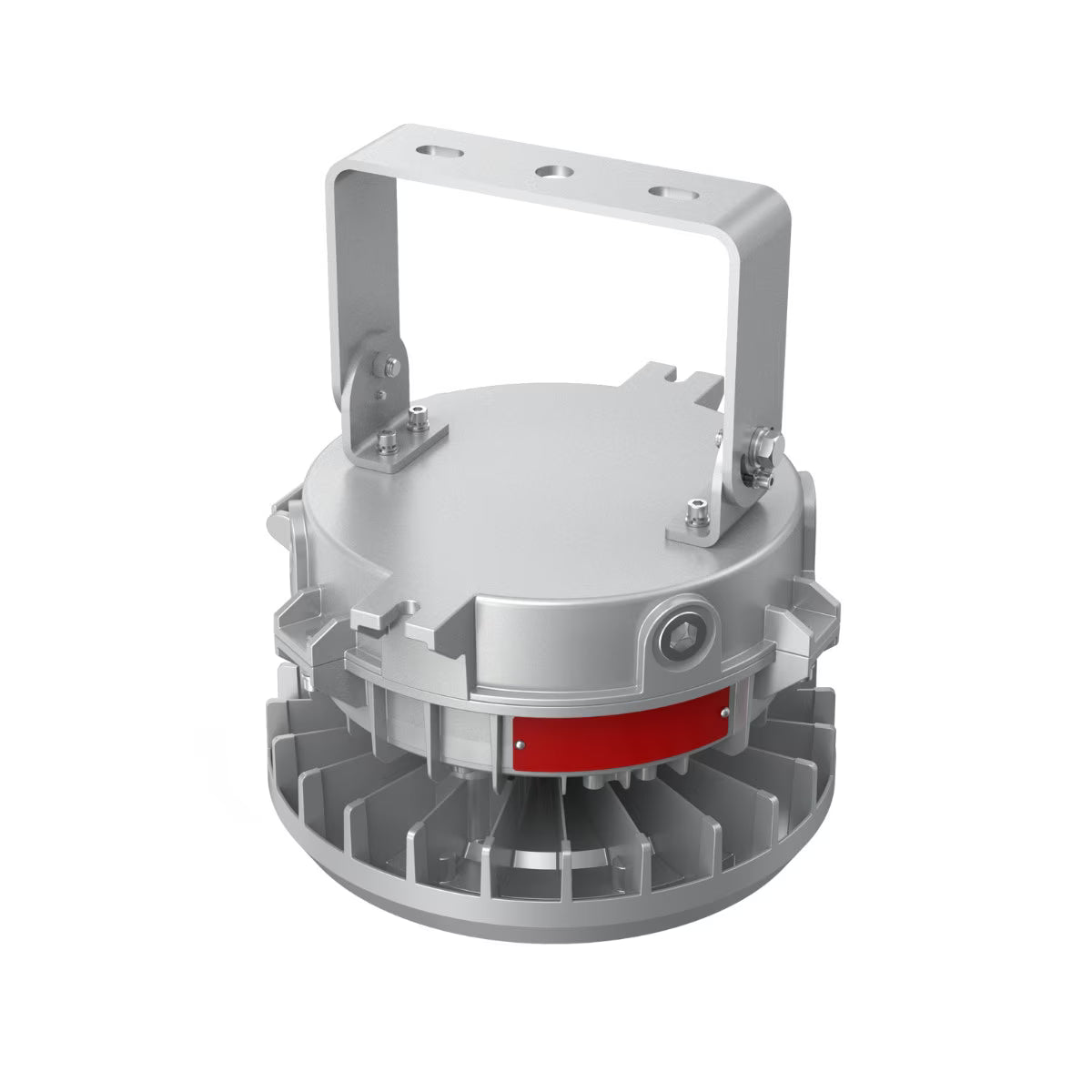

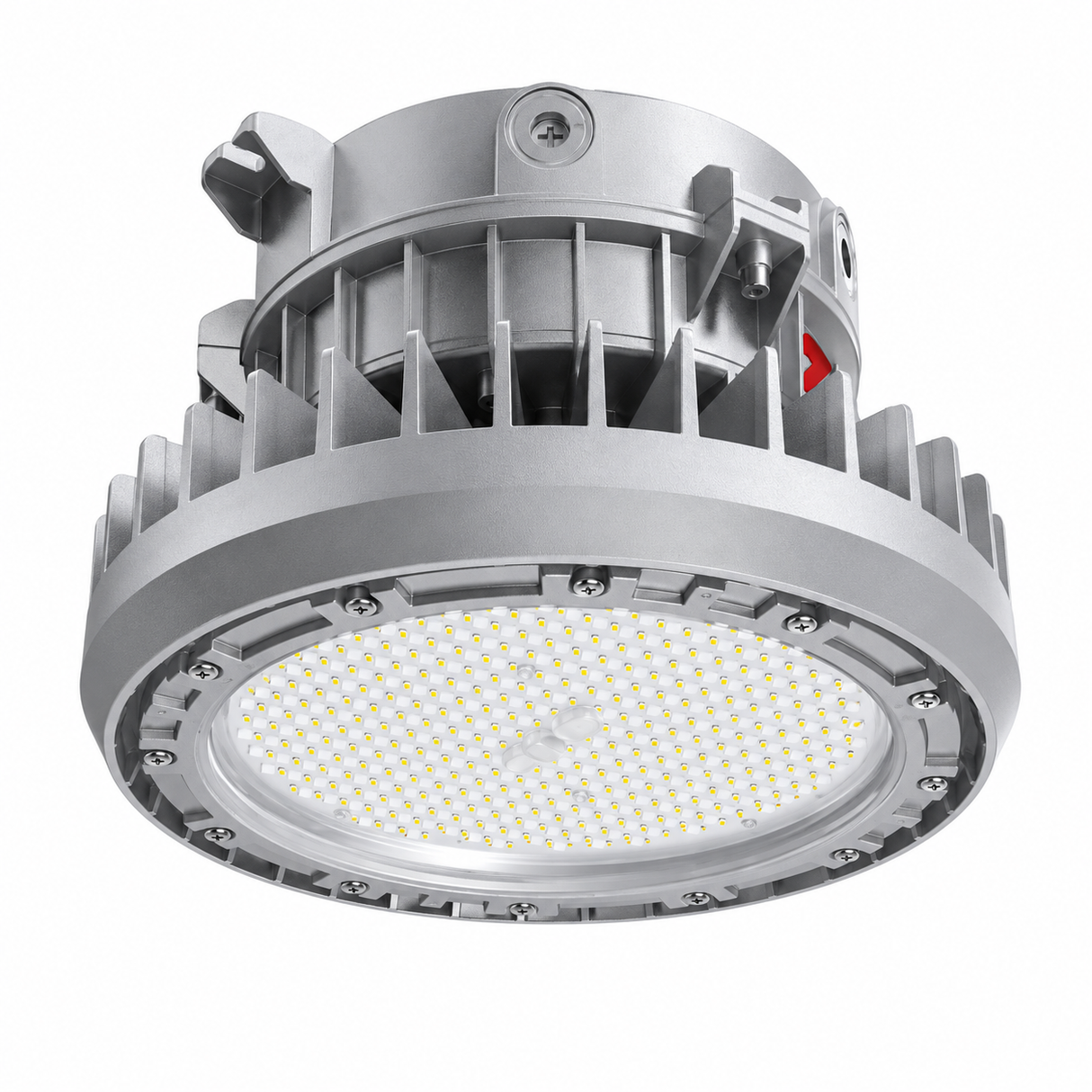

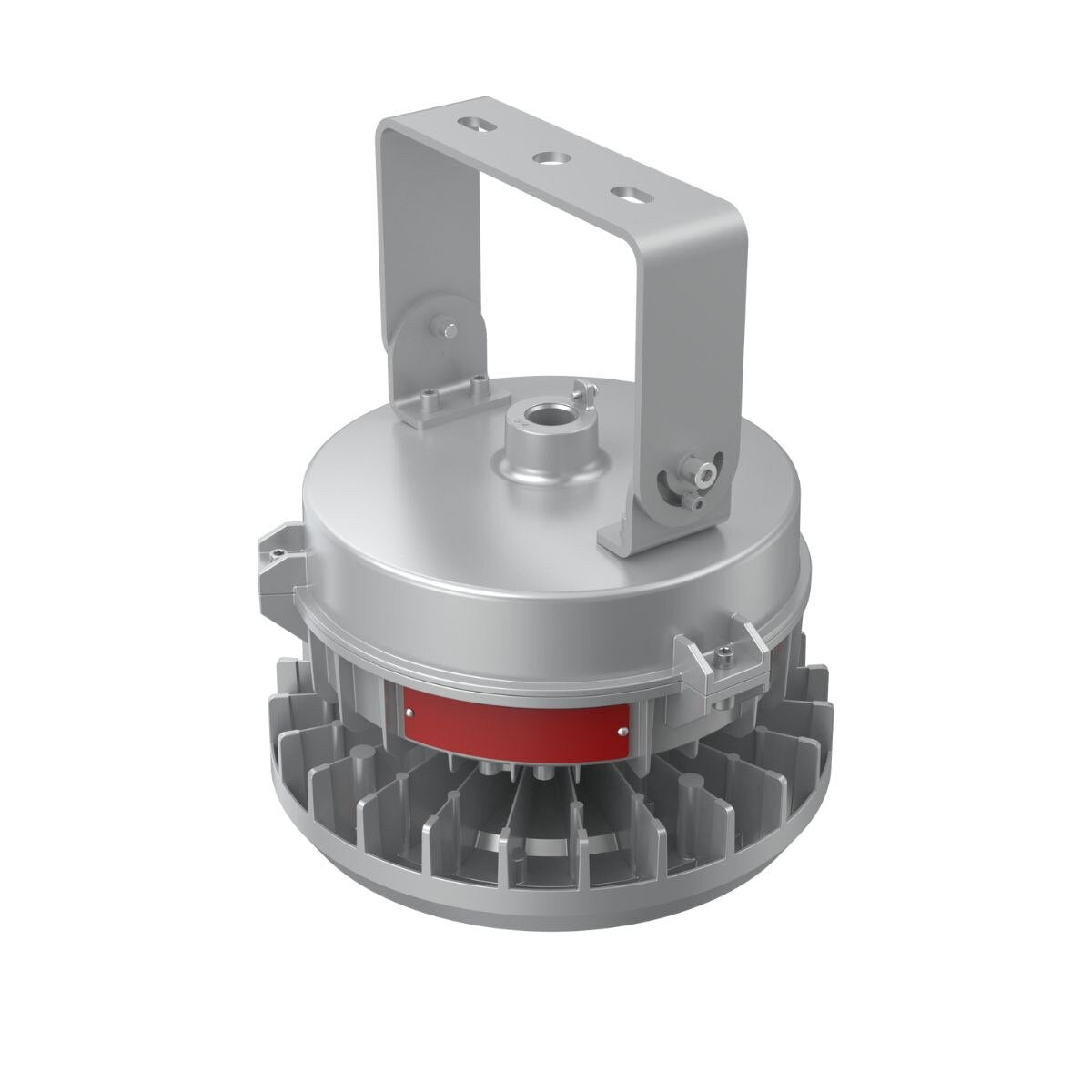

LEDone HB0271 HA05-100-U-50-000-CG-T-DM 100W LED Explosion-Proof Highbay Light 5000K Pendant and Trunnion Mount Included 100-277V

The LEDone HB0271 HA05-100-U-50-000-CG-T-DM is a rugged 100W LED explosion-proof highbay light engineered to provide dependable illumination in hazardous industrial environments. Delivering up to 13,500 lumens with an efficacy of 135 lumens per watt, this fixture features a fixed 5000K daylight color temperature, 70 CRI, and a wide 120° beam angle that produces bright, uniform illumination. Certified for Class I, Division 2 hazardous locations, it is ideal for warehouses, factories, workshops, petroleum and petrochemical facilities, gas stations, railways, ship ports, public security facilities, fire protection applications, and other demanding industrial environments.

Constructed from low-copper aluminum alloy with a durable powder-coated silver finish, the fixture incorporates a high-impact polycarbonate optical lens for long-lasting performance in harsh operating conditions. Operating on 100-277VAC power, it supports 1-10V dimming for flexible lighting control and features a 0.9 power factor with integrated 10kV line-to-line and 10kV line-to-earth surge protection for reliable electrical performance. The fixture provides instant start, produces no UV or IR radiation within the beam, and is designed for easy installation and maintenance. Both pendant and trunnion mounting hardware are included, while optional ceiling, wall bracket, and 25° stanchion mounting accessories provide additional installation flexibility.

Designed for dependable long-term service, the HA05 Series provides published LED life ratings of L80 96,395 hours and L70 153,225 hours under standard operating conditions. The fixture is backed by a 5-year limited warranty and features IP66 and IK08 protection against dust, water, and impact. Its T5 temperature classification, corrosion-resistant construction, and hazardous location certification make it an excellent lighting solution for facilities requiring safe, energy-efficient illumination in challenging environments.

Technical Performance Specifications
