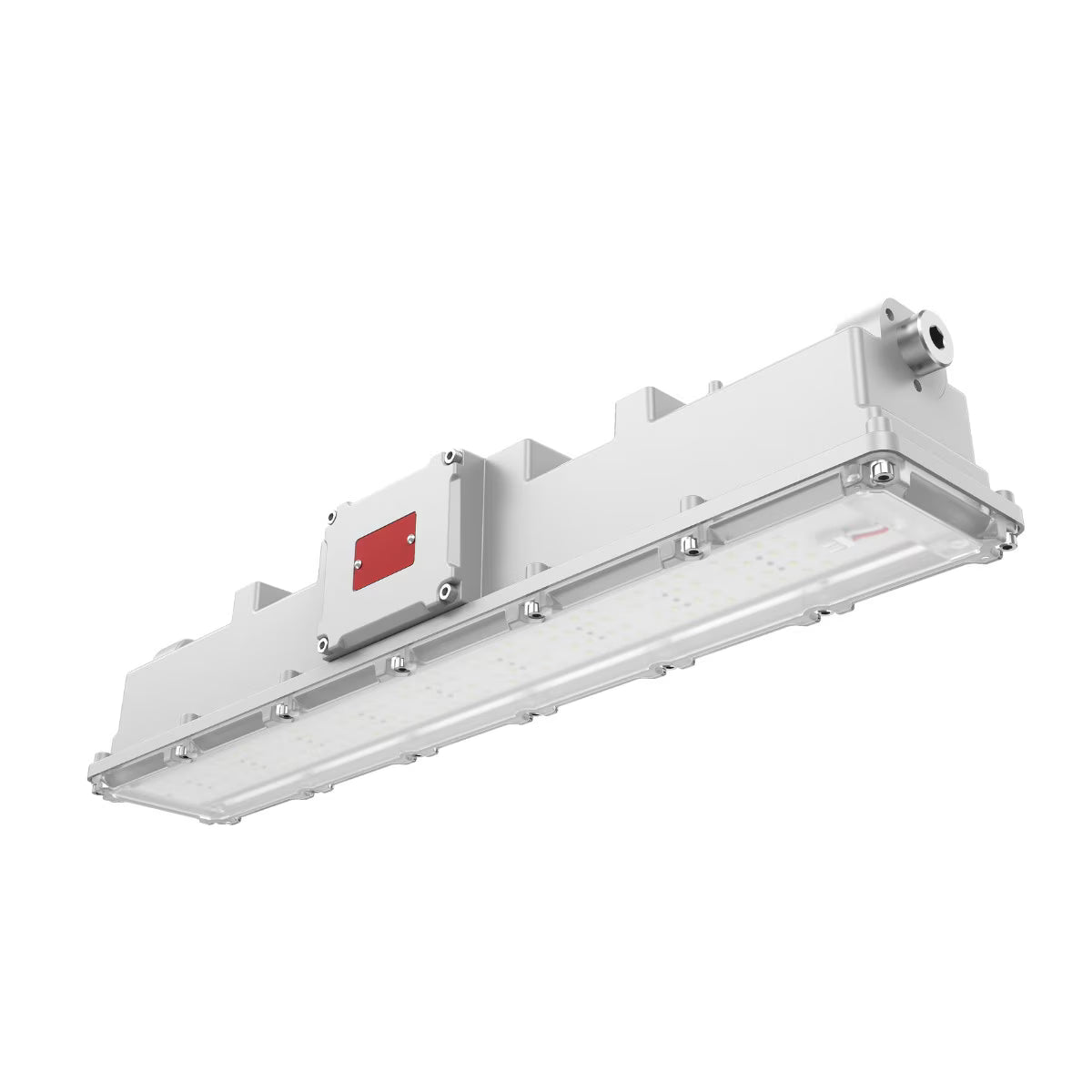

LEDONE HB0274 HA06-030-U-50-000-DP-P-DM 30W 2ft LED Explosion-Proof Highbay Light 5000K Pendant and Trunnion Mount Included 100-277V

Identification & Application

LEDone HB0274 HA06-030-U-50-000-DP-P-DM 30W 2ft LED Explosion-Proof Highbay Light 5000K Pendant and Trunnion Mount Included 100-277V

The LEDone HB0274 HA06-030-U-50-000-DP-P-DM is a rugged 30W, 2-foot LED explosion-proof highbay light engineered to deliver dependable illumination in hazardous industrial environments. Producing up to 4,800 lumens with an efficacy of 160 lumens per watt, this fixture features a fixed 5000K daylight color temperature, 70 CRI, and premium LED 3030 chips that provide bright, uniform illumination. Certified for Class I, Division 2 hazardous locations, it is ideally suited for warehouses, factories, workshops, petroleum and petrochemical facilities, gas stations, railways, ship ports, public security facilities, and fire protection applications.

Constructed with a fiberglass-reinforced polycarbonate housing and a diffused polycarbonate lens, this fixture is designed to withstand harsh industrial environments while providing excellent corrosion and impact resistance. Operating on 120-277VAC power, it supports smooth 1-10V dimming and features a 0.9 power factor for efficient operation. The sealed enclosure is rated IP66 and IK08 for superior protection against dust, water, and impact. Three 3/4-inch NPT cable entry ports, two stopping plugs, and concealed wiring simplify installation while maintaining hazardous location integrity. Both pendant and trunnion mounting hardware are included for flexible installation options.

Designed for dependable long-term service, the HA06 Series provides published LED life ratings of L90 77,000 hours, L80 175,200 hours, and L70 282,900 hours under standard operating conditions. The fixture is backed by a 5-year limited warranty and is engineered for easy installation and maintenance. Its robust non-metallic construction, high-efficiency optical system, and hazardous location certification make it an outstanding lighting solution for demanding industrial facilities where safety, reliability, and long operating life are essential.

Technical Performance Specifications
