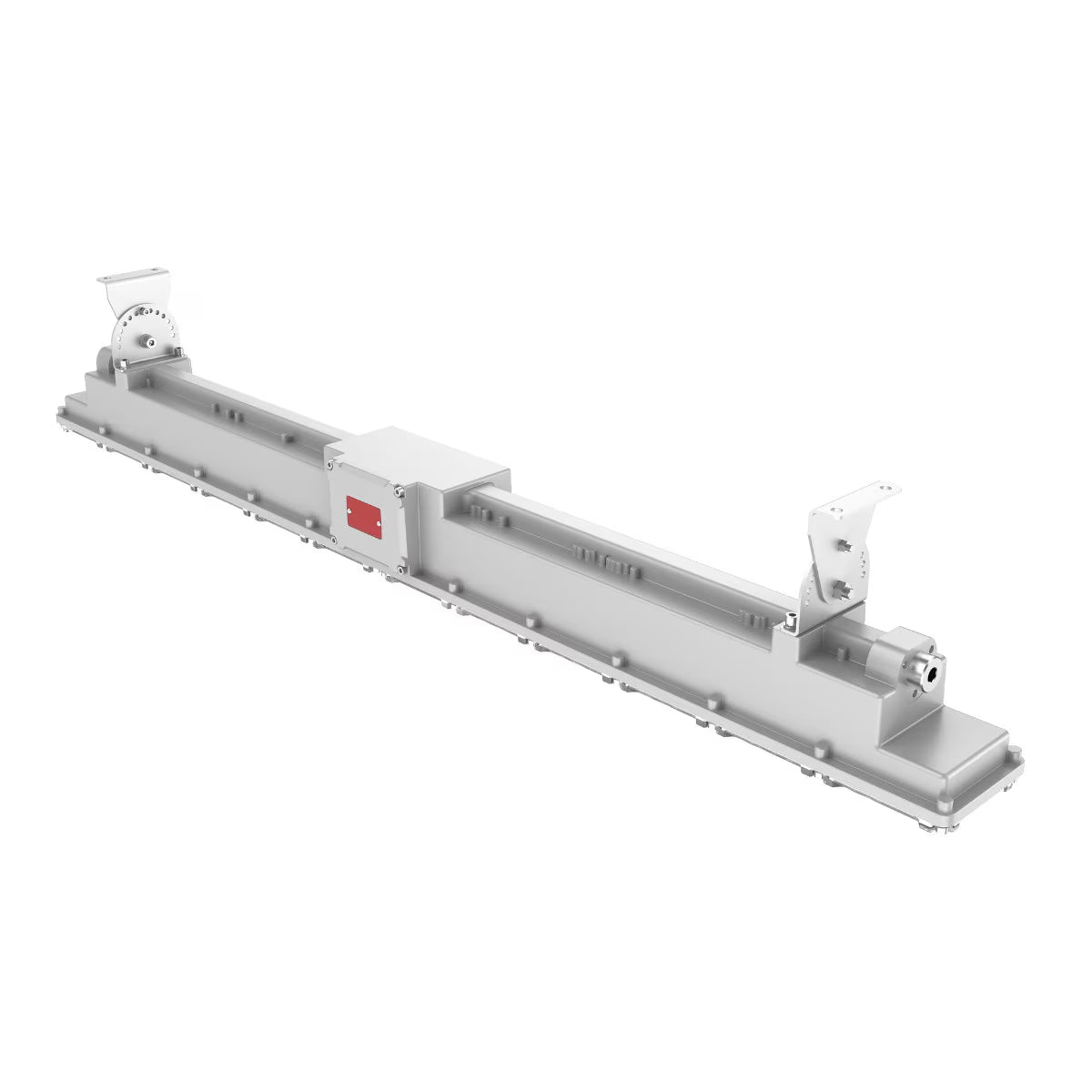

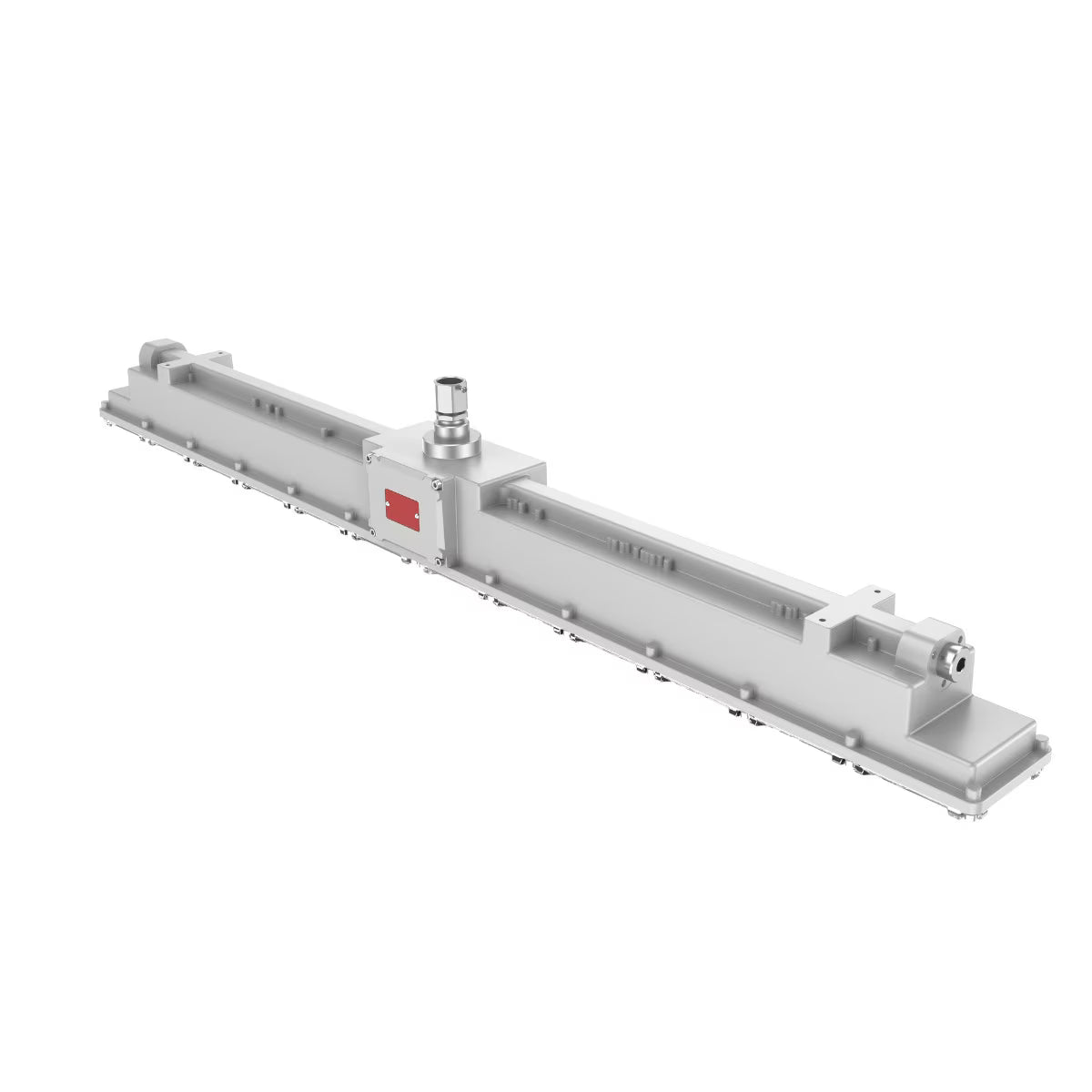

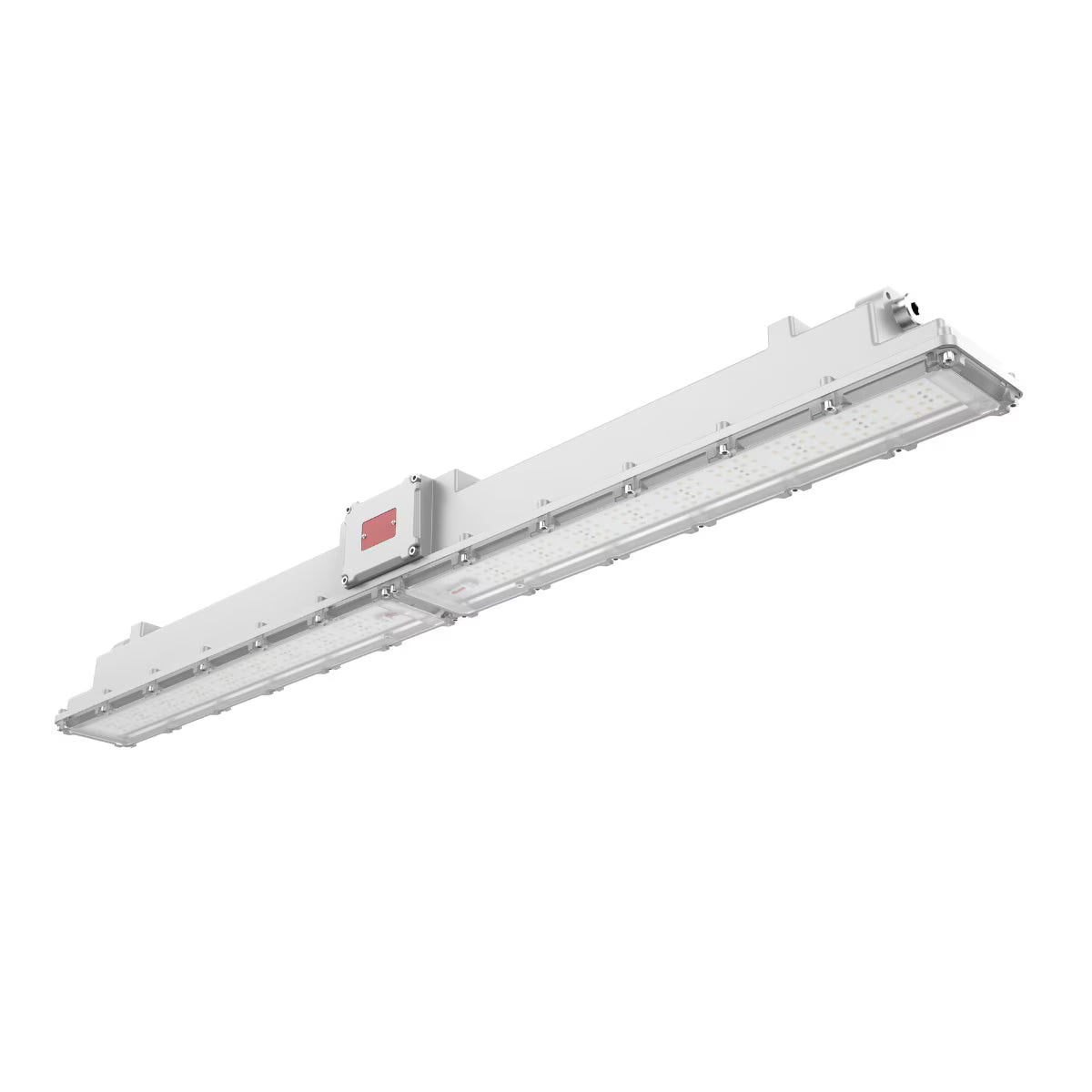

LEDONE HB0277 HA06-100-U-50-000-DP-P-DM 100W 4ft LED Explosion-Proof Highbay Light 5000K Pendant and Trunnion Mount Included 100-277V

Identification & Application

LEDone HB0277 HA06-100-U-50-000-DP-P-DM 100W 4ft LED Explosion-Proof Highbay Light 5000K Pendant and Trunnion Mount Included 100-277V

The LEDone HB0277 HA06-100-U-50-000-DP-P-DM is a rugged 100W, 4-foot LED explosion-proof highbay light engineered to deliver reliable illumination in hazardous industrial environments. Producing up to 16,000 lumens with an efficacy of 160 lumens per watt, this fixture features a fixed 5000K daylight color temperature, 70 CRI, and premium LED 3030 chips for bright, uniform light distribution. Certified for Class I, Division 2, Groups A, B, C, and D hazardous locations, it is ideal for warehouses, factories, workshops, petroleum and petrochemical facilities, gas stations, railways, ship ports, public security facilities, and fire protection applications.

Constructed with a fiberglass-reinforced polycarbonate housing and a diffused polycarbonate lens, the fixture is built to withstand harsh industrial environments while resisting corrosion, dust, water, and impact. Operating on 120-277VAC power, it supports smooth 1-10V dimming and features a 0.9 power factor for energy-efficient operation. Three 3/4-inch NPT cable entries, two stopping plugs, and concealed wiring simplify installation while maintaining the integrity of the sealed enclosure. Both pendant and trunnion mounting hardware are included for flexible installation.

Designed for dependable long-term service, the HA06 Series delivers published LED life ratings of L90 at 77,000 hours, L80 at 175,200 hours, and L70 at 282,900 hours under standard operating conditions. The fixture carries IP66 and IK08 protection ratings and is backed by a 5-year limited warranty. Its robust construction, high-efficiency optical system, and hazardous-location certification make it an excellent lighting solution for demanding industrial applications requiring safety, reliability, and long service life.

Technical Performance Specifications
