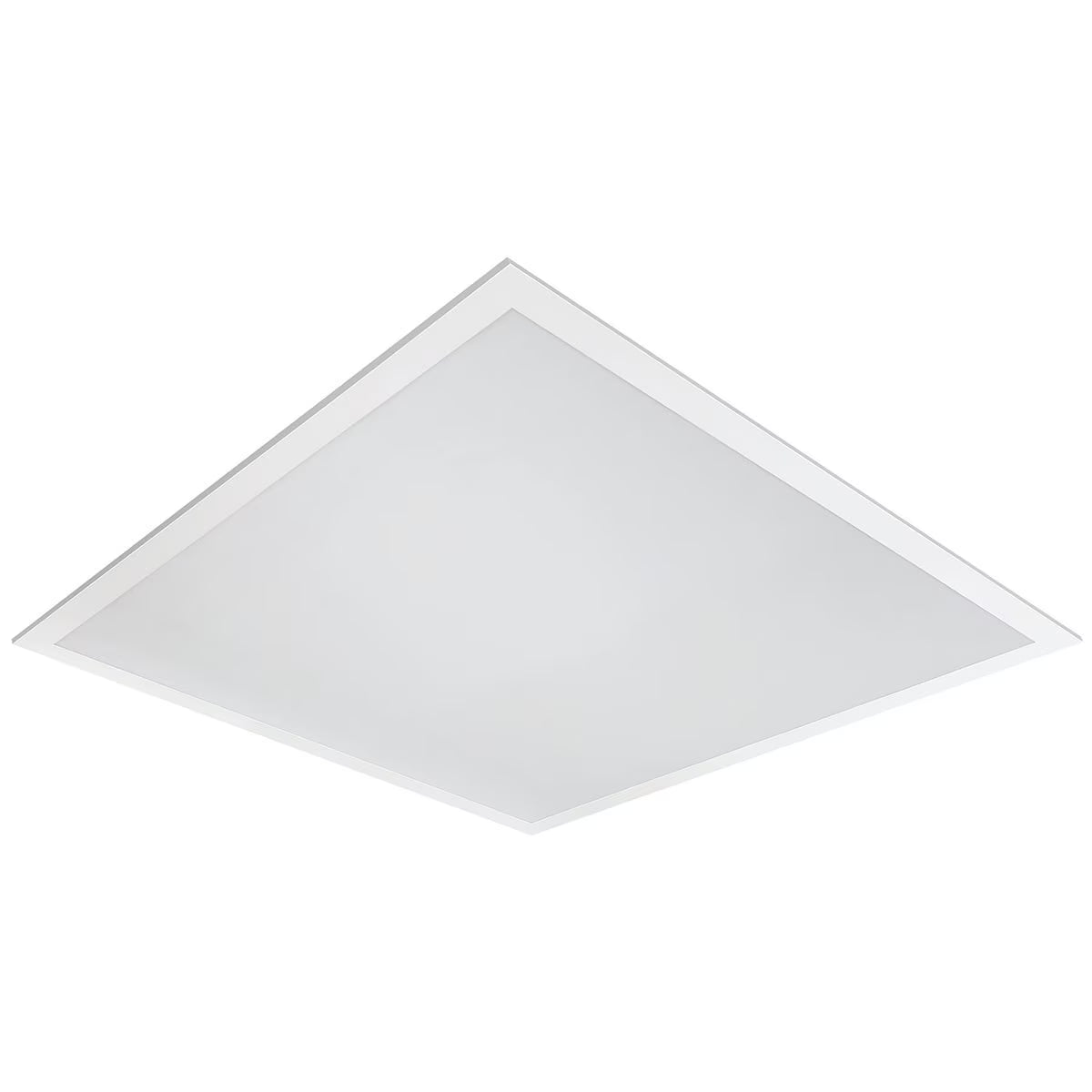

LEDONE PL0191 LOC-22BLPL-MWMCCT-HL-EM 15/19/24/29W 2x2ft LED Back-Lit Panel Light 3500K/4000K/5000K with Emergency Battery 120-277V

Identification & Application

LEDone PL0191 LOC-22BLPL-MWMCCT-HL-EM 15/19/24/29W 2x2ft LED Back-Lit Panel Light 3500K/4000K/5000K with Emergency Battery 120-277V

The LEDone LOC-22BLPL-MWMCCT-HL-EM is a commercial-grade 2x2 LED Back-Lit Panel Light with an integrated emergency battery, designed to provide dependable illumination during both normal operation and power outages. Featuring field-selectable 15W, 19W, 24W, and 29W power settings together with selectable 3500K, 4000K, and 5000K color temperatures, this versatile fixture allows installers to customize both light output and color temperature from a single panel. Producing up to 3,668.5 lumens with efficacy up to 126.5 lumens per watt, an 83.1 CRI, and a wide 120° beam angle, it delivers bright, glare-free, and flicker-free lighting for warehouses, schools, factories, offices, supermarkets, logistics centers, exhibition halls, and other commercial applications.

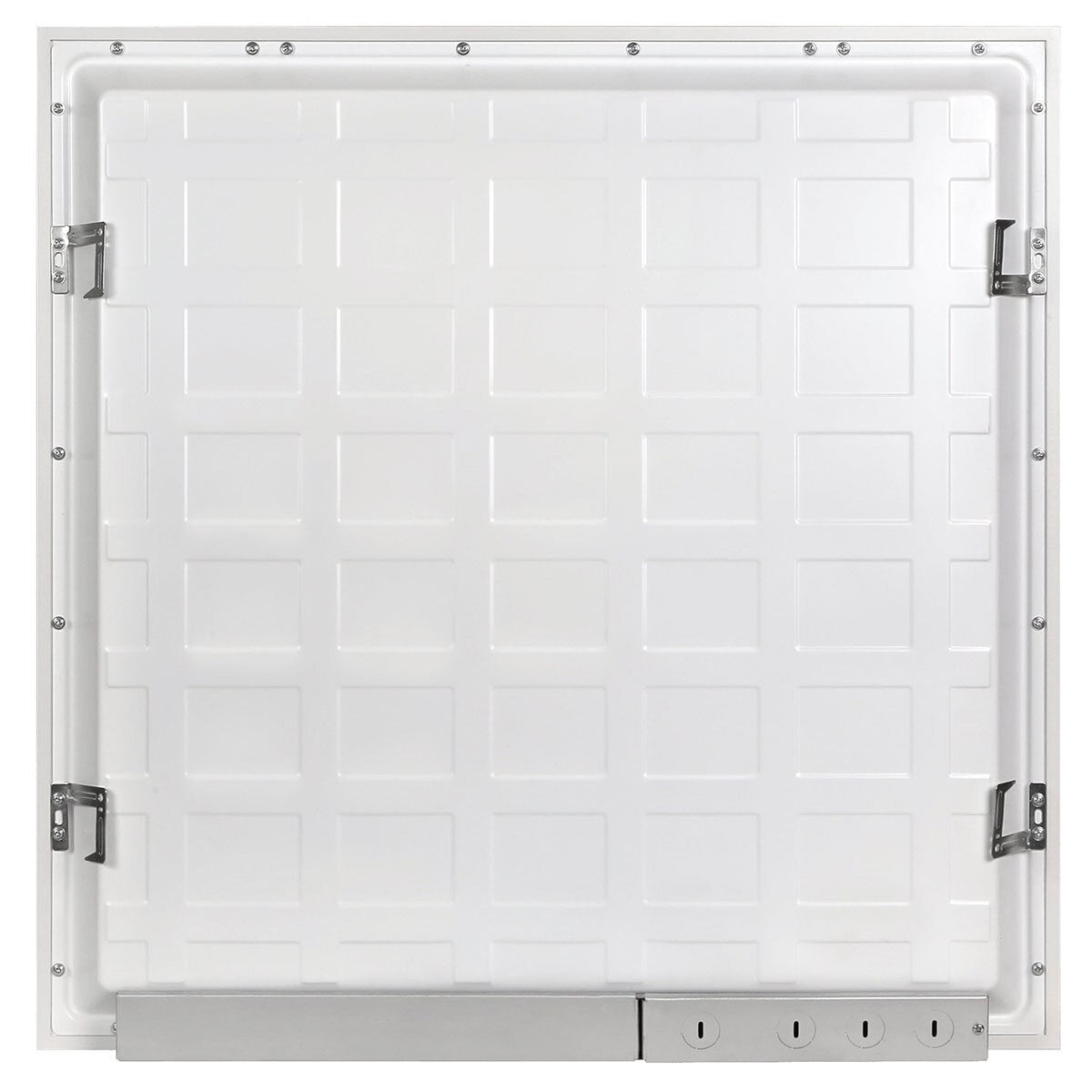

Constructed with a durable steel and aluminum frame and a premium PMMA lens that resists yellowing, the entire fixture functions as a heat sink to keep the Lumiled 2835 LED chips cooler for improved longevity and consistent performance. Operating from a universal 120-277V input, the fixture includes standard 0-10V dimming and is compatible with most LED dimmers for smooth lighting control. Installation is quick and flexible using standard T-bar and narrow grid drop ceilings, as well as optional surface mount, recessed mount, or hanging kits.

Designed for demanding commercial environments, the LOC-22BLPL-MWMCCT-HL-EM is IP20 rated for dry locations and delivers up to 100,000 hours of reliable service. The integrated 15W emergency battery automatically provides emergency illumination during power interruptions, helping improve occupant safety and support emergency egress requirements. Backed by a 5-year limited warranty, this energy-efficient LED panel is ideal for both retrofit and new construction projects.

Technical Performance Specifications
