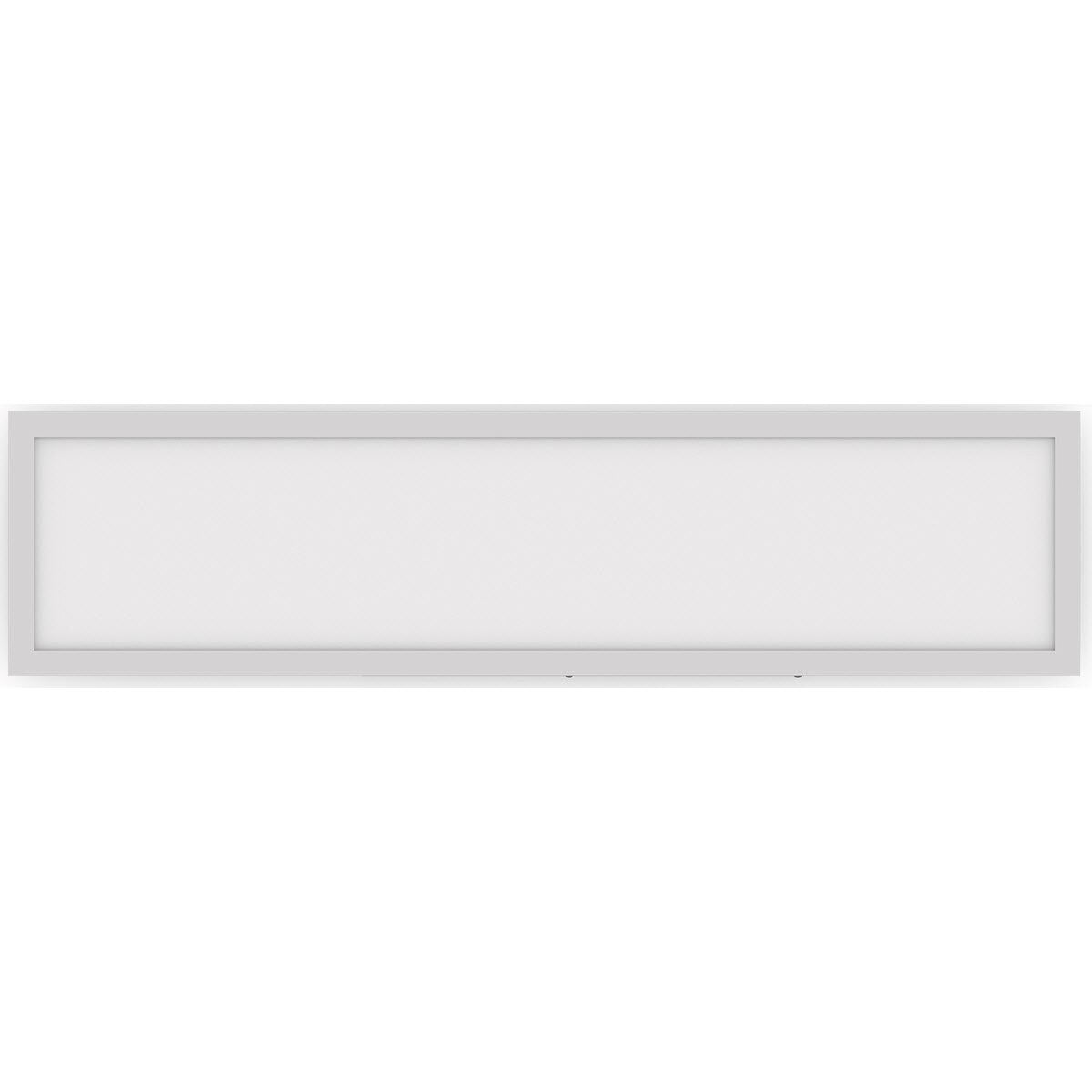

LEDONE PL0199 LOC-14AJPL-MW(20/25/30)MCCT(35/40/50)D 20/25/30W 1x4ft LED Back-Lit Panel Light 3500K/4000K/5000K 120-277V

Identification & Application

LEDone PL0199 LOC-14AJPL-MW(20/25/30)MCCT(35/40/50)D 20/25/30W 1x4ft LED Back-Lit Panel Light 3500K/4000K/5000K 120-277V

The LEDone LOC-14AJPL-MW(20/25/30)MCCT(35/40/50)D is a commercial-grade 1x4 LED Back-Lit Panel Light designed to deliver exceptional energy efficiency, uniform illumination, and dependable long-term performance. Featuring field-selectable 20W, 25W, and 30W power settings together with selectable 3500K, 4000K, and 5000K color temperatures, this versatile panel allows installers to customize both light output and color temperature from a single fixture. Producing up to 3,750 lumens with efficacy up to 125 lumens per watt, an 83.1 CRI, and a wide 120° beam angle, it provides bright, glare-free, and flicker-free illumination for warehouses, schools, factories, offices, supermarkets, logistics centers, and exhibition halls.

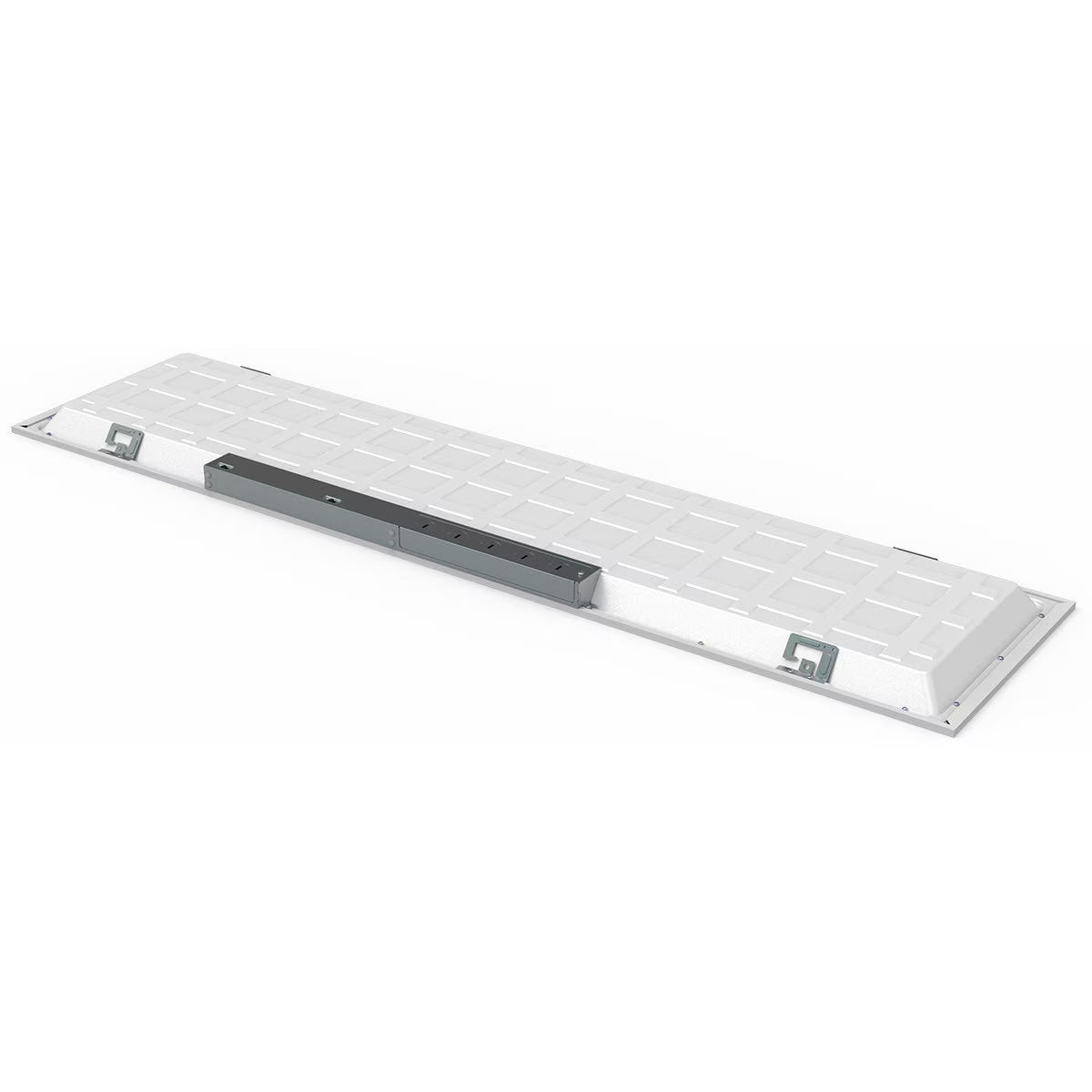

Constructed with a durable steel and aluminum frame and a high-quality PMMA lens designed to resist yellowing, the entire fixture functions as a heat sink to keep the Samsung 2835 LED chips cooler, extending fixture life and maintaining consistent performance. Operating from a universal 120-277V input, the fixture includes standard 0-10V dimming and is compatible with most LED dimmers for smooth lighting control. Installation is simple using standard T-bar ceilings, recessed mounting kits, surface mount kits, or suspension mounting systems, making it suitable for both new construction and retrofit applications.

Built for demanding commercial environments, the LOC-14AJPL-MW(20/25/30)MCCT(35/40/50)D is rated for dry locations with an IP20 enclosure and delivers up to 50,000 hours of dependable operation. Backed by a 5-year limited warranty, this LED panel offers long-term energy savings while reducing maintenance costs. Optional emergency battery backup and emergency driver mounting T-bar kits provide additional flexibility for code-compliant commercial lighting installations.
