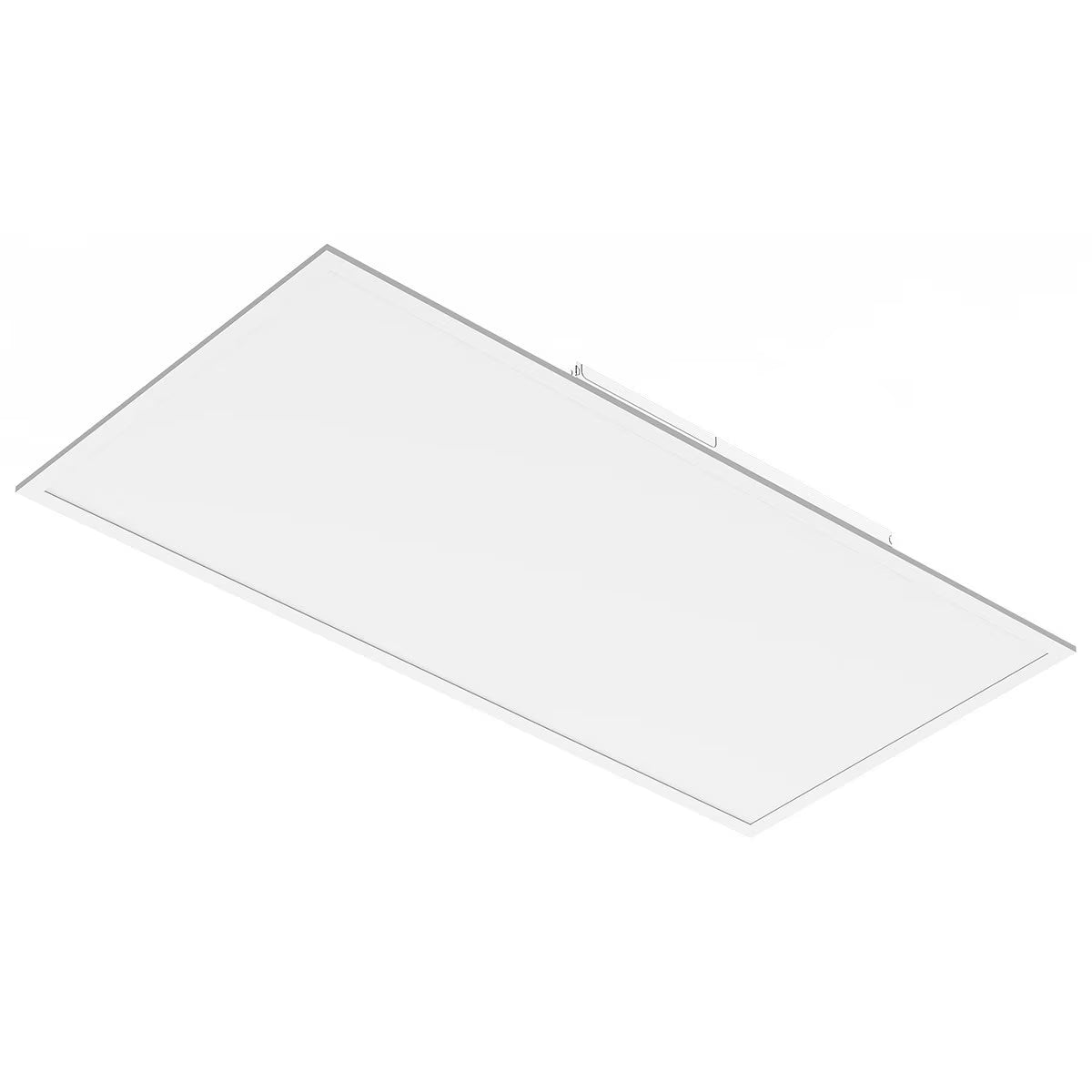

LEDONE PL0207 LOC-24AJPL-MW(30/40/50)MCCT(35/40/50)D-V2 30/40/50W 2x4ft LED Back-Lit Panel Light 3500K/4000K/5000K 120-277V [2-Pack]

Identification & Application

LEDone PL0207 LOC-24AJPL-MW(30/40/50)MCCT(35/40/50)D-V2 30/40/50W 2x4ft LED Back-Lit Panel Light 3500K/4000K/5000K 120-277V [2-Pack]

The LEDone LOC-24AJPL-MW(30/40/50)MCCT(35/40/50)D-V2 is a commercial-grade 2x4 LED Back-Lit Panel Light engineered to deliver exceptional energy efficiency, uniform illumination, and dependable long-term performance. Featuring field-selectable 30W, 40W, and 50W power settings together with selectable 3500K, 4000K, and 5000K color temperatures, this versatile panel allows installers to customize both light output and color temperature from a single fixture. Producing up to 6,250 lumens with efficacy up to 125 lumens per watt, an 84 CRI, and a wide 120° beam angle, it provides bright, glare-free, and flicker-free illumination for warehouses, schools, factories, offices, supermarkets, logistics centers, exhibition halls, and other commercial environments.

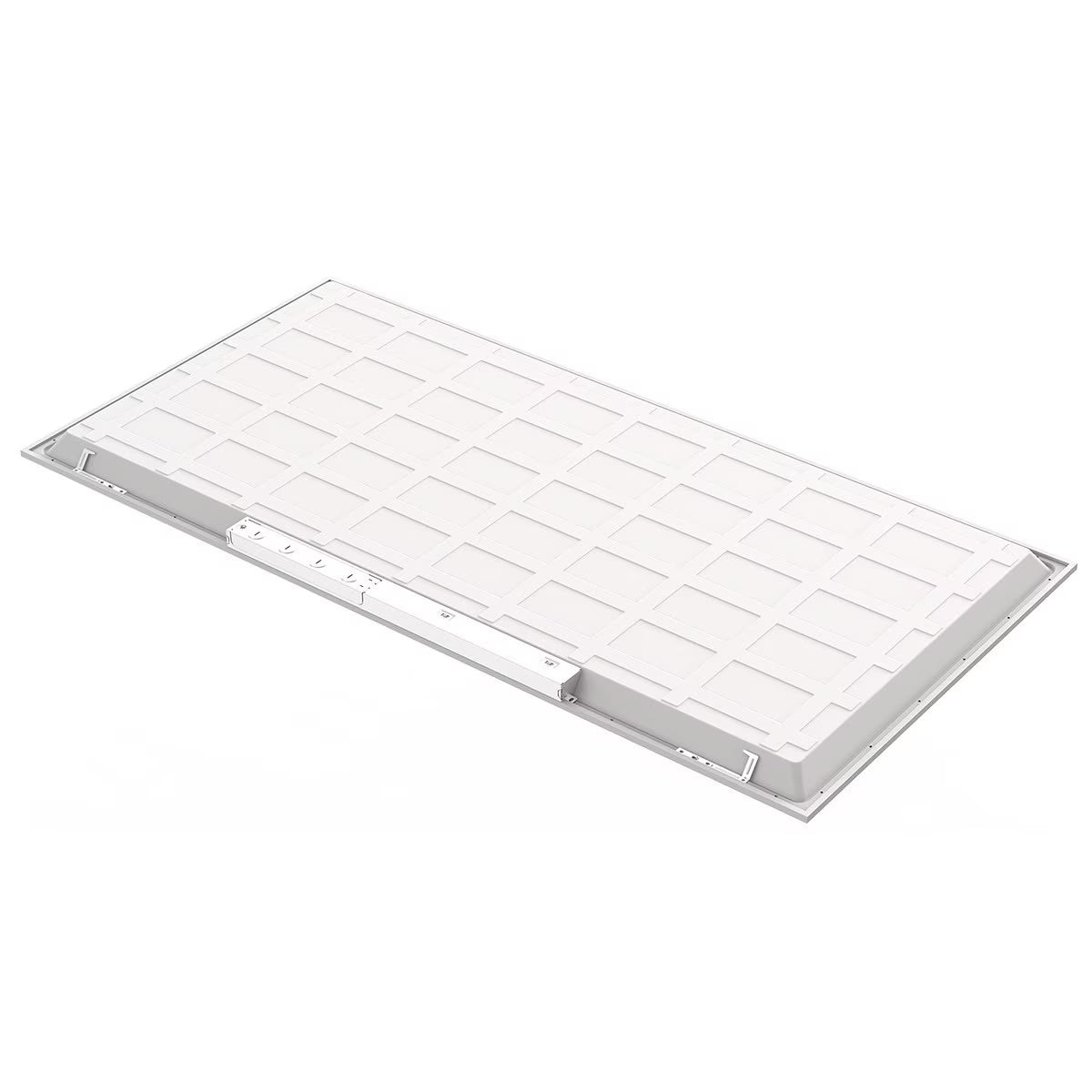

Constructed with a durable steel and aluminum frame and a premium PMMA lens that resists yellowing, the entire fixture functions as a heat sink to keep the Samsung 2835 LED chips cooler, extending fixture life and maintaining consistent performance. Operating from a universal 120-277V input, the fixture includes standard 0-10V dimming and is compatible with most LED dimmers for smooth lighting control. Installation is simple using standard T-bar ceilings, recessed mounting kits, surface mount kits, or suspension mounting systems, making it ideal for both new construction and retrofit applications. A TAA Compliant option is also available for qualifying projects.

Designed for demanding commercial environments, the LOC-24AJPL-MW(30/40/50)MCCT(35/40/50)D-V2 is IP20 rated for dry locations and delivers up to 50,000 hours of reliable operation. Backed by a 5-year limited warranty, this energy-efficient LED panel helps reduce maintenance costs while providing dependable performance for years to come. Optional emergency battery backup, emergency driver mounting T-bar kits, and hanging kits provide additional installation flexibility. This package includes 2 LED panel lights.

Technical Performance Specifications
