LEDONE PL0217 LOC-6FRFD-12WMCCT(27/30/35/40/50) 12W 6-Inch LED Ultra Thin Round Downlight Fire Rated 2700K/3000K/3500K/4000K/5000K 120V

Identification & Application

LEDone PL0217 LOC-6FRFD-12WMCCT(27/30/35/40/50) 12W 6-Inch LED Ultra Thin Round Downlight Fire Rated 2700K/3000K/3500K/4000K/5000K 120V

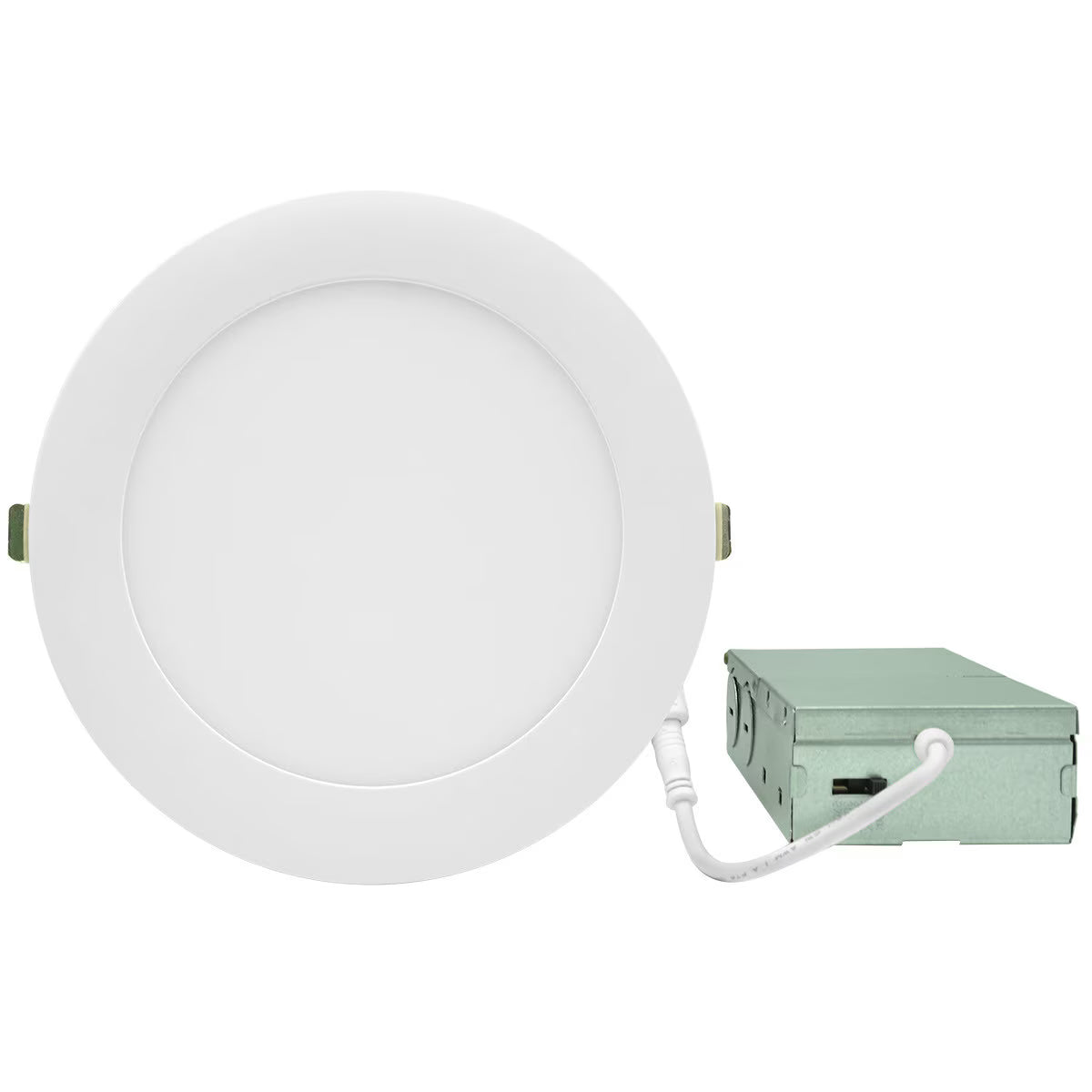

The LEDone LOC-6FRFD-12WMCCT(27/30/35/40/50) is a 6-inch ultra-thin fire-rated LED downlight engineered for residential and commercial applications where fire-rated ceiling assemblies are required. Operating on 120V input, the fixture delivers 984 lumens while providing five field-selectable color temperatures of 2700K, 3000K, 3500K, 4000K, and 5000K, allowing installers to select the ideal light color during installation. It is well suited for kitchens, bedrooms, bathrooms, corridors, hallways, museums, offices, and other interior spaces.

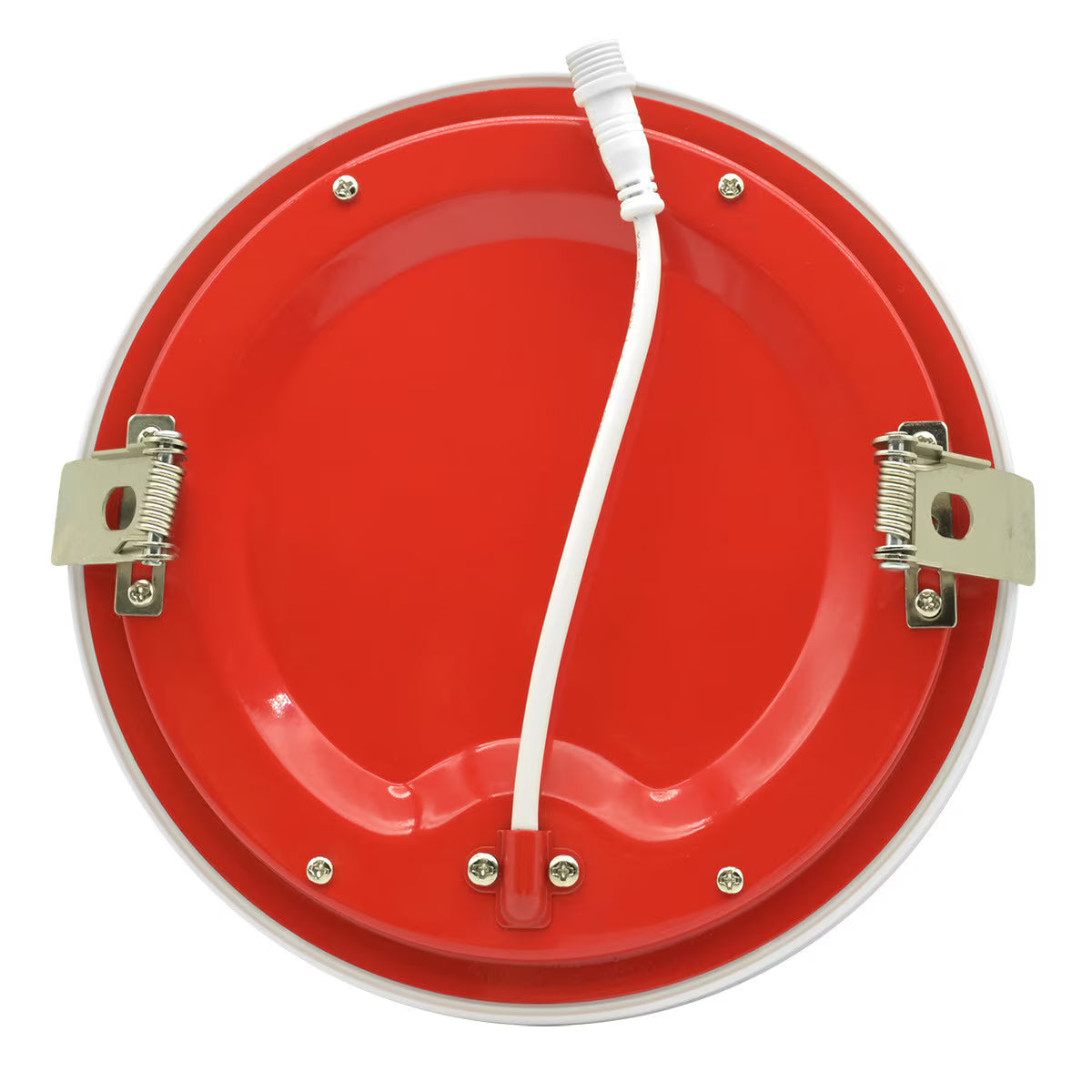

Constructed with a rugged aluminum and steel casing, the fixture features a frosted lens that delivers smooth, uniform illumination through a wide 120° beam angle. Designed for code-compliant fire-rated ceiling installations of up to 2 hours, the fixture is Type IC Airtight, wet-location rated, and installs quickly using torsion spring clips. TRIAC dimming, instant-on performance, and flicker-free operation provide dependable lighting performance for both new construction and retrofit projects.

Built for long-term reliability, the LOC-6FRFD-12WMCCT(27/30/35/40/50) is rated for 50,000 hours of operation and backed by a 5-year limited warranty. The fixture is ENERGY STAR certified, ETL Listed, JA8 Title 24 compliant, and supports the optional LOC-EMDR-25WHV emergency battery for emergency lighting applications.

Technical Performance Specifications
