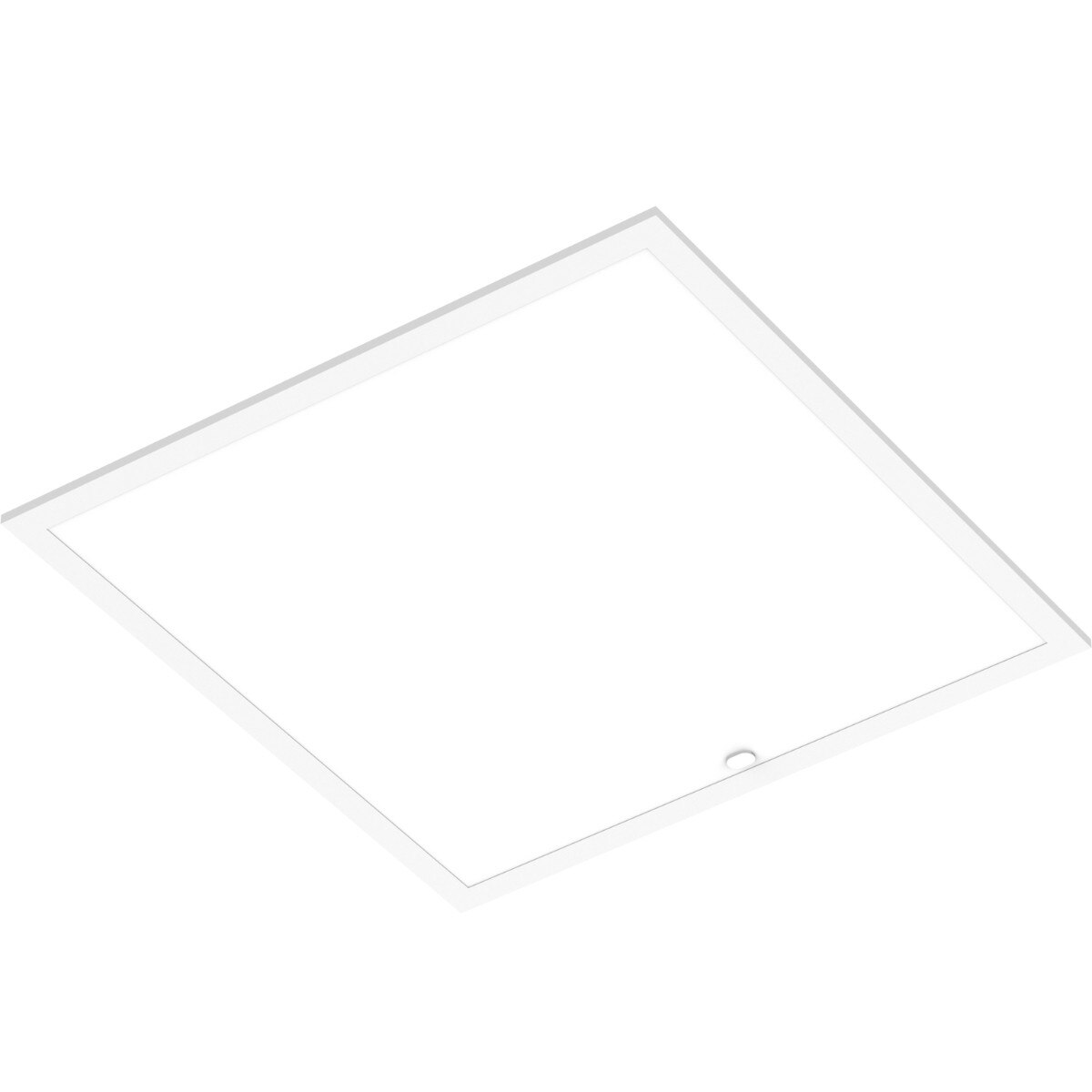

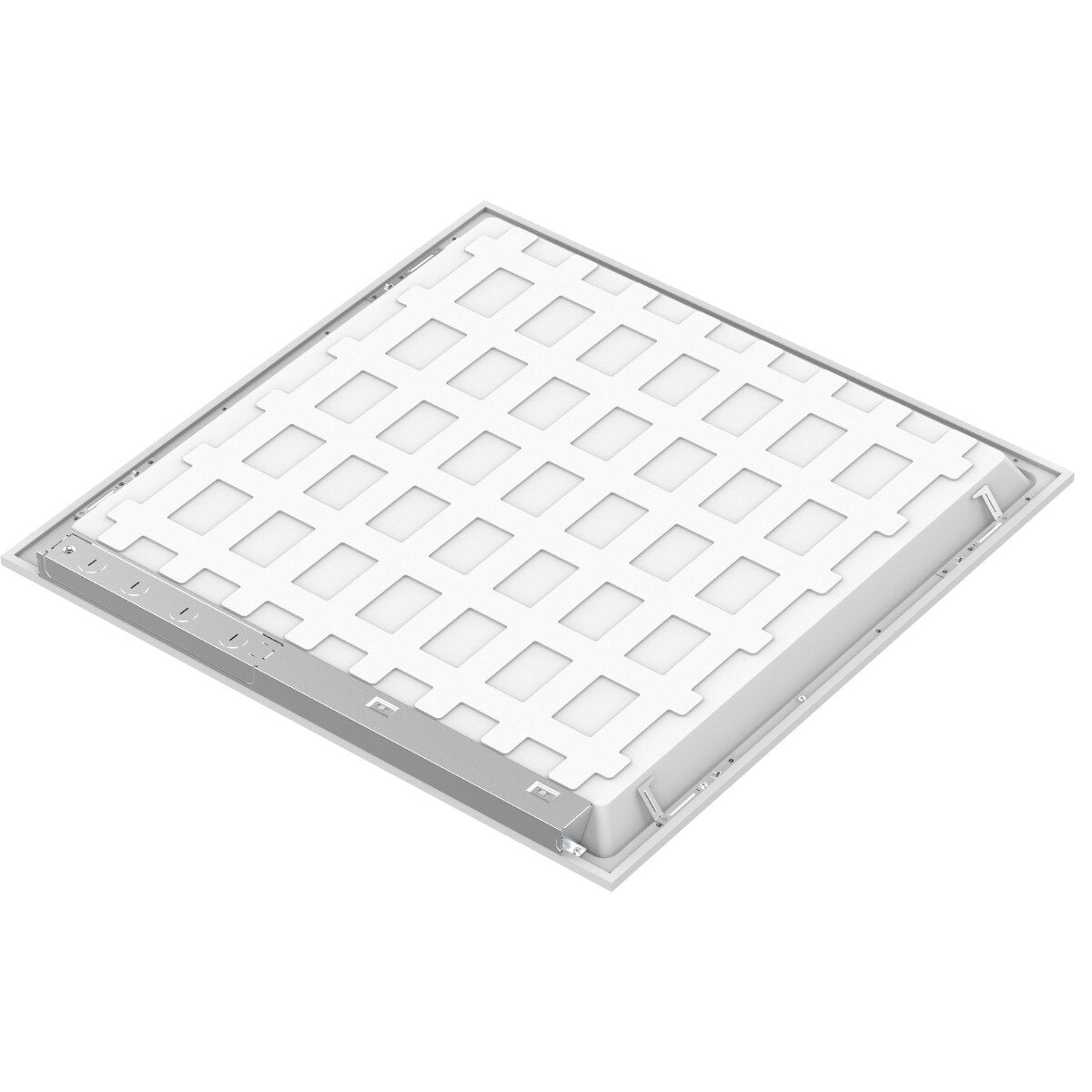

LEDONE PL0221 LOC-22AJPL-MW(20/25/30)MCCT(35/40/50)D-V2 20/25/30W 2x2ft LED Back-Lit Panel Light 3500K/4000K/5000K Sensor Ready 120-277V

$48.00
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Product Information

SKU
PL0221
Barcode 00810050947824

PRODUCT SPEC SHEET DOWNLOAD

Spec Sheet View Spec Sheet

Description

Identification & Application

LEDone PL0221 LOC-22AJPL-MW(20/25/30)MCCT(35/40/50)D-V2-MS 20/25/30W 2x2ft LED Back-Lit Panel Light 3500K/4000K/5000K Sensor Ready 120-277V

The LEDone LOC-22AJPL-MW(20/25/30)MCCT(35/40/50)D-V2-MS is a commercial-grade 2x2 LED Back-Lit Panel Light engineered for sensor-ready operation, outstanding energy efficiency, and dependable long-term performance. Featuring field-selectable 20W, 25W, and 30W power settings together with selectable 3500K, 4000K, and 5000K color temperatures, this versatile fixture allows installers to customize both light output and color temperature from a single panel. Producing up to 3,750 lumens with efficacy up to 125 lumens per watt, an 80 CRI, and a wide 120° beam angle, it delivers glare-free, uniform illumination for warehouses, schools, factories, offices, supermarkets, logistics centers, exhibition halls, and other commercial environments.

Constructed with a durable aluminum frame finished in matte white and paired with a PMMA diffuser, this fixture provides clean, even light distribution while maintaining a modern architectural appearance. Operating from a universal 120-277V input, the panel includes standard 0-10V dimming and is compatible with most LED dimmers. The integrated sensor-ready port allows for quick installation of compatible occupancy sensors, including the optional PIR Sensor with Bluetooth capability, making the fixture ideal for energy-saving lighting control systems.

Designed for reliable commercial operation, the LOC-22AJPL-MW(20/25/30)MCCT(35/40/50)D-V2-MS is IP20 rated for dry locations and delivers an impressive 100,000-hour rated life to reduce maintenance costs. Backed by a 5-year limited warranty, this sensor-ready LED panel offers dependable performance for both retrofit and new construction projects while supporting optional emergency drivers and advanced lighting controls.

Technical Performance Specifications

Brand LEDone
SKU / MPN PL0221 / LOC-22AJPL-MW(20/25/30)MCCT(35/40/50)D-V2-MS
Product Type 2x2 LED Multi-Watt Multi-CCT Sensor Ready Back-Lit Panel Light
Electrical Selectable Wattages: 20W / 25W / 30W; 120-277V; 0-10V Dimming; Power Factor: 0.90; THD: 20%; Operating Temperature: -20°C to 45°C (-4°F to 113°F)
Optical Selectable CCT: 3500K / 4000K / 5000K; 2,500 / 3,125 / 3,750 Lumens; 125 lm/W; CRI 80; 120° Beam Angle; Glare-Free Lighting
Equivalent Wattage Replaces up to 150W HID Fixtures
Controls Sensor Ready; Compatible with Optional PIR Sensor with Bluetooth; 0-10V Dimming
Mechanical Aluminum Frame; Matte White Finish; PMMA Diffuser; IP20 Rated; Sensor-Ready Design
Dimensions 23.74 in. Length × 23.74 in. Width × 1.42 in. Height
Operating Temperature -20°C to 45°C (-4°F to 113°F)
Lifecycle 100,000 Hour Rated Life; 5-Year Limited Warranty
Applications Warehouses, Schools, Factories, Offices, Supermarkets, Logistics Centers, Exhibition Halls, and General Commercial Lighting
Accessories Surface Mount Kit; Recessed Mount Kit; LOC-EMDR-25WLI-190 Emergency Driver; LOC-EMDR-8WLI-170-V2 Emergency Driver; LOC-ACY-S-PIRS-02-G2 PIR Sensor with Bluetooth Option
Case Quantity 1 Fixture
Documentation See spec sheet.
