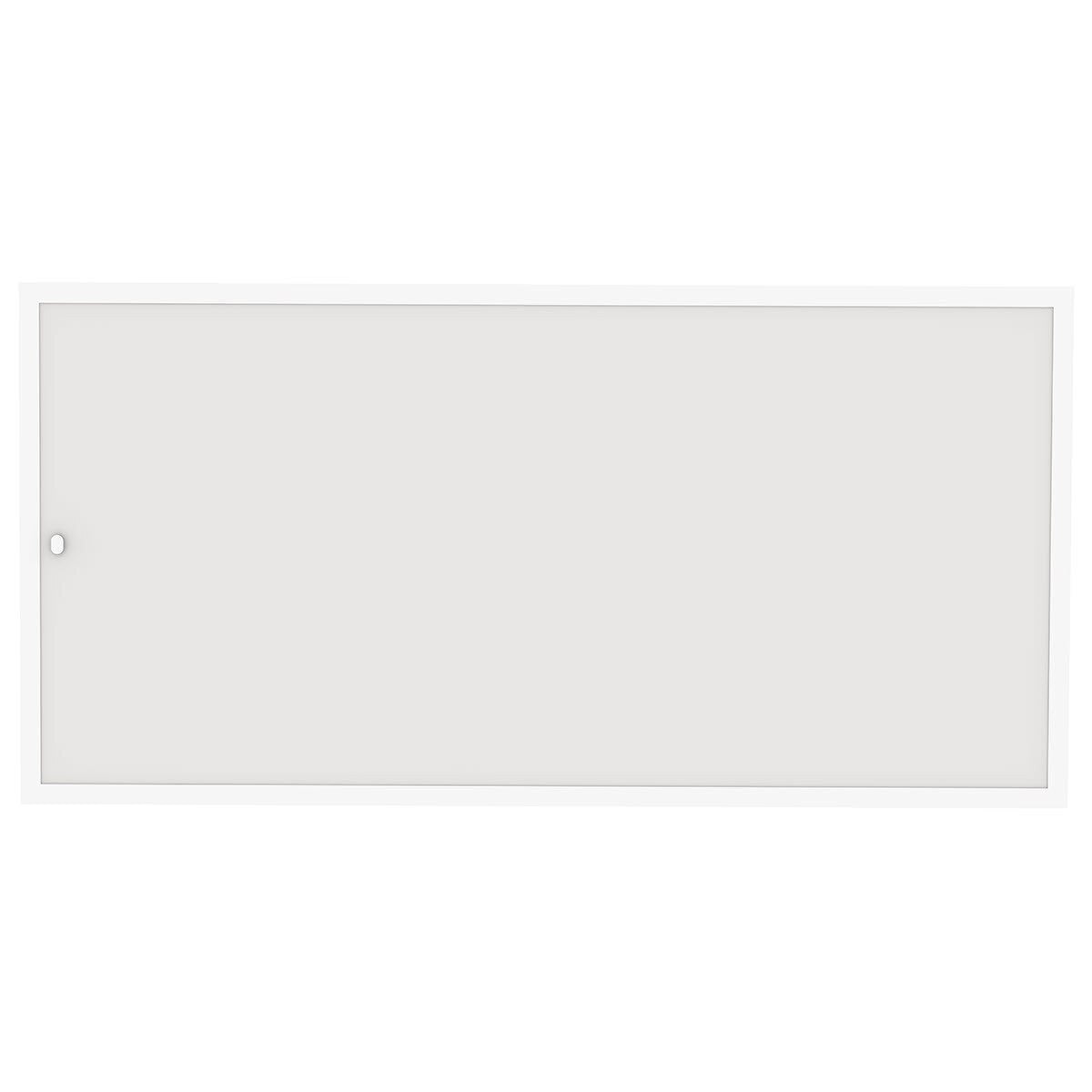

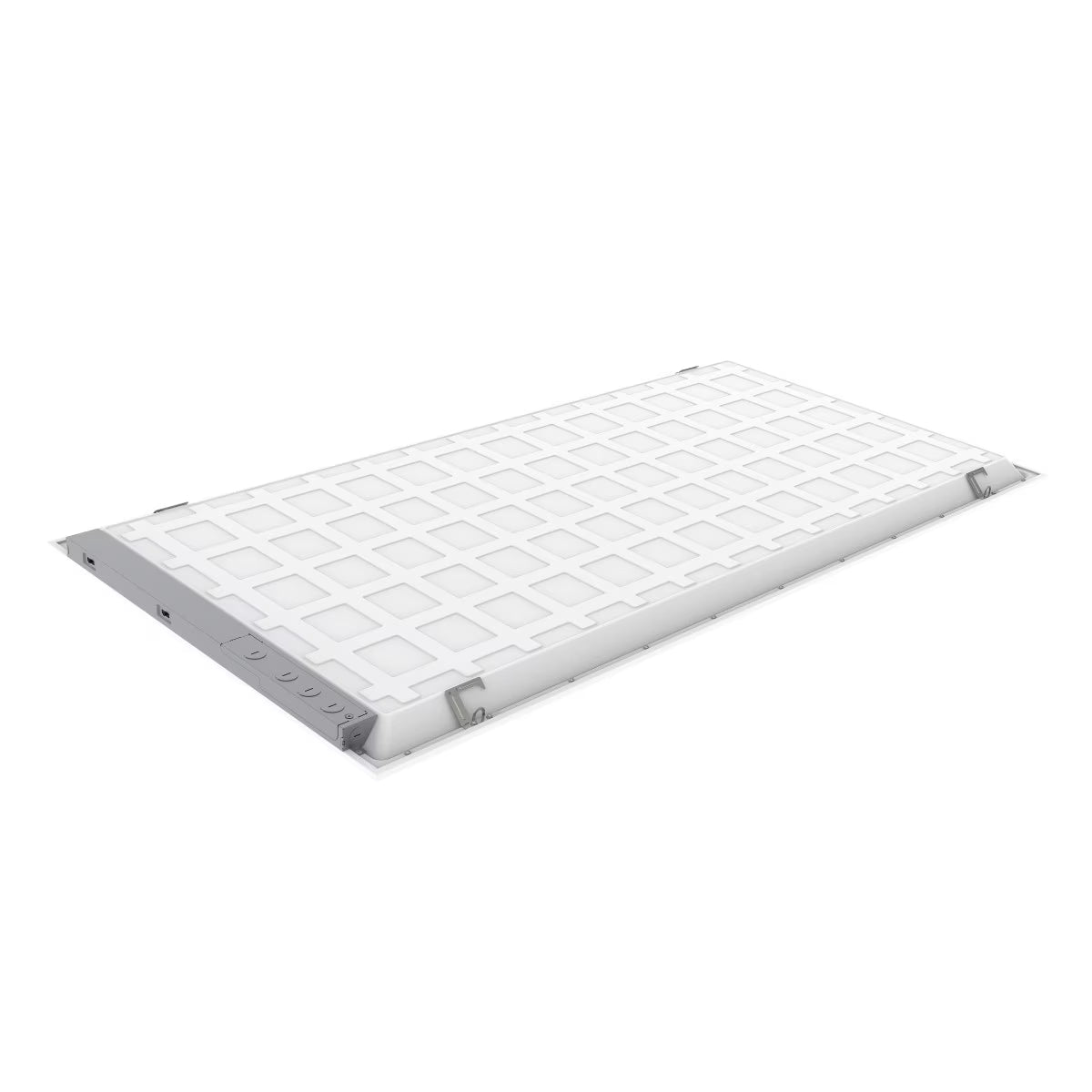

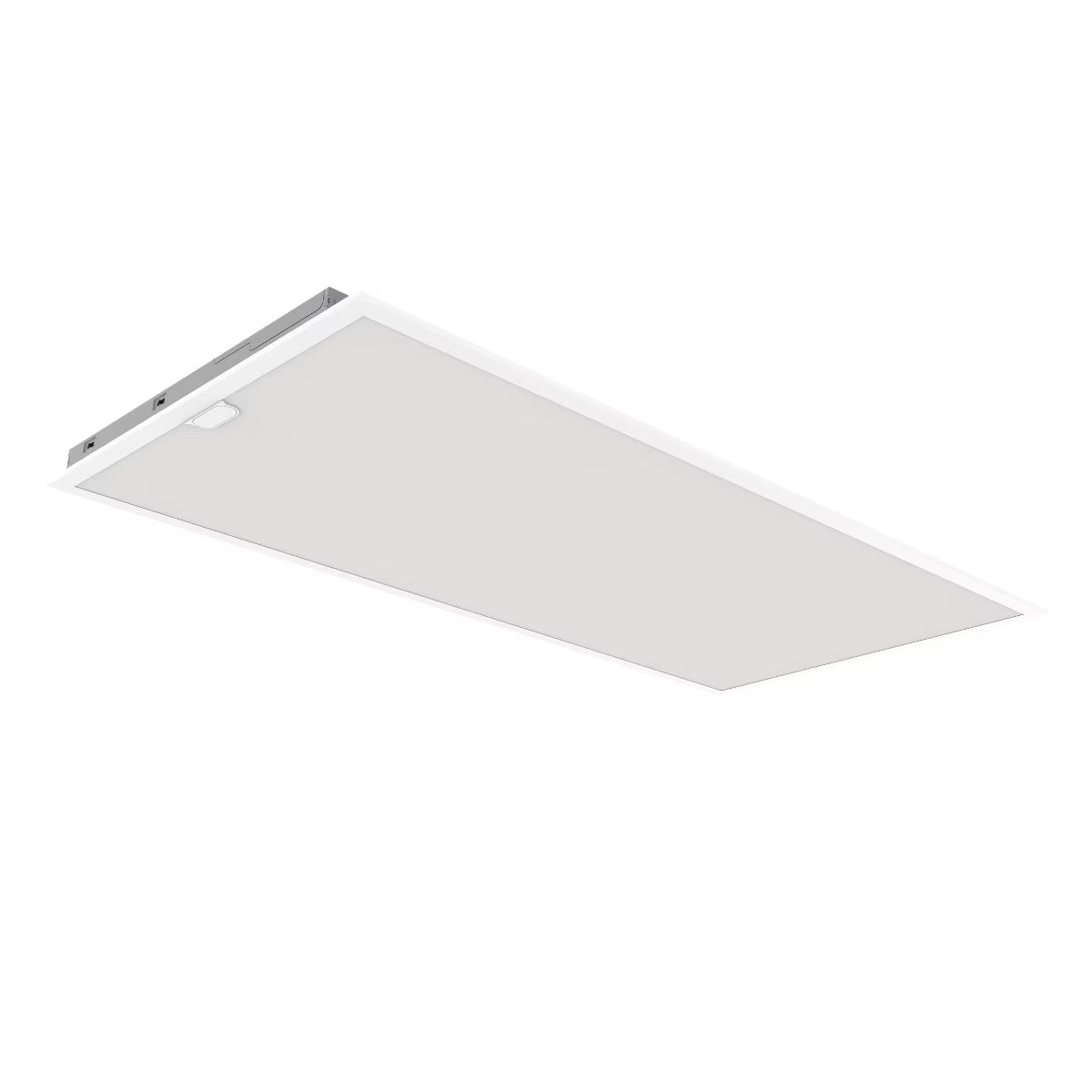

LEDONE PL0229 LOC-24SBFPL-MW45W5CCT 25/35/45W 2x4ft LED Pro Series Back-Lit Panel Light CCT Tunable 3500K-6500K 120-277V

Identification & Application

LEDone PL0229 LOC-24SBFPL-MW45W5CCT 25/35/45W 2x4ft LED Pro Series Back-Lit Panel Light CCT Tunable 3500K-6500K 120-277V

The LEDone LOC-24SBFPL-MW45W5CCT is a premium 2x4 LED Pro Series Back-Lit Panel Light engineered to deliver exceptional energy efficiency, superior illumination, and long-term reliability for commercial lighting applications. Featuring field-selectable 25W, 35W, and 45W power settings together with tunable color temperatures from 3500K to 6500K, this versatile panel allows installers to customize both brightness and color temperature from a single fixture. Delivering up to 6,525 lumens with efficacy up to 145 lumens per watt, an 82 CRI, and a wide 110° beam angle, it provides bright, uniform, glare-free, and flicker-free illumination for warehouses, schools, factories, offices, healthcare facilities, convention centers, supermarkets, big-box retail stores, gymnasiums, logistics centers, and doctor's offices.

Constructed with a corrosion-resistant powder-coated steel housing, matte white finish, and durable PS diffuser, this back-lit LED panel is designed for dependable commercial performance. Operating from a universal 120-277V input, it features dual 0-10V dimming drivers with 10-100% dimming and dim-to-off capability for outstanding lighting control. The integrated built-in sensor base supports Networked Lighting Controls (NLC) when paired with compatible Bluetooth sensors, making the fixture sensor ready for advanced occupancy sensing, daylight harvesting, and wireless lighting management. Installation options include recessed mounting, surface mounting, or panel hanging kits for maximum flexibility.

Built for demanding commercial environments, the LOC-24SBFPL-MW45W5CCT is IP44 rated and offers an exceptional 100,000-hour rated lifetime backed by a 5-year limited warranty. Optional PIR sensors, Bluetooth PIR sensors, remote controls, and panel mounting accessories provide expanded control and installation flexibility, making this LED Pro Series back-lit panel an ideal solution for both new construction and retrofit lighting projects.

Technical Performance Specifications
