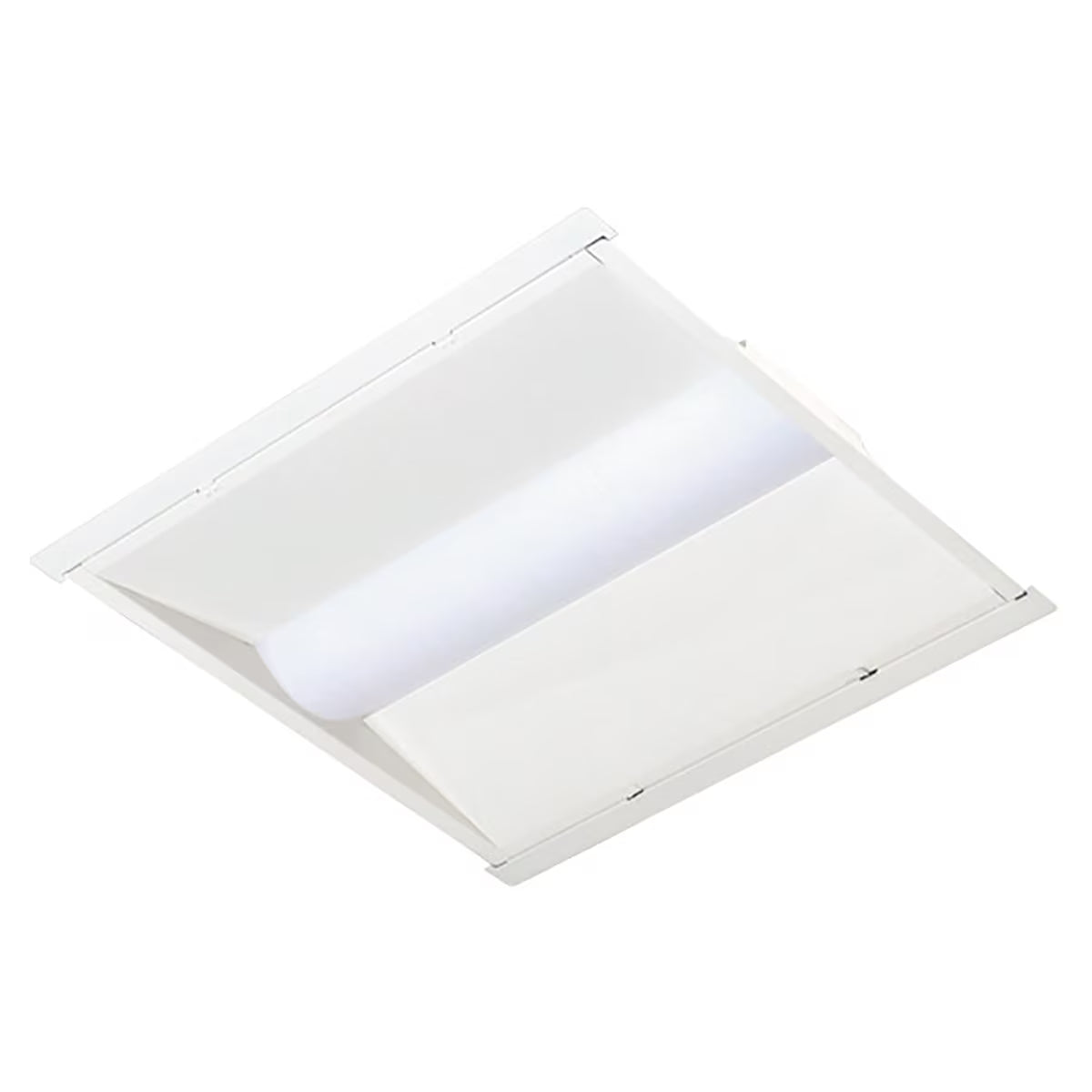

LEDONE RE0049 LOC-22TRKTMW(15/19/24/29)MCCT(35/40/50) 15/19/24/29W LED 2x2ft LED Troffer Retrofit Kit 3500K/4000K/5000K 120-277V

Identification & Application

LEDone RE0049 LOC-22TRKTMW(15/19/24/29)MCCT(35/40/50) 15/19/24/29W LED 2x2ft LED Troffer Retrofit Kit 3500K/4000K/5000K 120-277V

The LEDone LOC-22TRKT-MW(15/19/24/29)MCCT(35/40/50) is a commercial-grade 2x2 LED Troffer Retrofit Kit engineered to convert existing fluorescent troffers into high-efficiency LED lighting while minimizing installation time and maintenance costs. Featuring field-selectable 15W, 19W, 24W, and 29W power settings along with selectable 3500K, 4000K, and 5000K color temperatures, this retrofit kit provides exceptional flexibility for a variety of commercial lighting applications. Delivering up to 4,066 lumens with efficacy reaching 140.24 lumens per watt, an 82.6 CRI, and a wide 110° beam angle, it produces uniform, glare-free illumination ideal for warehouses, schools, factories, offices, supermarkets, logistics centers, and exhibition halls.

Built with a durable steel and aluminum frame finished in matte white, the fixture utilizes the entire housing as an integrated heat sink to keep the Samsung 2835 LED chips operating at lower temperatures for improved performance and longevity. The retrofit kit operates from a universal 120-277V input and includes standard 0-10V dimming for compatibility with LED dimming controls. Designed to fit most existing 2x2 troffer housings, it offers a fast, economical upgrade without requiring complete fixture replacement, making it an excellent solution for renovation and retrofit projects.

Designed for dependable commercial performance, this LED retrofit kit offers a 100,000-hour rated lifetime and is backed by a 5-year limited warranty. The fixture is IP20 rated, DLC Premium Listed, and UL Certified for commercial installations. Optional accessories including a bi-level daylight harvesting microwave sensor and emergency drivers provide enhanced energy savings and emergency lighting capability, allowing the system to be customized for a wide variety of commercial environments.

Technical Performance Specifications
