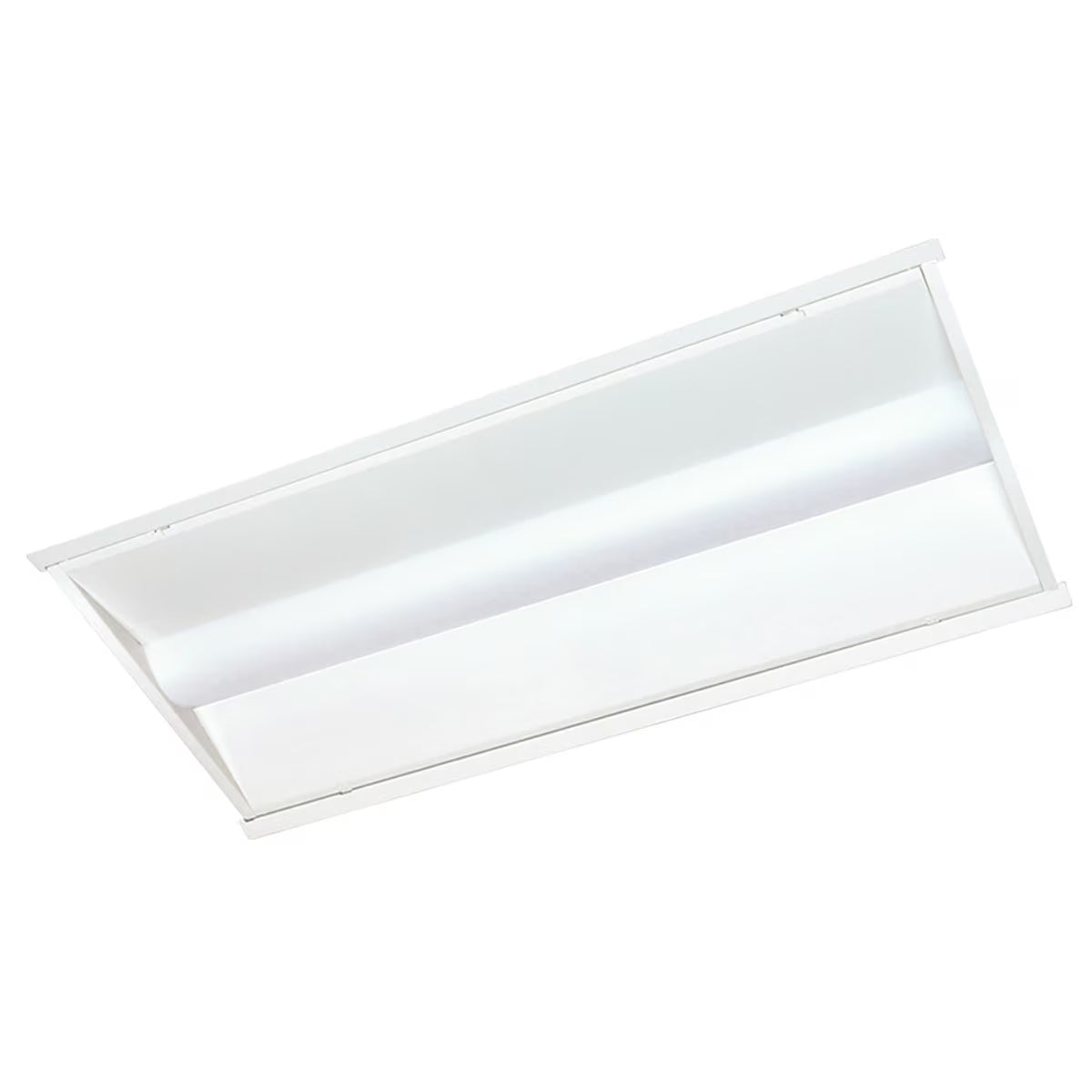

LEDONE RE0050 LOC-24TRKTMW(24/29/32/39)MCCT(35/40/50) 24/29/32/39W LED 2x4ft LED Troffer Retrofit Kit 3500K/4000K/5000K 120-277V

Identification & Application

LEDone RE0050 LOC-24TRKTMW(24/29/32/39)MCCT(35/40/50) 24/29/32/39W LED 2x4ft LED Troffer Retrofit Kit 3500K/4000K/5000K 120-277V

The LEDone LOC-24TRKT-MW(24/29/32/39)MCCT(35/40/50) is a commercial-grade 2x4 LED Troffer Retrofit Kit engineered to transform existing fluorescent troffers into energy-efficient LED lighting while reducing installation time and maintenance costs. Featuring field-selectable 24W, 29W, 32W, and 39W power settings together with selectable 3500K, 4000K, and 5000K color temperatures, this retrofit kit provides exceptional flexibility for a wide range of commercial lighting applications. Producing up to 5,276.9 lumens with efficacy up to 135.29 lumens per watt, an 82.7 CRI, and a wide 110° beam angle, it delivers uniform, glare-free illumination for warehouses, schools, factories, offices, supermarkets, logistics centers, and exhibition halls.

Constructed with a durable steel and aluminum frame finished in matte white, the fixture utilizes the entire housing as an integrated heat sink to keep the Samsung 2835 LED chips operating at lower temperatures for improved performance and extended service life. Operating from a universal 120-277V input, the retrofit kit includes standard 0-10V dimming for compatibility with LED dimming controls. Designed to fit most existing 2x4 troffer housings, it offers a fast and economical retrofit solution without requiring complete fixture replacement, making it ideal for renovation projects and lighting upgrades.

Built for dependable commercial operation, this LED retrofit kit offers a 100,000-hour rated lifetime and is backed by a 5-year limited warranty. The fixture is IP20 rated, DLC Premium Listed, and UL Certified for commercial installations. Optional accessories including a bi-level daylight harvesting microwave sensor and emergency drivers provide enhanced energy savings and emergency lighting capability, allowing the fixture to be customized for a variety of commercial environments.

Technical Performance Specifications
