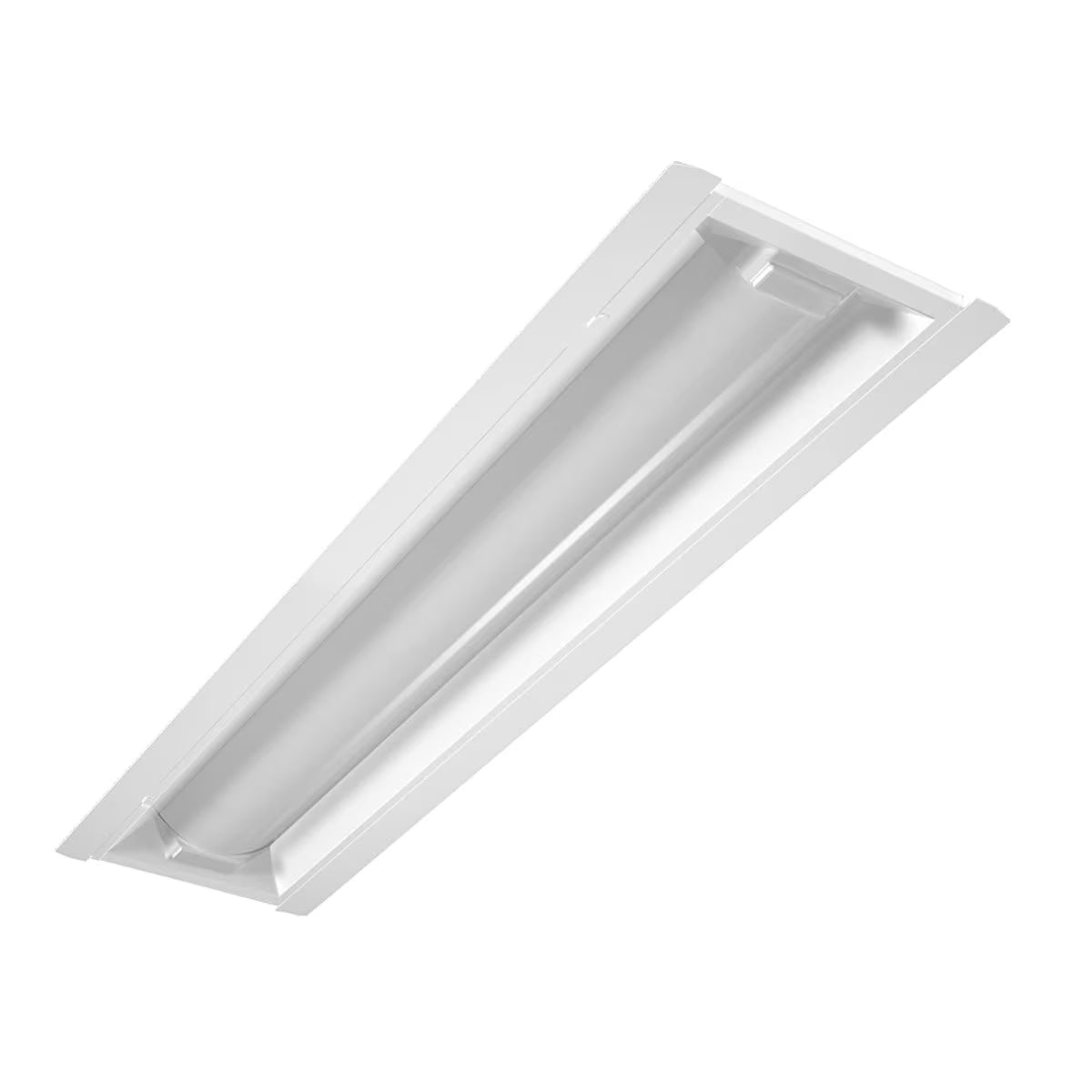

LEDONE RE0055 LOC-14HTRK-MW25WMCCT 15/20/25W LED 1x4ft LED Troffer Retrofit Kit CCT Tunable 3000K-6500K 120-277V [2-Pack]

Identification & Application

LEDone RE0055 LOC-14HTRK-MW25WMCCT 15/20/25W LED 1x4ft LED Troffer Retrofit Kit CCT Tunable 3000K-6500K 120-277V [2-Pack]

The LEDone LOC-14HTRK-MW25WMCCT is a commercial-grade 1x4 LED Troffer Retrofit Kit engineered to upgrade existing fluorescent troffers with high-efficiency LED technology while minimizing installation time and maintenance costs. Featuring field-selectable 15W, 20W, and 25W power settings together with selectable color temperatures from 3000K to 6500K, this retrofit kit provides exceptional lighting flexibility from a single fixture. Delivering up to 3,500 lumens with an efficacy of 140 lumens per watt, an 80 CRI, and a 97° beam angle, it produces uniform, glare-free illumination for warehouses, schools, manufacturing facilities, convention centers, offices, supermarkets, logistics centers, big-box retail stores, exhibition halls, and gymnasiums.

Constructed with a die-formed 24-gauge steel housing featuring an 87% reflective powder-coated reflector, high-gloss finish, and clip-in diffused lens, the LOC-14HTRK-MW25WMCCT is designed for dependable long-term commercial performance. The fixture operates on universal 120-277V input power and includes a 0-10V dimming driver, dual power supply design, high-efficiency surface-mount LEDs, and a built-in sensor base for convenient installation of optional smart occupancy sensors. Designed to fit most existing 1x4 troffer housings, it offers an efficient retrofit solution without requiring complete fixture replacement while simplifying installation and future maintenance.

Built for years of reliable operation, this LED retrofit kit is rated for up to 100,000 operating hours at 35°C ambient temperature and is backed by a 5-year limited warranty. The fixture is IP20 rated, DLC Premium Listed, and UL Certified for commercial applications. Optional PIR sensors, Bluetooth PIR sensors, emergency battery backup kits, and remote controls provide expanded lighting control, emergency operation, and energy-saving capabilities while allowing the system to be customized for a variety of commercial facilities.

Technical Performance Specifications
