LEDONE RRE0052 LOC-22HTRK-MW25W3CCT 15/20/25W LED 2x2ft LED Troffer Retrofit Kit 3500K/4000K/5000K Sensor Ready 120-277V [2-Pack]

Identification & Application

LEDone RRE0052 LOC-22HTRK-MW25W3CCT 15/20/25W LED 2x2ft LED Troffer Retrofit Kit 3500K/4000K/5000K Sensor Ready 120-277V [2-Pack]

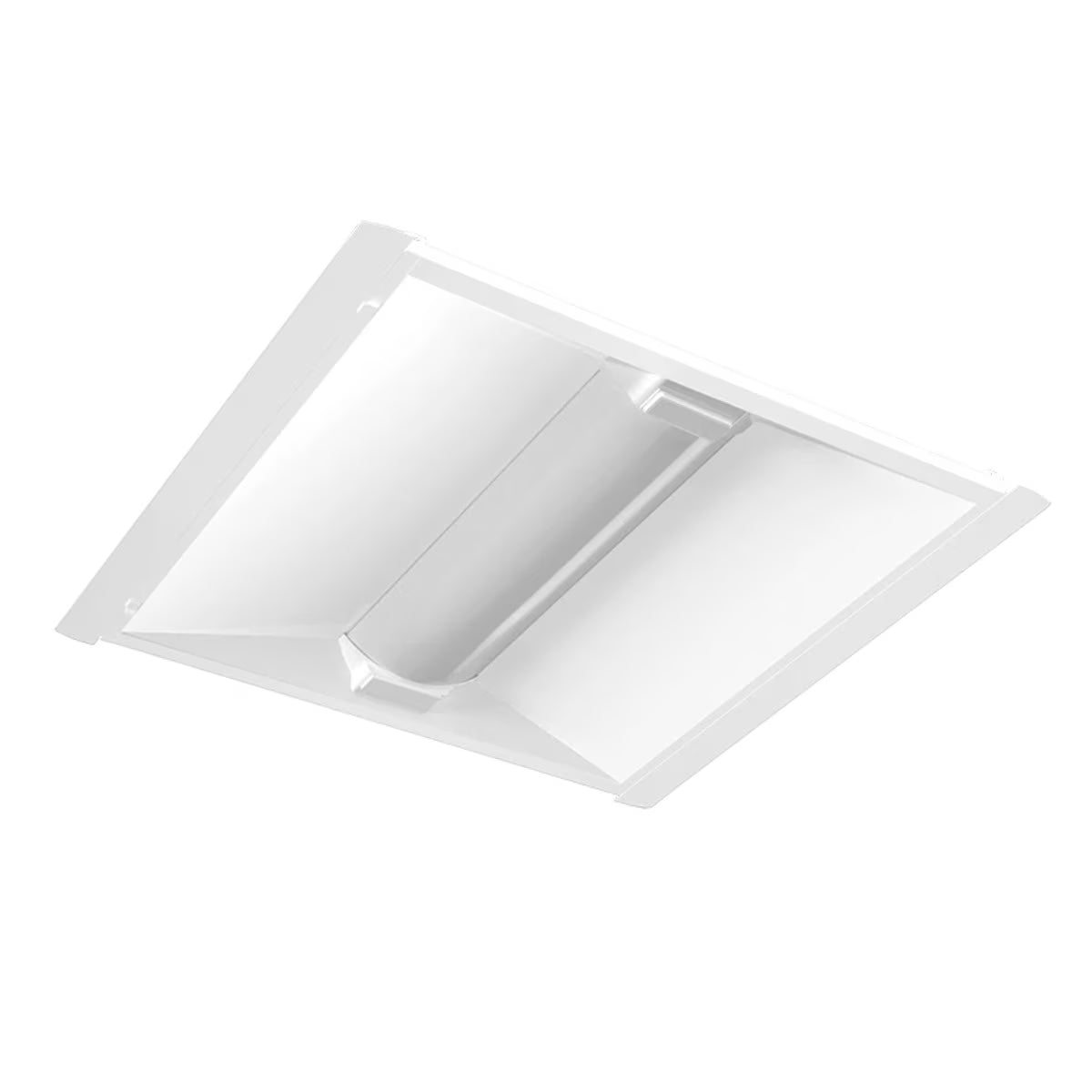

The LEDone LOC-22HTRK-MW25W3CCT is a commercial-grade 2x2 LED Troffer Retrofit Kit engineered to upgrade existing fluorescent troffers with energy-efficient LED technology while reducing installation time, maintenance, and operating costs. Featuring field-selectable 15W, 20W, and 25W power settings together with selectable 3500K, 4000K, and 5000K color temperatures, this retrofit kit provides exceptional lighting flexibility from a single fixture. Producing up to 3,500 lumens with efficacy up to 140 lumens per watt, an 80 CRI, and a 97° beam angle, it delivers bright, uniform, glare-free illumination for warehouses, schools, manufacturing facilities, convention centers, offices, supermarkets, logistics centers, big-box retail stores, exhibition halls, and gymnasiums.

Constructed with a die-formed 24-gauge steel housing featuring an 87% reflective powder-coated reflector, high-gloss finish, and clip-in diffused lens, the LOC-22HTRK-MW25W3CCT is built for dependable long-term commercial performance. Operating from a universal 120-277V input, the fixture includes standard 0-10V dimming and a built-in sensor base, making it sensor ready for fast installation of compatible PIR or Bluetooth occupancy sensors. Designed to fit most existing 2x2 troffer housings, it provides an economical retrofit solution without requiring complete fixture replacement while simplifying installation and future upgrades.

Designed for demanding commercial environments, this LED retrofit kit is rated for up to 100,000 operating hours at 35°C ambient temperature and is backed by a 5-year limited warranty. The fixture is IP20 rated and UL Certified for dependable operation. Optional PIR sensors, Bluetooth PIR sensors, emergency battery backup kits, and remote controls expand lighting control, occupancy sensing, emergency operation, and energy-saving capabilities. This package includes 2 retrofit kits, making it an excellent choice for multi-fixture retrofit projects.

Technical Performance Specifications
