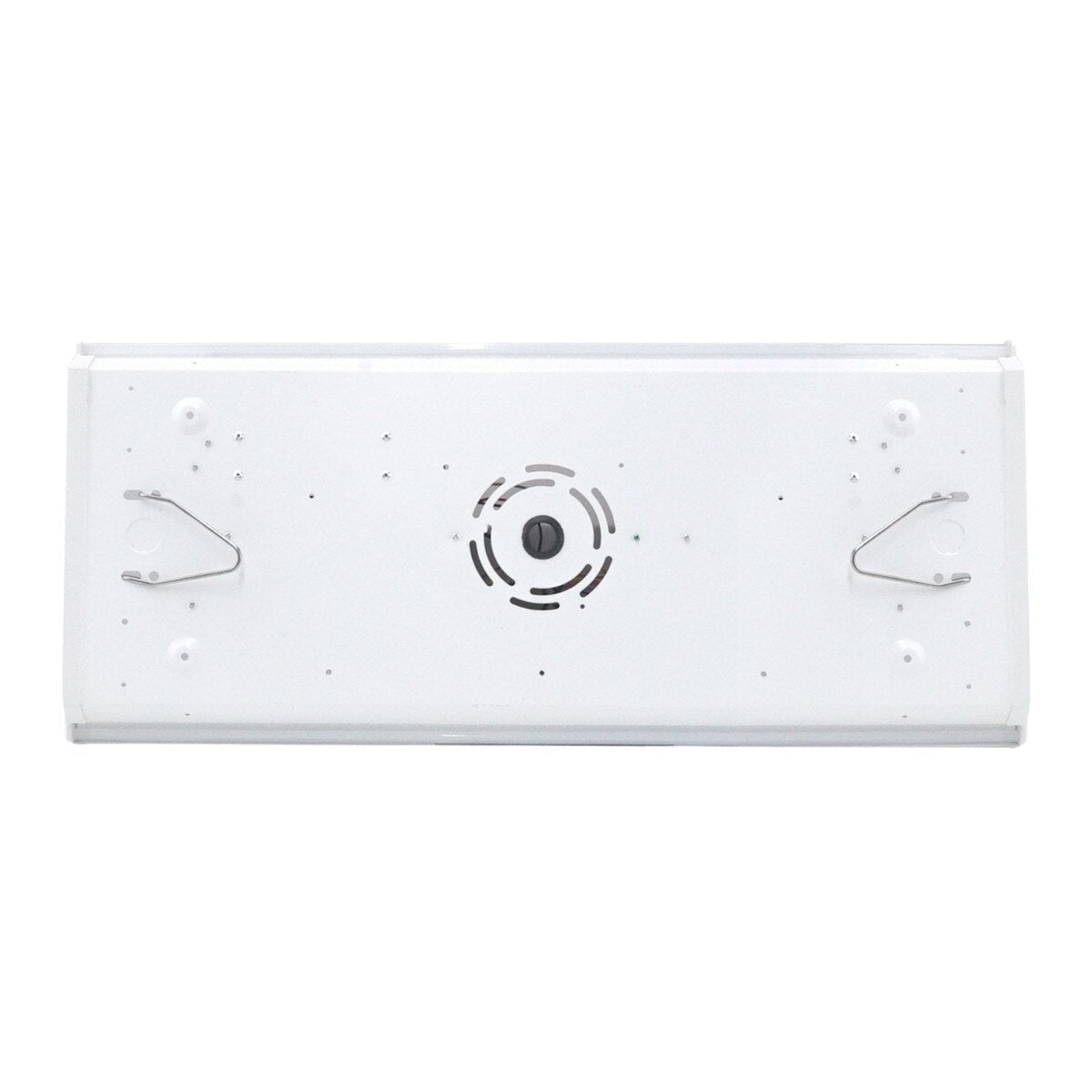

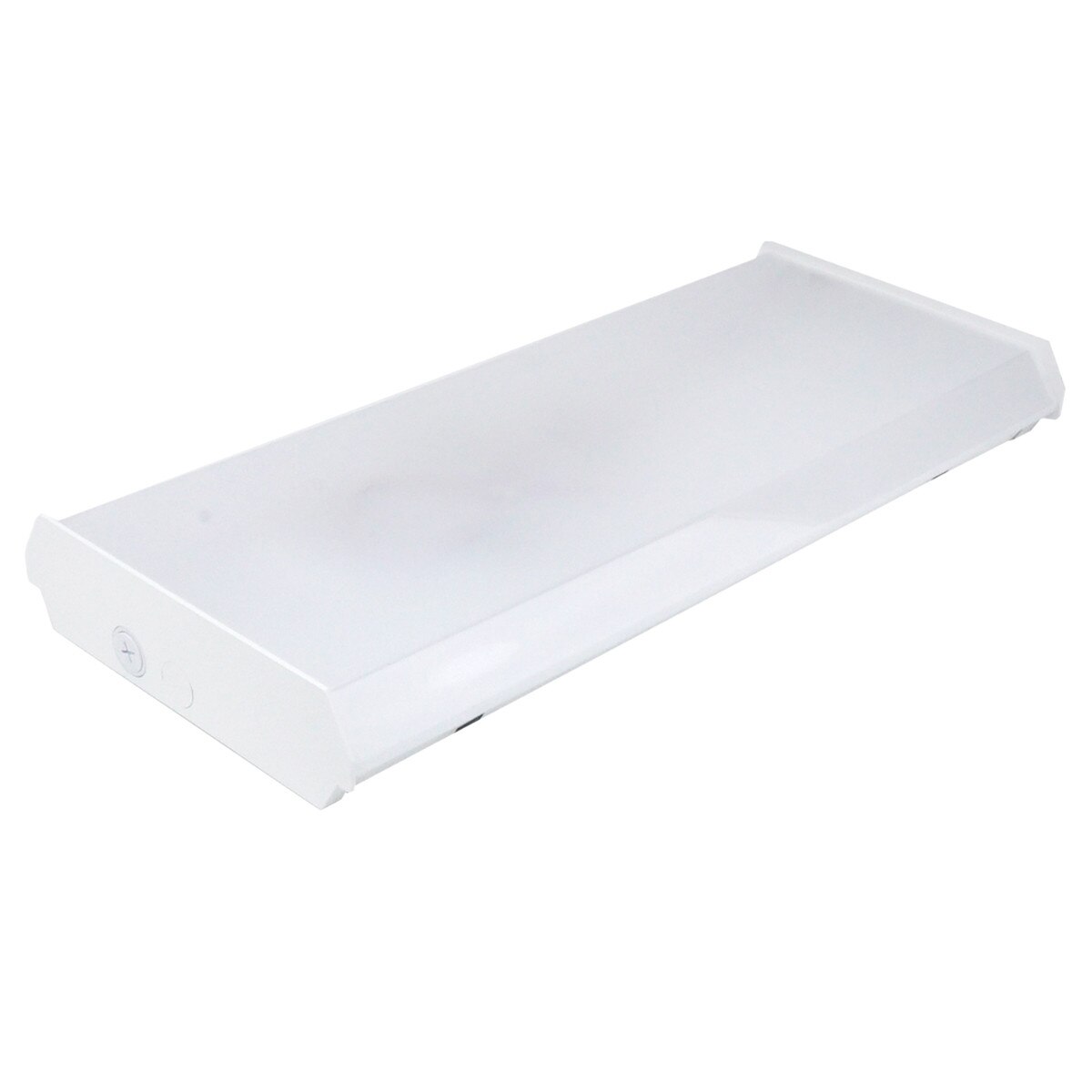

LEDONE SL0083 LOC-2FTWAMW(15/20/25/30)MCCT(35/40/50) 15/20/25/30W 2ft LED Wrap Fixture 3500K/4000K/5000K 120-277V

Identification & Application

LEDone SL0083 LOC-2FTWAMW(15/20/25/30)MCCT(35/40/50) 15/20/25/30W 2ft LED Wrap Fixture 3500K/4000K/5000K 120-277V

The LEDone LOC-2FTWA-MW(15/20/25/30)MCCT(35/40/50) is a commercial-grade 2ft LED Wrap Around Light engineered to provide exceptional energy efficiency, uniform illumination, and dependable long-term performance. Featuring field-selectable 15W, 20W, 25W, and 30W power settings together with selectable 3500K, 4000K, and 5000K color temperatures, this versatile fixture allows installers to customize both light output and color temperature from a single luminaire. Producing up to 3,924 lumens with efficacy up to 130.8 lumens per watt, an 82 CRI, and a 110° beam angle, it delivers bright, glare-free lighting for parking lots, supermarkets, corridors, retail spaces, warehouses, and other commercial environments.

Constructed with a durable 22-gauge steel housing finished in matte white and paired with a high-quality PMMA cover lens, this LED wrap fixture is designed for years of reliable operation. Samsung 2835 LED chips provide consistent performance while standard 0-10V dimming allows smooth light level adjustment. Operating from a universal 120-277V input, the fixture supports both surface and suspension mounting and can be linked together using the optional metal joiner bracket for continuous row applications.

Designed for demanding commercial installations, the LOC-2FTWA-MW(15/20/25/30)MCCT(35/40/50) is IP20 rated for dry locations and provides up to 50,000 hours of dependable service. Backed by a 5-year limited warranty, this energy-efficient LED wrap fixture helps reduce maintenance costs while delivering consistent illumination. Optional emergency battery kits and suspension accessories provide additional installation flexibility.

Technical Performance Specifications
