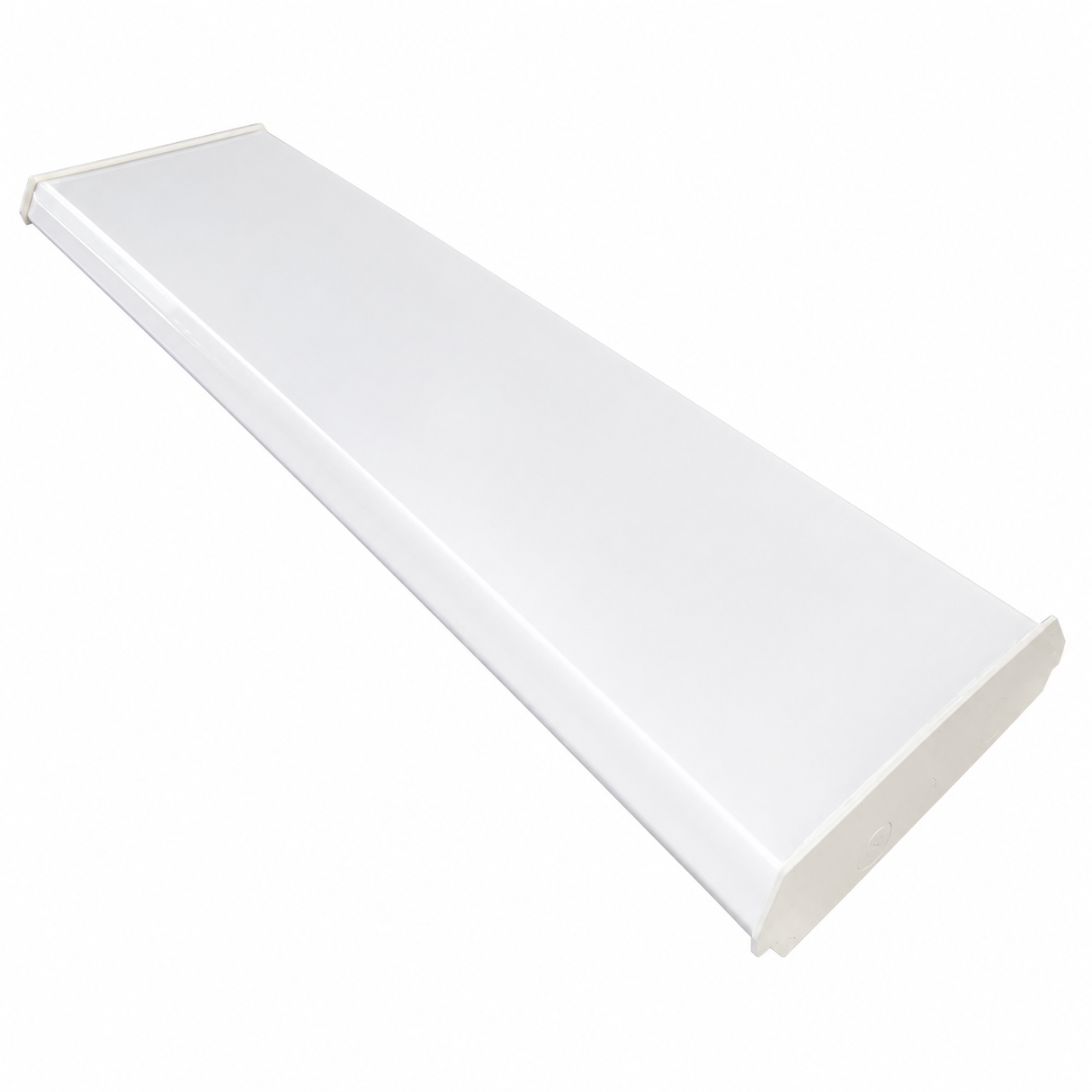

LEDONE SL0098 LOC-4FTWA-MW(30/40/50/60)MCCT(35/40/50) 30/40/50/60W 4ft LED Wrap Fixture 3500K/4000K/5000K 120-277V

Identification & Application

LEDone SL0098 LOC-4FTWA-MW(30/40/50/60)MCCT(35/40/50) 30/40/50/60W 4ft LED Wrap Fixture 3500K/4000K/5000K 120-277V

The LEDone LOC-4FTWA-MW(30/40/50/60)MCCT(35/40/50) is a commercial-grade 4ft LED Wrap Around Light engineered to deliver exceptional energy efficiency, uniform illumination, and dependable long-term performance. Featuring field-selectable 30W, 40W, 50W, and 60W power settings together with selectable 3500K, 4000K, and 5000K color temperatures, this versatile fixture allows installers to customize both light output and color temperature from a single luminaire. Producing up to 7,872 lumens with efficacy up to 131.2 lumens per watt, an 82 CRI, and a 110° beam angle, it provides bright, glare-free lighting for parking lots, supermarkets, corridors, retail spaces, warehouses, and other commercial applications.

Constructed with a durable 22-gauge steel housing finished in matte white and paired with a frosted PMMA cover lens, this LED wrap fixture is built for years of dependable service. Samsung 2835 LED chips provide consistent illumination while standard 0-10V dimming allows smooth light level adjustment. Operating from a universal 120-277V input, the fixture supports both surface and suspension mounting and can be linked together using the optional metal joiner bracket for continuous row lighting applications.

Designed for demanding commercial installations, the LOC-4FTWA-MW(30/40/50/60)MCCT(35/40/50) is IP20 rated for dry locations and delivers up to 50,000 hours of reliable operation. Backed by a 5-year limited warranty, this energy-efficient LED wrap fixture helps reduce maintenance costs while providing consistent performance. Optional emergency drivers, microwave sensors, suspension kits, and linking accessories provide added installation flexibility for a wide variety of commercial lighting projects.

Technical Performance Specifications
