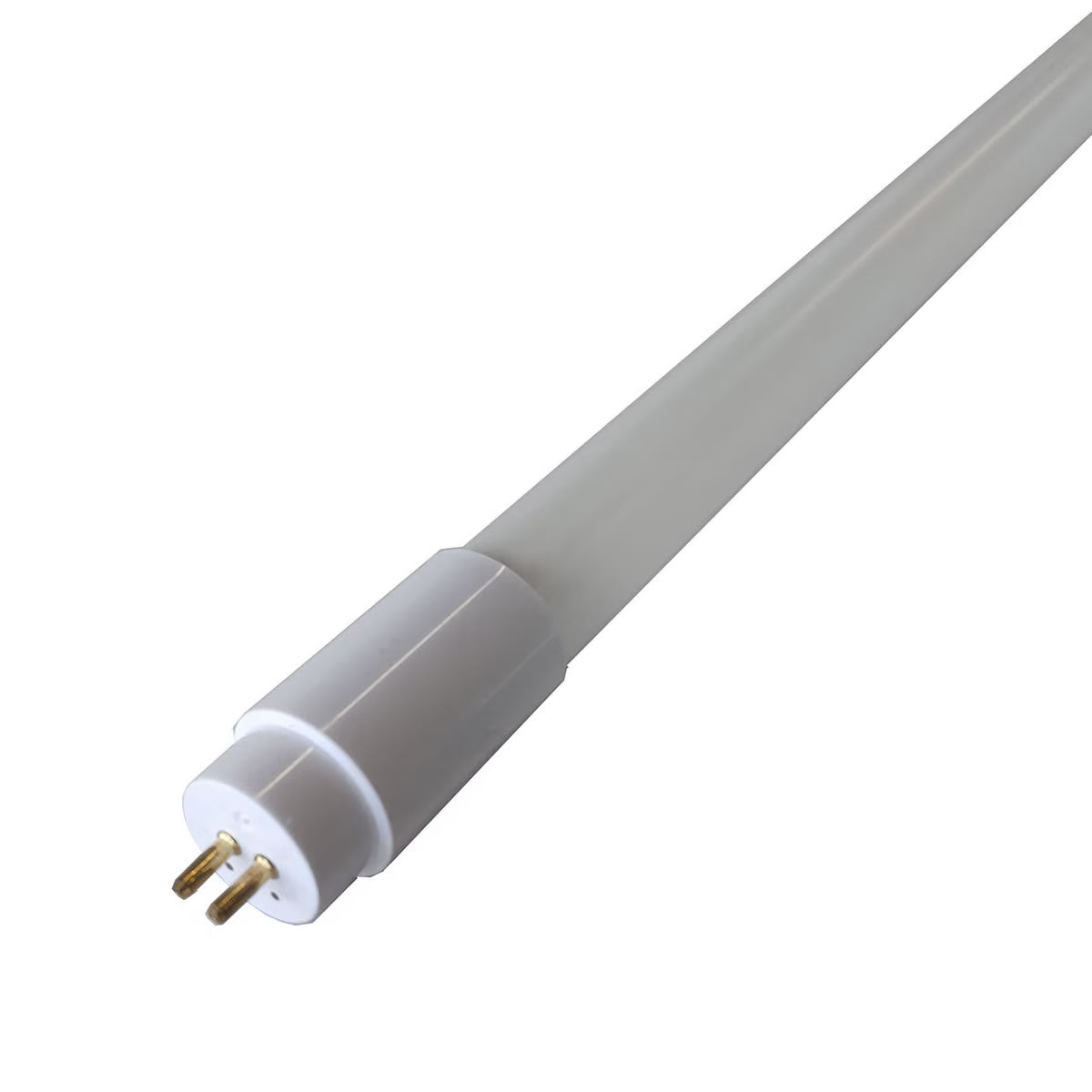

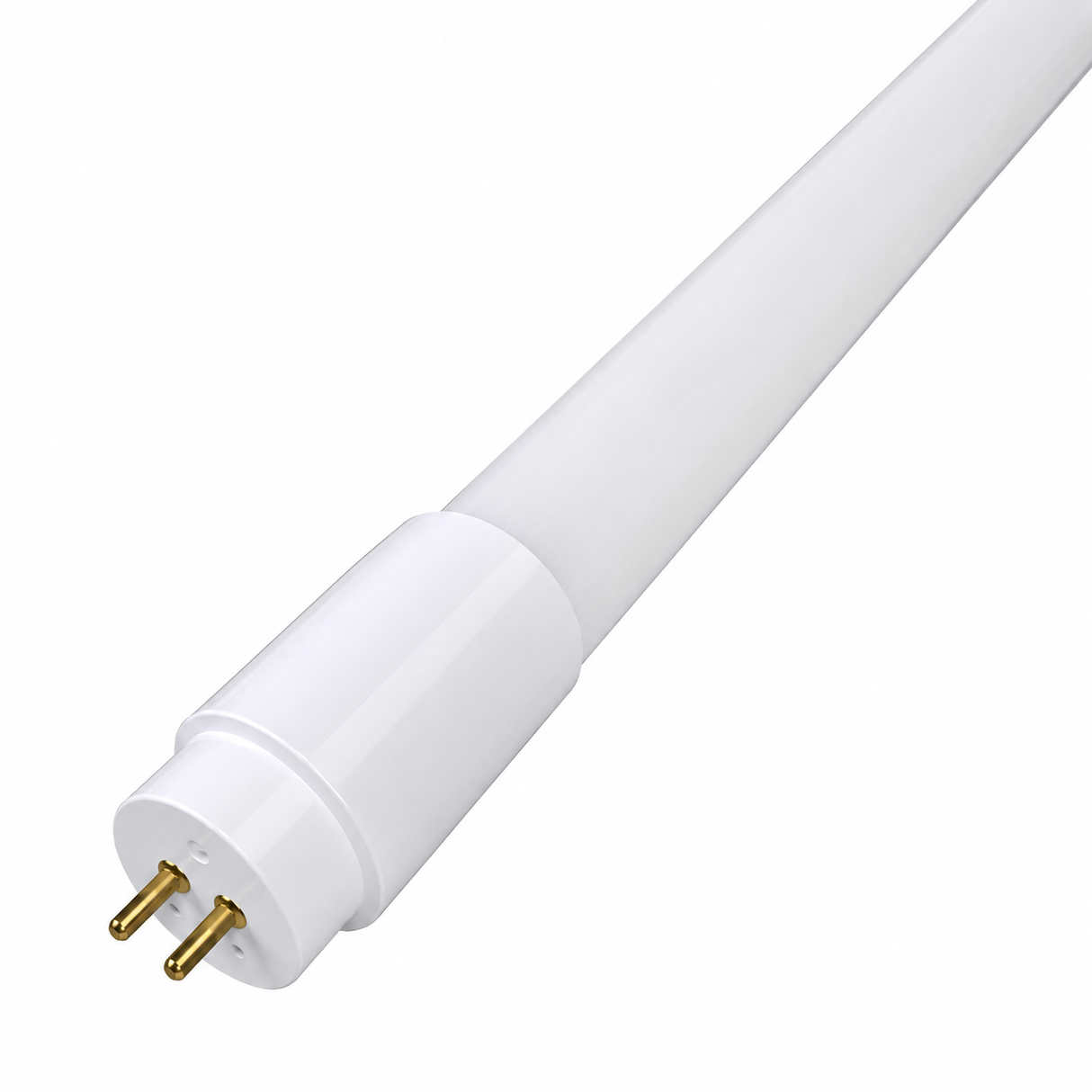

LEDONE T50015 LOC-T54FT-24W50KGF B 24W 4ft LED T5 Tube 5000K Type B 3600lm 120-277V

Identification & Application

LEDone T50015 LOC-T54FT-24W50KGF B 24W 4ft LED T5 Tube 5000K Type B 3600 Lumens 120-277V

The LEDone T50015 LOC-T54FT-24W50KGF B is a high-performance 4-foot LED T5 replacement tube designed for Type B ballast bypass installations. Operating directly from 120-277VAC line voltage, this double-ended power LED tube eliminates ballast maintenance while providing superior energy efficiency and dependable long-term performance. Producing up to 3,600 lumens at an impressive efficacy of 150 lumens per watt, it serves as an ideal replacement for traditional 54W fluorescent T5 lamps in commercial and industrial lighting systems.

Built with a frosted filmed glass lens, the lamp utilizes premium Bridgelux or ShineON 2835 LED chips to deliver uniform, glare-reduced illumination with a 110° beam angle and a wide 300° viewing angle. Designed for Type B double-ended wiring, the tube installs directly into properly rewired fixtures and operates on universal 120-277VAC input, making it suitable for a broad range of commercial retrofit projects.

Rated for 50,000 hours of service life, this LED T5 tube contains no mercury or UV and is NSF rated for splash zones and non-food zones. It is an excellent lighting solution for commercial buildings, office buildings, schools, hospitals, hotels, supermarkets, airports, conference rooms, and manufacturing facilities where reliable, high-output illumination and reduced maintenance are priorities.

Technical Performance Specifications
