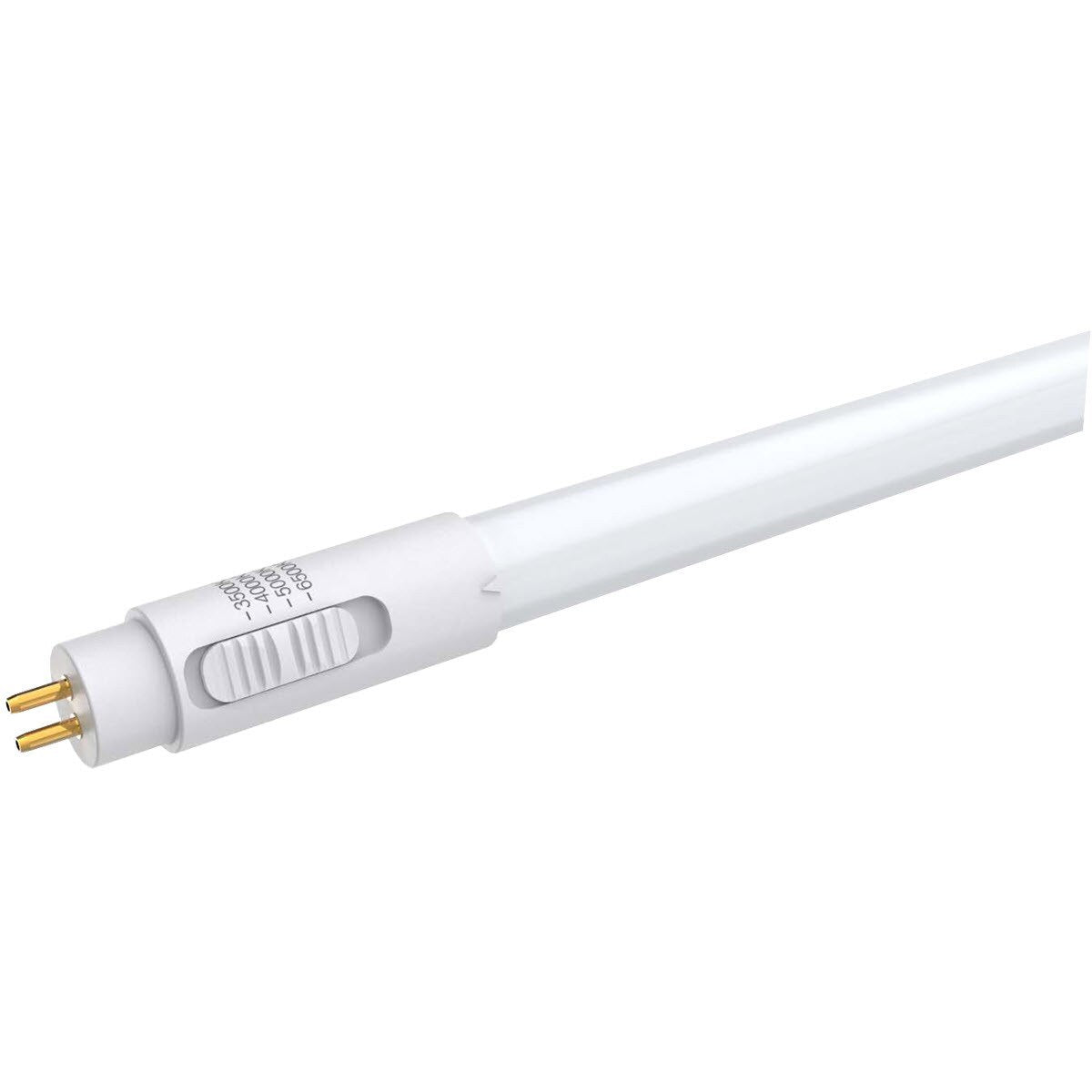

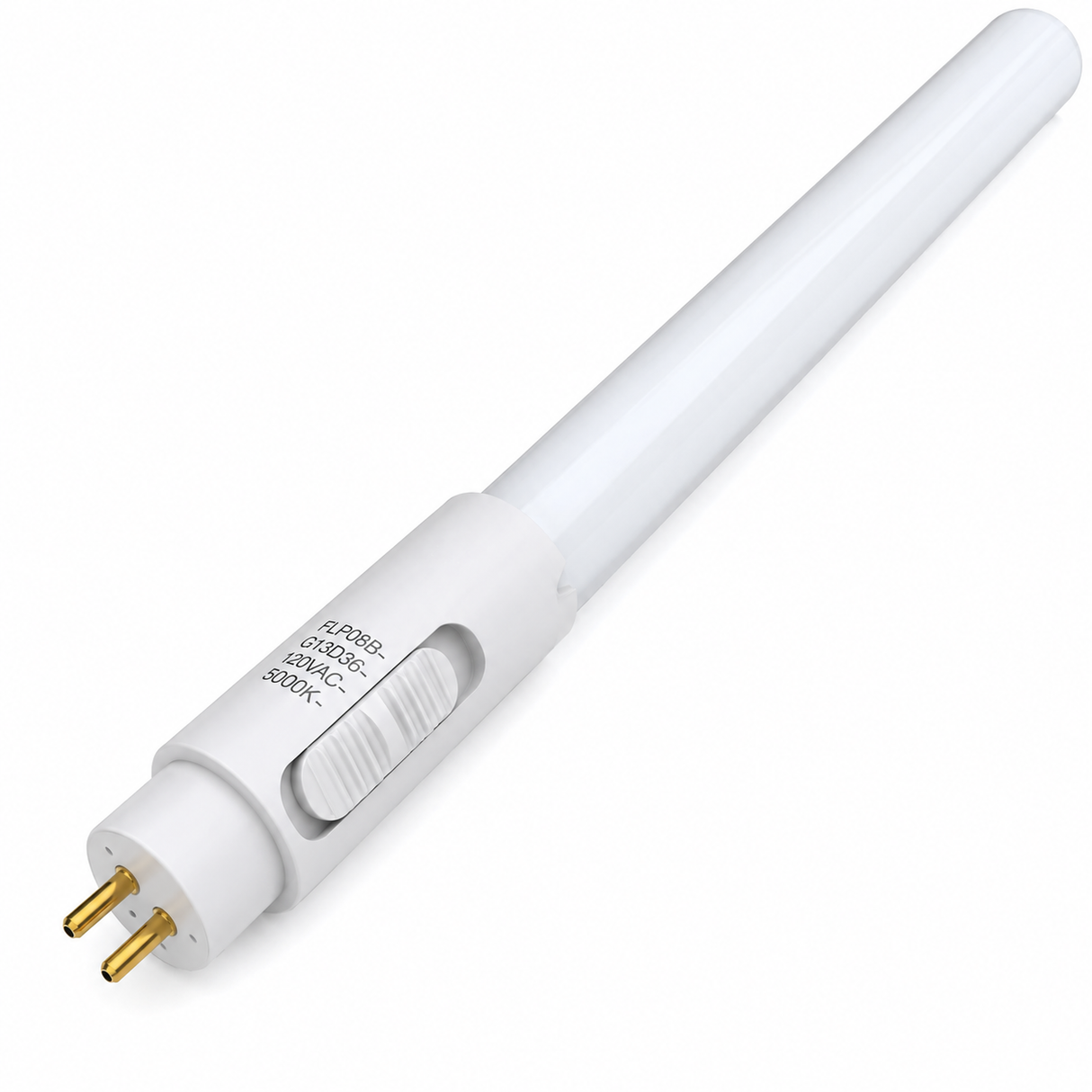

LEDONE T50022 LOC-T52FT-12WMCCT(35/40/50/65)FD B 12W 2ft LED T5 Tube 35/40/50/65K Type B 1500lm 120-277V

Identification & Application

LEDone T50022 LOC-T52FT-12WMCCT(35/40/50/65)FD B 12W 2ft LED T5 Tube 3500K/4000K/5000K/6500K Type B 1500 Lumens 120-277V

The LEDone T50022 LOC-T52FT-12WMCCT(35/40/50/65)FD B is a high-efficiency 2-foot LED T5 replacement tube featuring selectable 3500K, 4000K, 5000K, and 6500K color temperatures for maximum installation flexibility. Designed for Type B ballast bypass operation, this lamp connects directly to line voltage and eliminates ballast maintenance while providing excellent energy savings and dependable long-term performance. Delivering up to 1,500 lumens at an efficacy of 125 lumens per watt, it is an ideal replacement for conventional fluorescent T5 lamps in commercial and industrial lighting systems.

Constructed with a durable glass body, protective PET safety film, frosted lens, and G5 polycarbonate end caps, the tube produces soft, uniform illumination with a wide 180° beam angle. Universal 120-277VAC input allows installation across a broad range of commercial electrical systems, while Type B wiring supports either single-ended or double-ended power configurations for flexible retrofit installations. The default factory color temperature is 6500K and can be field selected as needed.

Rated for 50,000 hours of operation, this LED T5 tube is IP20 rated and contains no mercury or UV, making it an environmentally friendly lighting solution. It is designed for use in open fixtures and is not suitable for enclosed luminaires. Ideal applications include offices, schools, hospitals, hotels, supermarkets, factories, airports, conference rooms, and commercial buildings requiring reliable, energy-efficient illumination.

Technical Performance Specifications
