LEDONE T50023 LOC-T53FT-18WMCCT(35/40/50/65)FD B 18W 3ft LED T5 Tube 35/40/50/65K Type B 2300lm 120-277V

Identification & Application

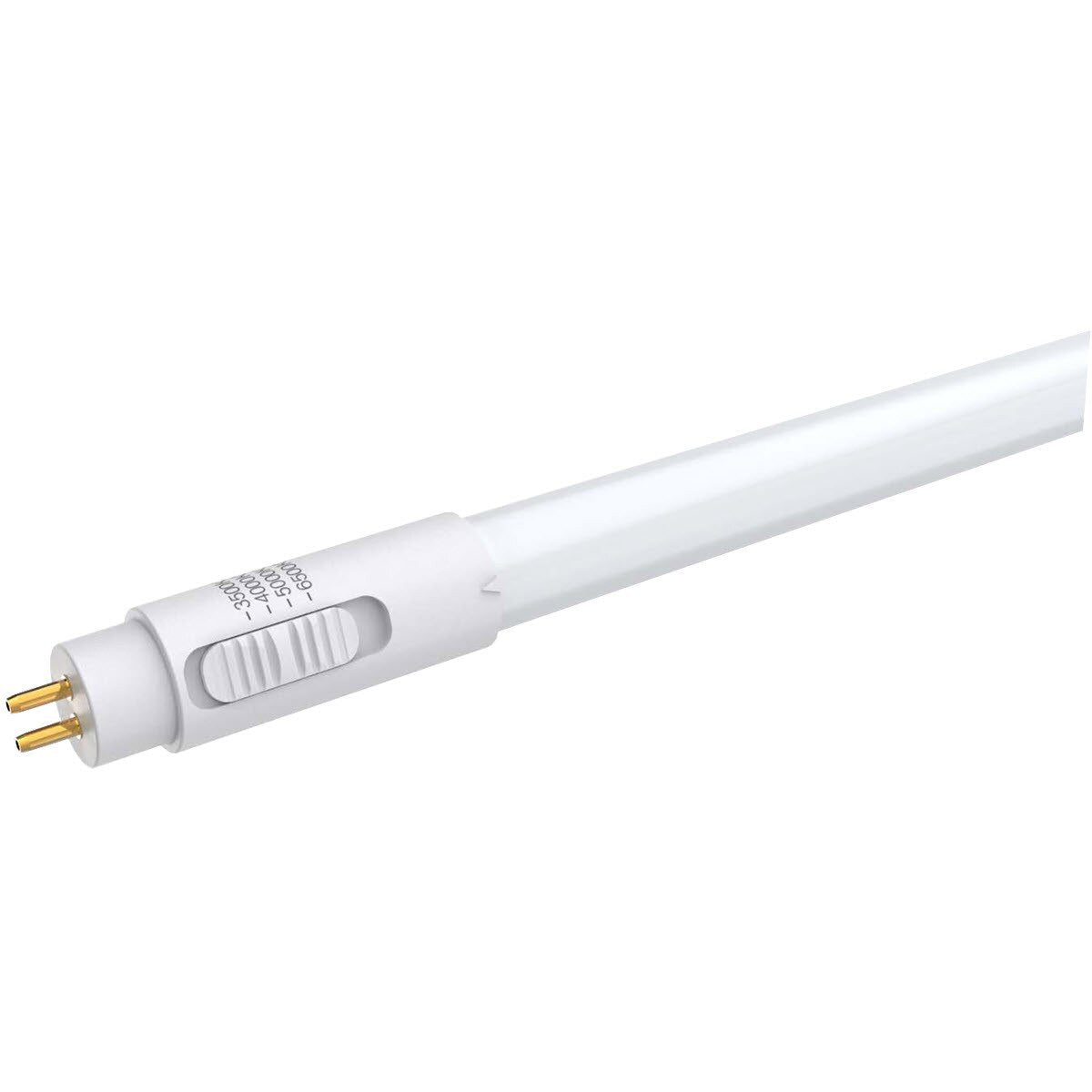

LEDone T50023 LOC-T53FT-18WMCCT(35/40/50/65)FD B 18W 3ft LED T5 Tube 3500K/4000K/5000K/6500K Type B 2300 Lumens 120-277V

The LEDone T50023 LOC-T53FT-18WMCCT(35/40/50/65)FD B is a high-performance 3-foot LED T5 replacement tube featuring selectable 3500K, 4000K, 5000K, and 6500K color temperatures for maximum installation flexibility. Designed for Type B ballast bypass operation, this lamp connects directly to line voltage and eliminates ballast maintenance while delivering excellent energy savings and dependable long-term performance. Producing up to 2,300 lumens at an efficacy of 127.77 lumens per watt, it provides an efficient replacement for traditional 3-foot T5 fluorescent lamps.

Constructed with a durable glass body, protective PET safety film, frosted lens, and G5 polycarbonate end caps, the tube delivers smooth, glare-reduced illumination through a wide 180° beam angle. Universal 120-277VAC input allows installation across a broad range of commercial electrical systems, while Type B wiring supports either single-ended or double-ended power configurations for added installation flexibility.

Rated for 50,000 hours of service life, this LED T5 tube is IP20 rated and contains no mercury or UV, making it an environmentally friendly lighting solution. It is designed for open fixtures and is not intended for enclosed luminaires. Ideal applications include offices, hospitals, schools, hotels, supermarkets, factories, airports, conference rooms, and commercial buildings where reliable, high-efficiency lighting is required.

Technical Performance Specifications
