LEDONE T80207 LOC-T84FT-17W65K-G B 17W 4ft LED T8 Tube 6500K Type B 2200lm 120-277V

Identification & Application

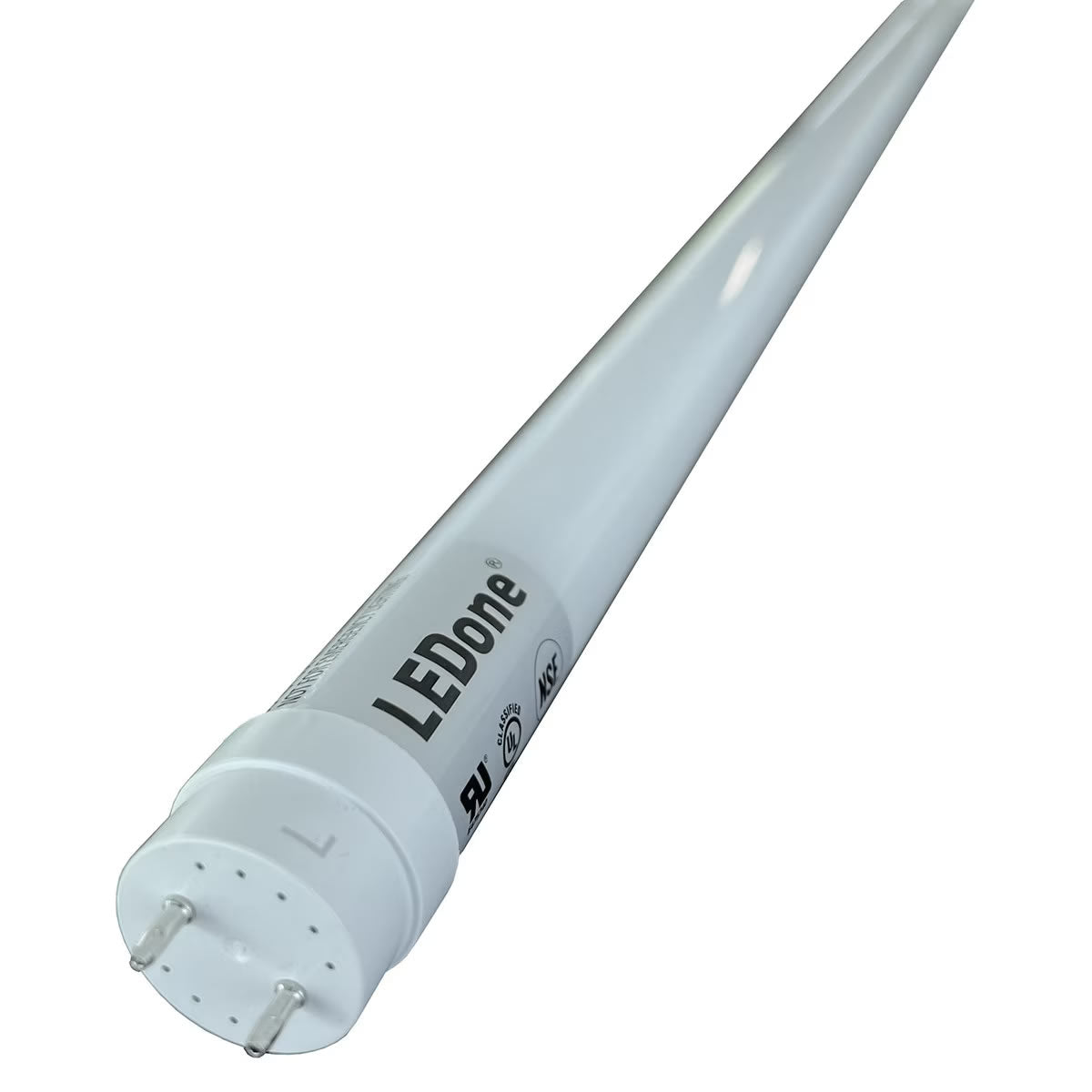

LEDone T80207 LOC-T84FT-17W65K-G B 17W 4ft LED T8 Tube 6500K Type B 2200 Lumens 120-277V

The LEDone T80207 LOC-T84FT-17W65K-G B is a high-efficiency 4-foot LED T8 replacement tube designed for Type B double-ended ballast bypass installations. Operating directly from 120-277VAC line voltage, this lamp eliminates ballast maintenance while providing dependable energy savings and long-lasting performance. Producing 2,200 lumens while consuming only 17 watts, it delivers crisp 6500K daylight illumination, making it an excellent replacement for traditional 32W fluorescent T8 lamps in commercial and industrial applications.

Constructed with a durable glass body and soft light design, the tube utilizes premium Bridgelux 2835 LED chips to provide smooth, uniform illumination through a wide 240° beam angle. The G13 medium bi-pin base is designed for Type B double-ended wiring and is compatible with either shunted or non-shunted sockets, providing straightforward retrofit installation into existing fluorescent fixtures. The lamp is also suitable for enclosed fixtures for added application flexibility.

Rated for 50,000 hours of operation, this LED T8 tube is IP20 rated and contains no mercury or UV for environmentally friendly operation. DLC Listed and UL Certified, it is ideal for offices, schools, hospitals, hotels, supermarkets, conference rooms, airports, factories, warehouses, and commercial buildings where reliable, high-quality daylight illumination is required. The optional LOC-EMDR-25WHV emergency battery backup is available for emergency lighting applications.

Technical Performance Specifications
