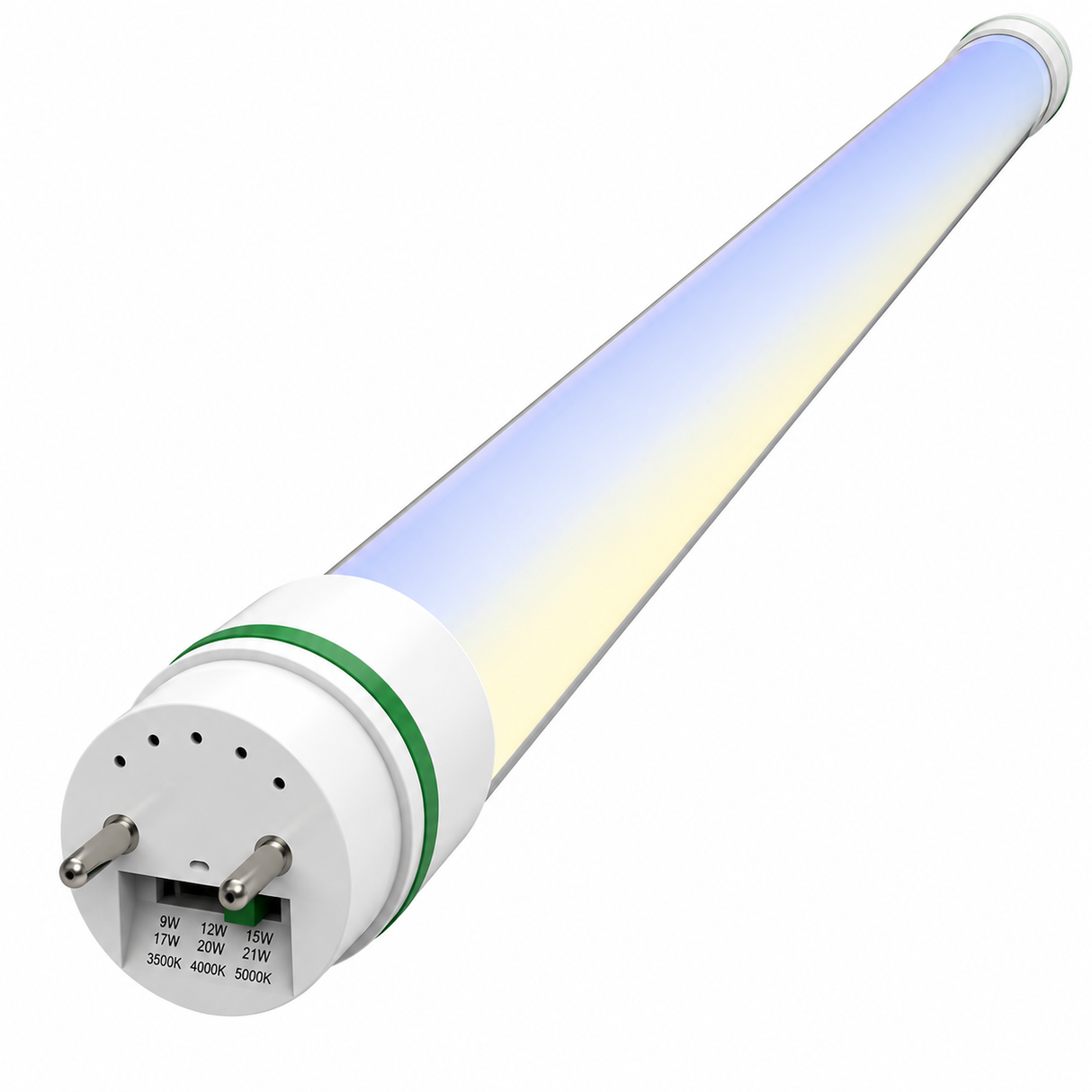

LEDONE T80218 LOC-3FTT8-11WMCCT(30/35/40/50/65) B 11W 3ft LED T8 Tube 30/35/40/50/65K Type B 1500lm 120-277V

Identification & Application

LEDone T80218 LOC-3FTT8-11WMCCT(30/35/40/50/65) B 11W 3ft LED T8 Tube 3000K/3500K/4000K/5000K/6500K Type B 1500 Lumens 120-277V

The LEDone T80218 LOC-3FTT8-11WMCCT(30/35/40/50/65) B is a high-efficiency 3-foot LED T8 replacement tube featuring field-selectable color temperatures of 3000K, 3500K, 4000K, 5000K, and 6500K for maximum installation flexibility. Designed for Type B ballast bypass operation, this lamp connects directly to line voltage and eliminates ballast maintenance while delivering dependable energy savings and long service life. Producing up to 1,500 lumens while consuming only 11 watts, it is an excellent replacement for conventional 3-foot fluorescent T8 lamps in commercial and industrial applications.

Constructed with a durable glass body and soft light design, the tube utilizes premium Bridgelux 2835 LED chips to provide smooth, uniform illumination through a wide 240° beam angle. Operating on universal 120-277VAC input power, the lamp supports both single-ended and double-ended Type B wiring. Double-ended installation is compatible with either shunted or non-shunted sockets, providing additional installation flexibility for retrofit projects.

Rated for 50,000 hours of operation, this LED T8 tube is IP20 rated, mercury-free, UV-free, and suitable for enclosed fixtures. It is ideal for commercial buildings, offices, schools, hospitals, hotels, supermarkets, airports, conference rooms, warehouses, and manufacturing facilities where reliable, energy-efficient illumination is required.

Technical Performance Specifications
