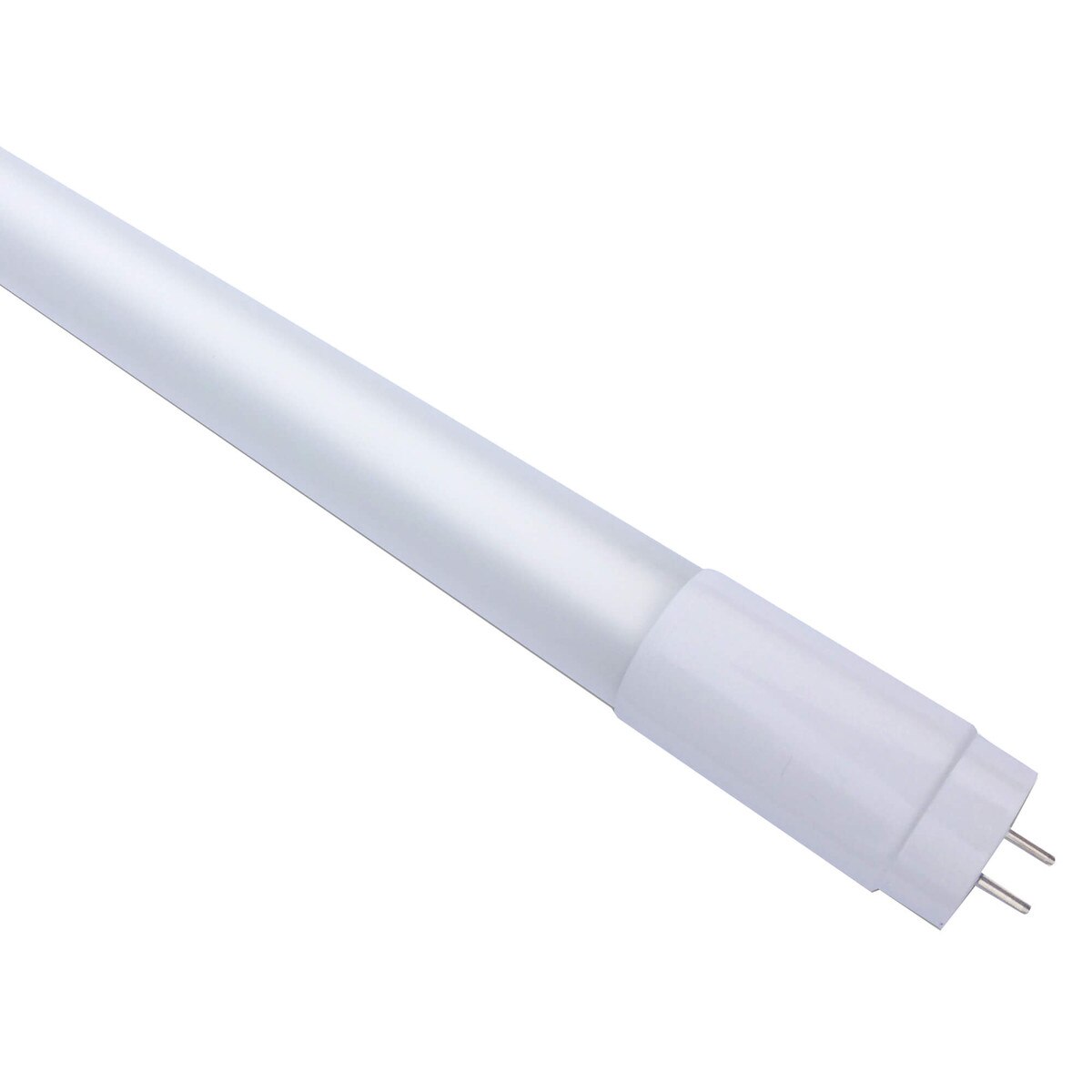

LEDONE T80222 LOC-4FTT8AB-17W50KFD 17W 4ft LED T8 Tube 5000K Type A+B 2500lm 120-277V

Identification & Application

LEDone T80222 LOC-4FTT8AB-17W50KFD 17W 4ft LED T8 Tube 5000K Type A+B 2500 Lumens 120-277V

The LEDone T80222 LOC-4FTT8AB-17W50KFD is a premium 4-foot LED T8 replacement tube designed with versatile Type A + B compatibility for both ballast-compatible and ballast bypass installations. Producing up to 2,500 lumens while consuming only 17 watts, this high-efficiency lamp delivers bright 5000K daylight illumination with an efficacy of 147 lumens per watt, making it an excellent replacement for traditional 32W to 36W fluorescent lamps in commercial and industrial applications.

Constructed with a durable shatterproof glass body featuring a protective PET film and soft light diffuser, the tube utilizes premium Bridgelux or Samsung 2835 LED chips to deliver smooth, uniform illumination through a 200° beam angle with a 300° viewing angle. Universal 120-277VAC input supports commercial electrical systems, while the plug-and-play dual mode design allows operation with compatible electronic ballasts or direct-wire Type B installations using either single-ended or double-ended wiring. Compatible with both shunted and non-shunted sockets, it offers maximum retrofit flexibility.

Rated for 50,000 hours of operation, this LED T8 tube is NSF approved and rated for splash zone and non-food zone applications. It contains no mercury or UV, provides low thermal decay, and is ideal for commercial buildings, offices, hotels, schools, hospitals, supermarkets, airports, conference rooms, and manufacturing facilities. This model is not suitable for enclosed fixtures.

Technical Performance Specifications
