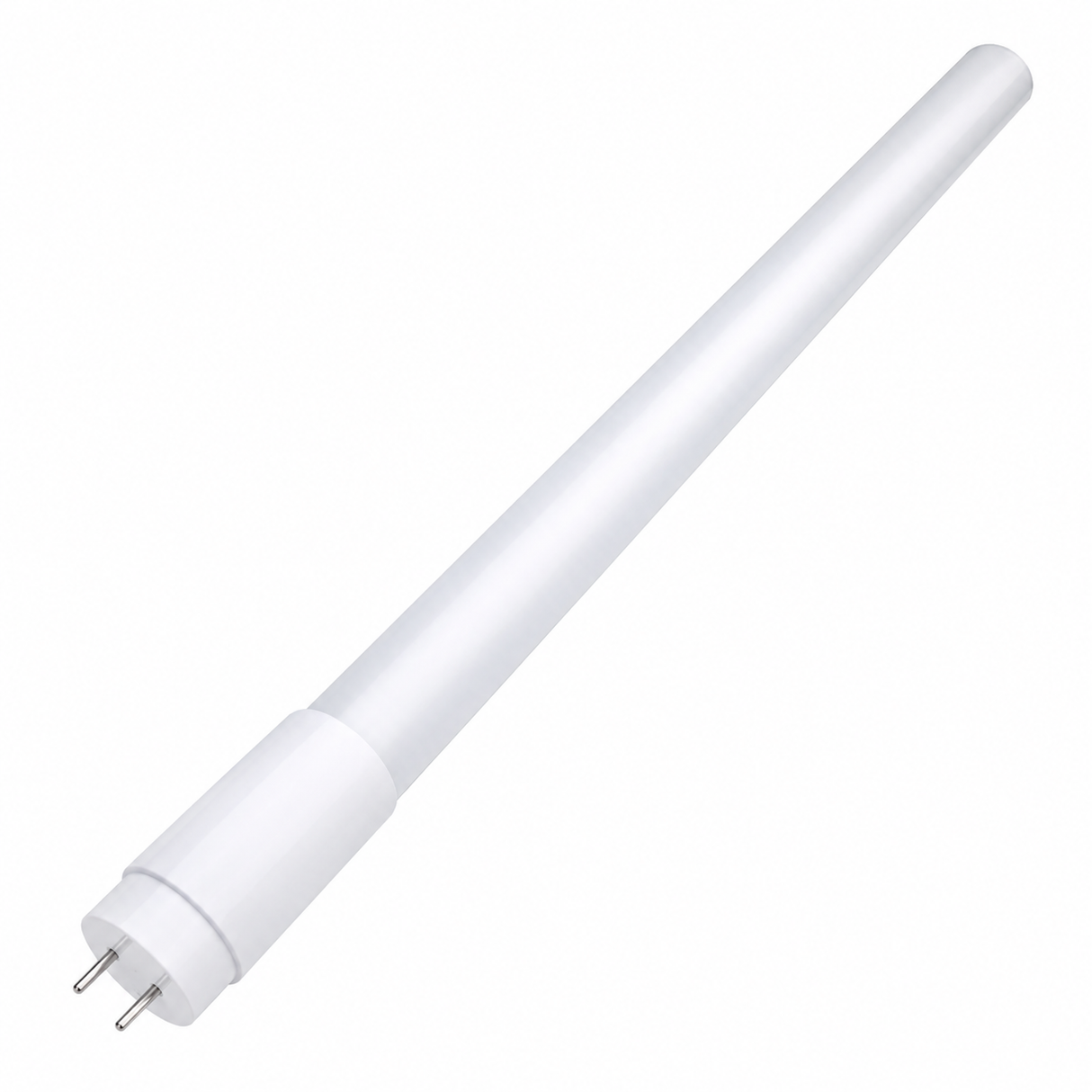

LEDONE T80228 LOC-4FTT8AB-12W40KFD 12W 4ft LED T8 Tube 4000K Type A+B 2000lm 120-277V

Identification & Application

LEDone T80228 LOC-4FTT8AB-12W40KFD 12W 4ft LED T8 Tube 4000K Type A+B 2000lm 120-277V

The LEDone LOC-4FTT8AB-12W40KFD is a high-performance 4-foot LED T8 replacement tube designed for dual-mode Type A+B operation, allowing installation with compatible fluorescent ballasts or as a direct wire Type B ballast bypass lamp. Producing 2,000 lumens while consuming only 12 watts, it delivers bright 4000K neutral white illumination for commercial buildings, offices, schools, hospitals, hotels, airports, supermarkets, factories, and conference rooms.

Constructed with a durable shatterproof glass housing and PET safety film, the tube features Bridgelux or Samsung 2835 LED chips, a 200° beam angle, and a 300° viewing angle for wide, uniform light distribution. The lamp supports both shunted and non-shunted sockets in ballast bypass applications and operates from 120-277VAC. NSF approval and mercury-free construction make it an excellent solution for commercial and food-related environments outside direct food contact zones.

Rated for 50,000 hours of operation with an efficacy of 166.7 lumens per watt, the LOC-4FTT8AB-12W40KFD provides exceptional energy savings while replacing 32W to 36W fluorescent lamps. The lamp is not intended for enclosed fixtures and is backed by a 5-year limited warranty for dependable long-term performance.

Technical Performance Specifications
