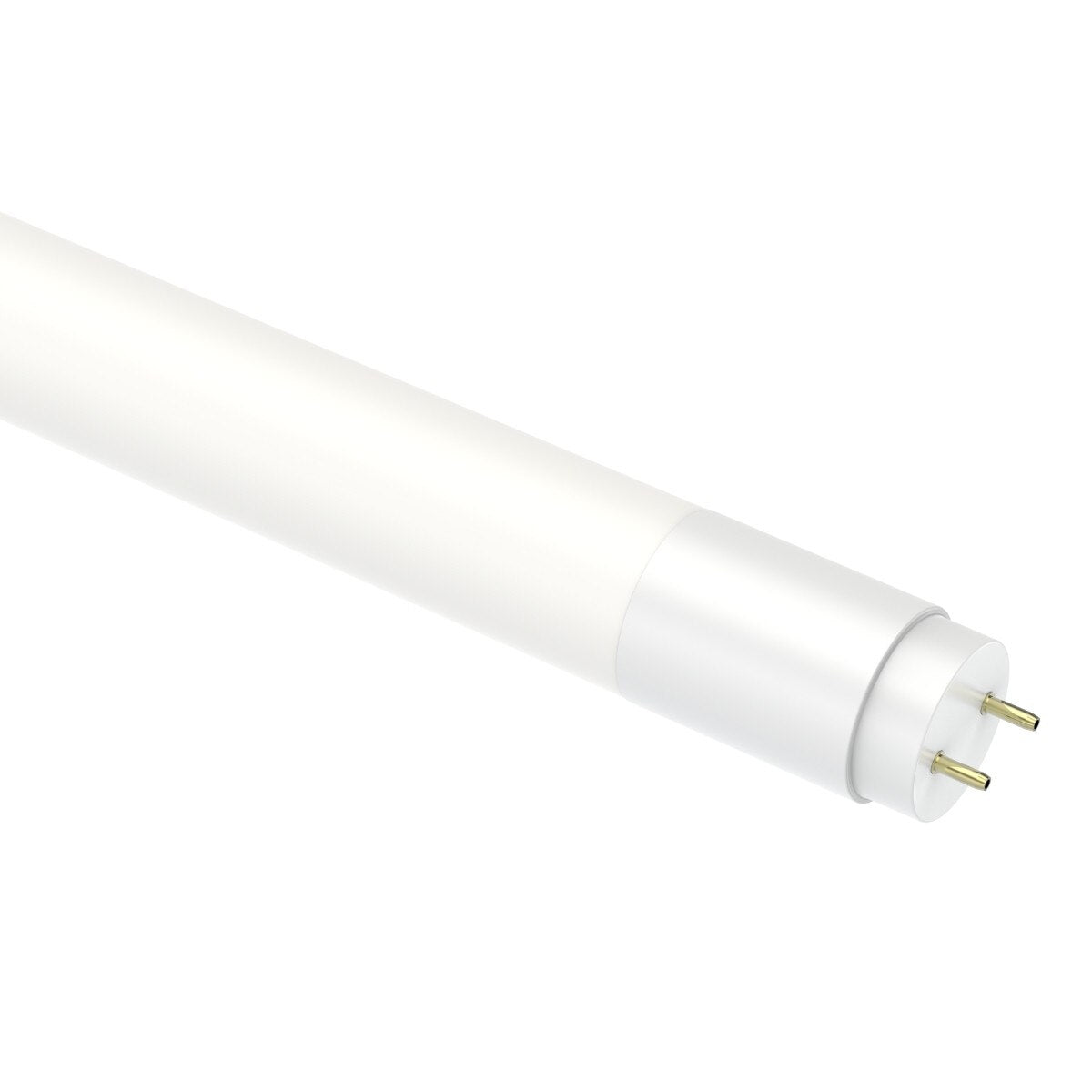

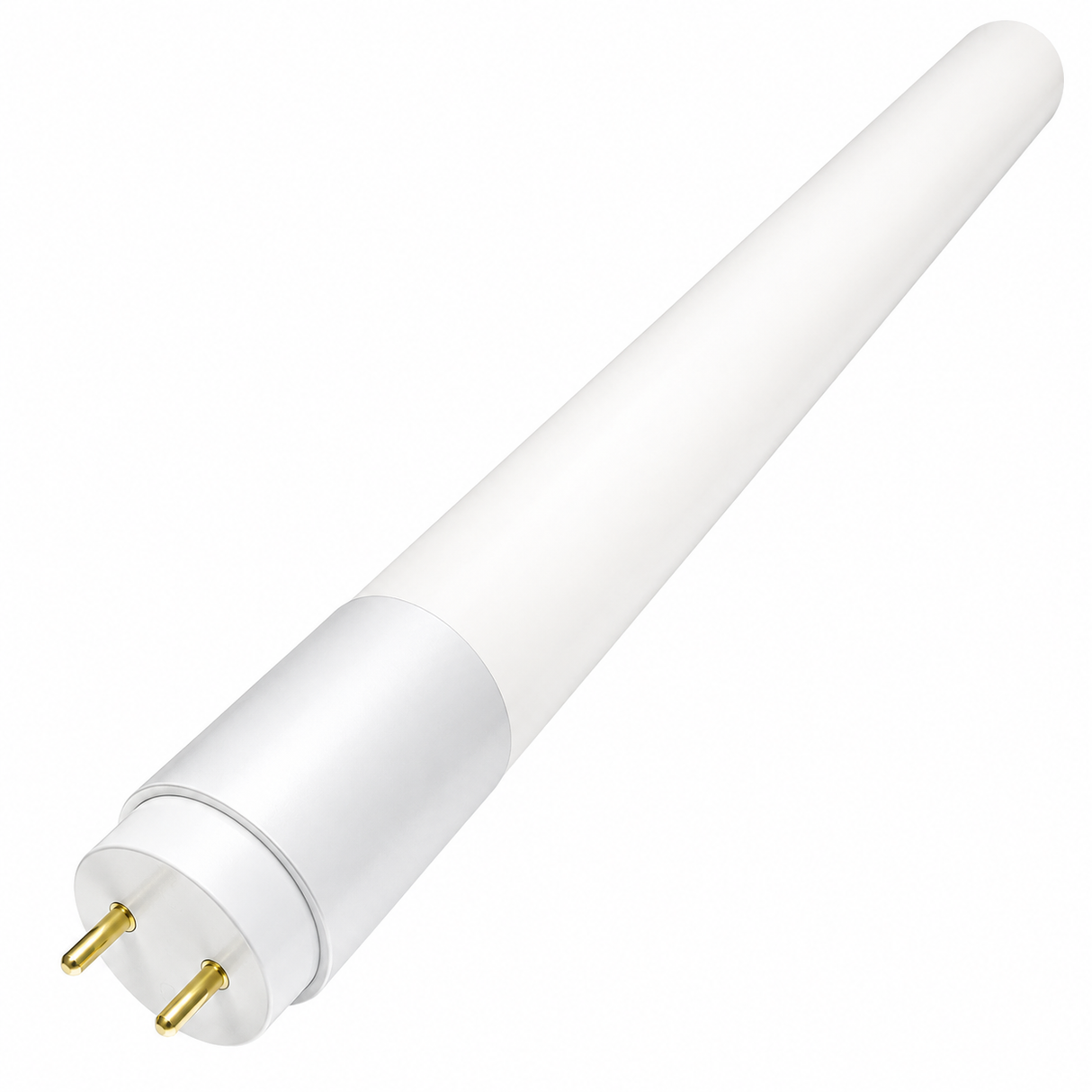

LEDONE T80246 LOC-4FTT8B-24W50K 24W 4ft LED T8 Tube 5000K Type B 3400lm 120-277V

Identification & Application

LEDone T80246 LOC-4FTT8B-24W50K 24W 4ft LED T8 Tube 5000K Type B 3400 Lumens 120-277V

The LEDone T80246 LOC-4FTT8B-24W50K is a high-output 4-foot LED T8 replacement tube designed for Type B ballast bypass installations. Operating directly from 120-277VAC line voltage, this lamp eliminates fluorescent ballast maintenance while delivering exceptional energy efficiency and dependable long-term performance. Producing up to 3,400 lumens with only 24 watts of power consumption, it is an excellent replacement for conventional fluorescent T8 lamps in commercial, industrial, institutional, and retail lighting applications.

Constructed with a durable shatterproof glass body featuring a protective PET safety film and soft light design, the tube delivers smooth, uniform illumination through a wide 200° beam angle with a 325° beam spread. The G13 medium bi-pin base supports both single-ended and double-ended Type B ballast bypass wiring, providing flexible installation options for retrofit projects while operating on universal 120-277VAC electrical systems.

Rated for 50,000 hours of service life, this LED T8 tube is IP20 rated and contains no mercury or UV, making it an environmentally friendly lighting solution. It is DLC Listed, UL Certified, and NSF Certified, making it ideal for commercial buildings, offices, schools, hospitals, hotels, supermarkets, airports, conference rooms, factories, and other facilities requiring reliable, high-efficiency lighting with reduced maintenance.

Technical Performance Specifications
