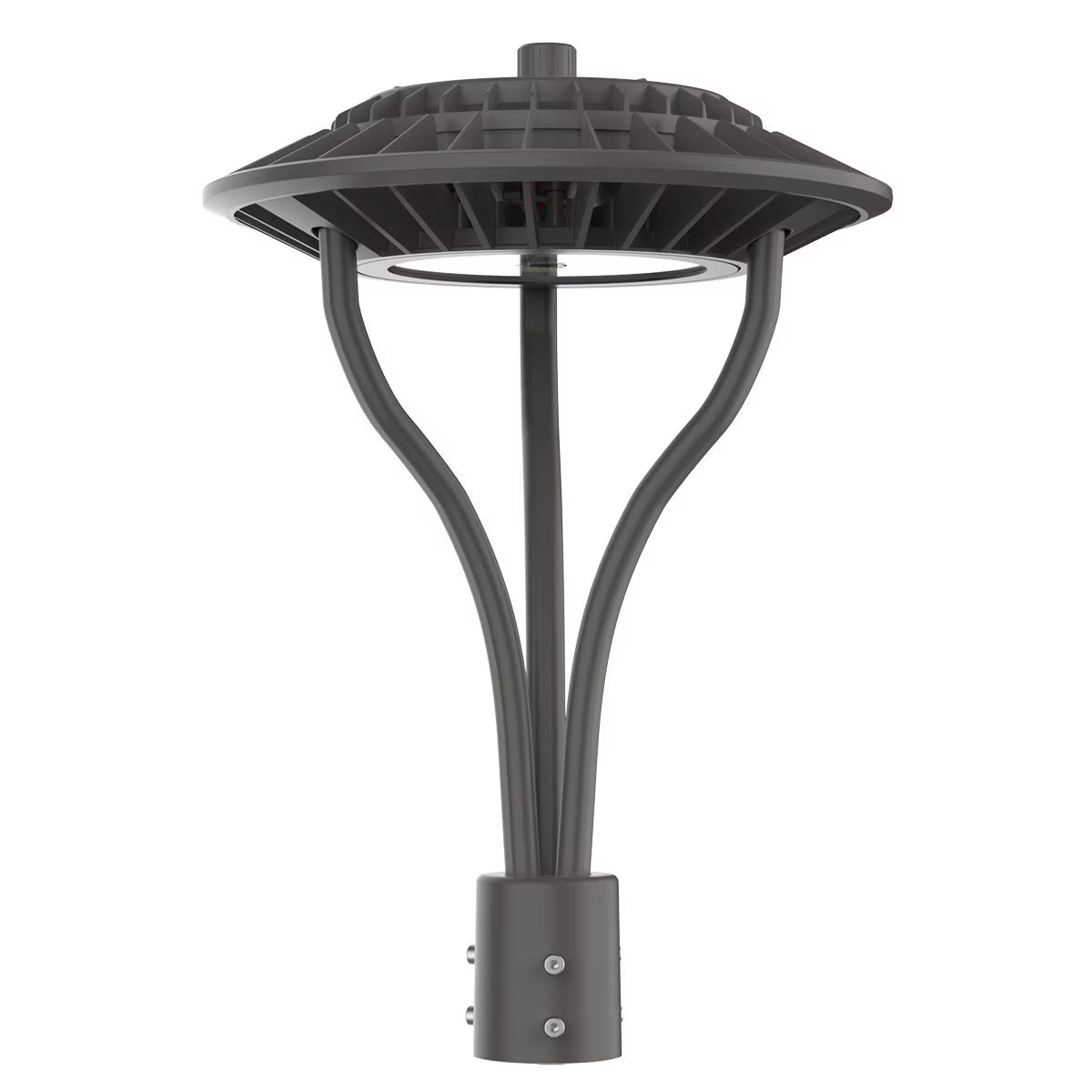

LEDONE TP0019 LOC-PT-MW(60/80/100/150)MCCT(30/40/50)DLV 60/80/100/150W LED Post-Top Area Light 3000K/4000K/5000K 120-277V

Identification & Application

LEDone TP0019 LOC-PT-MW(60/80/100/150)MCCT(30/40/50)DLV 60/80/100/150W LED Post-Top Area Light 3000K/4000K/5000K 120-277V

The LEDone LOC-PT-MW(60/80/100/150)MCCT(30/40/50)DLV is a commercial-grade LED Post-Top Area Light engineered to deliver reliable illumination with exceptional energy efficiency and architectural appeal. Featuring selectable 60W, 80W, 100W, and 150W power settings along with selectable 3000K, 4000K, and 5000K color temperatures, this versatile luminaire allows installers to customize both light output and color appearance from a single fixture. Producing up to 20,897 lumens with efficacy up to 137.53 lumens per watt, it is ideal for municipal lots, parking decks, auto dealerships, housing complexes, parks, shopping malls, sporting complexes, and other commercial area lighting applications.

Constructed with a durable polyester powder-coated finish and equipped with premium Philips Lumileds 3030 LED chips, the fixture provides a wide 120° beam angle for uniform illumination. The rust and corrosion-proof housing, IP65 weather resistance, and standard 0-10V dimming ensure dependable performance in demanding outdoor environments. The built-in sensor base is compatible with optional microwave and PIR sensors, Bluetooth sensor options, and remote controls for advanced lighting automation.

Designed for years of maintenance-free operation, the LOC-PT-MW(60/80/100/150)MCCT(30/40/50)DLV mounts directly to standard 3-inch poles for quick installation. With a 50,000-hour rated life, a 5-year limited warranty, and DLC Premium certification, this LED post-top fixture is an excellent replacement for traditional 150W to 600W HID luminaires while significantly reducing maintenance and operating costs.

Technical Performance Specifications
