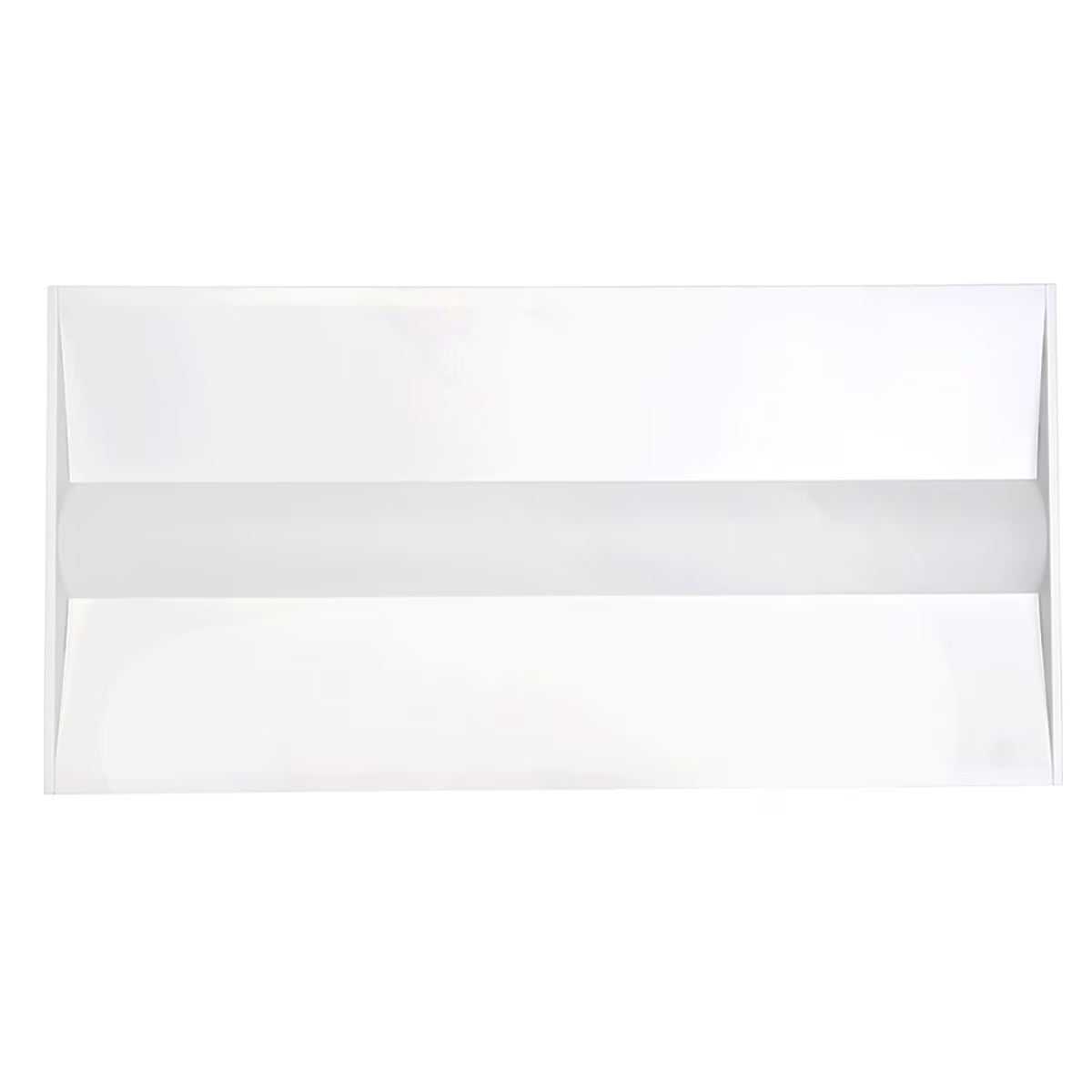

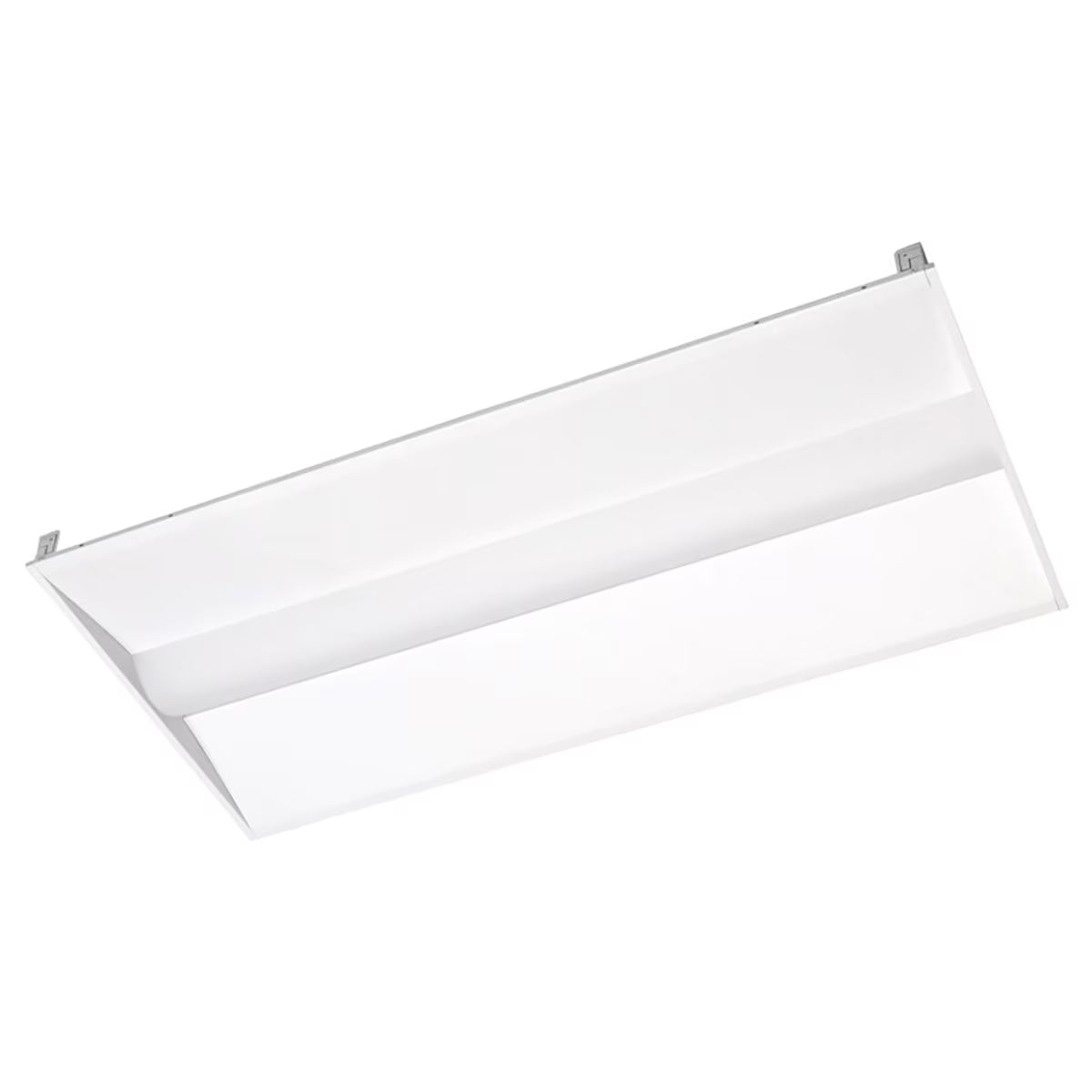

LEDONE TR0048 LOC-24TROF-DMWMCCT-EM 24/29/32/39W LED 2x4ft LED Troffer 3500K/4000K/5000K with Emergency Battery 120-277V

Identification & Application

LEDone TR0048 LOC-24TROF-DMWMCCT-EM 24/29/32/39W LED 2x4ft LED Troffer 3500K/4000K/5000K with Emergency Battery 120-277V

The LEDone TR0048 LOC-24TROF-DMWMCCT-EM is a wattage-selectable and color-selectable 2x4-foot LED troffer with an integrated 15W emergency backup battery, designed for commercial, institutional, and industrial interior lighting applications. Selectable 24W, 29W, 32W, or 39W operation combined with selectable 3500K, 4000K, or 5000K color temperatures allows installers to tailor light output and color appearance while reducing inventory requirements.

Constructed with a durable steel and aluminum frame in a matte white finish, the fixture uses Samsung 2835 LED chips and a glare-free optical system to deliver up to 4,941.3 lumens at an efficacy of 126.7 lumens per watt. The integrated 15W emergency battery provides illumination during power outages, while standard 0-10V dimming offers compatibility with modern lighting control systems.

Designed to fit most existing 2x4 troffer openings, the fixture supports recessed installation or optional surface mounting. Its universal 120-277VAC input, 110° beam angle, 100,000-hour rated life, and commercial-grade construction make it an excellent choice for offices, schools, warehouses, factories, supermarkets, logistics centers, exhibition halls, and other indoor commercial spaces.

Technical Performance Specifications
