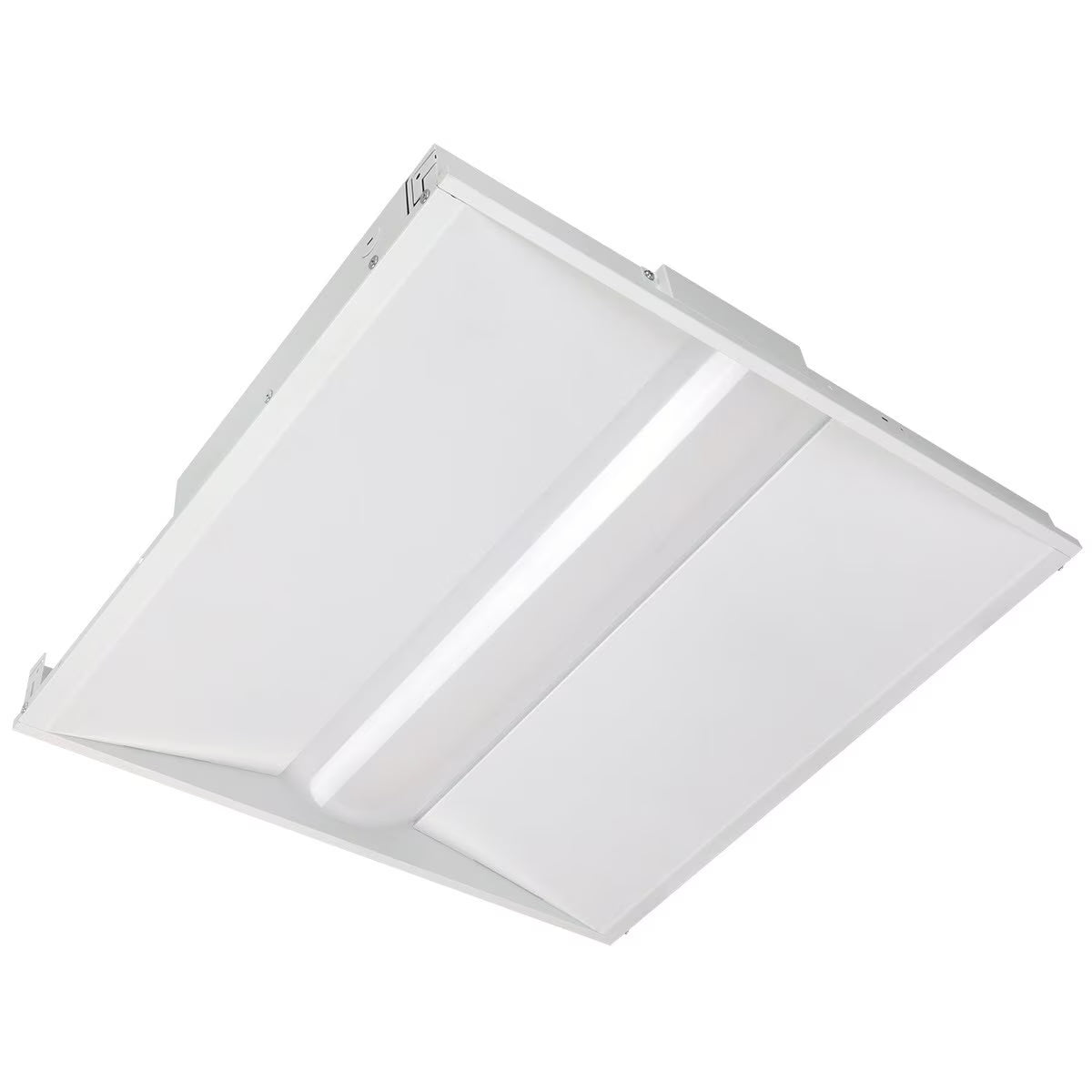

LEDONE TR0073 LOC-22TROF-MW(15/19/24/29)MCCT(35/40/50) 15/19/24/29W LED 2x2ft LED Troffer 3500K/4000K/5000K Sensor Ready 120-277V

Identification & Application

LEDone TR0073 LOC-22TROF-MW(15/19/24/29)MCCT(35/40/50) 15/19/24/29W LED 2x2ft LED Troffer 3500K/4000K/5000K Sensor Ready 120-277V

The LEDone TR0073 LOC-22TROF-MW(15/19/24/29)MCCT(35/40/50) is a wattage-selectable and color-selectable 2x2-foot LED troffer featuring a built-in motion sensor base. Selectable 15W, 19W, 24W, or 29W operation combined with selectable 3500K, 4000K, or 5000K color temperatures allows installers to customize light output and color appearance for commercial, educational, and industrial interior spaces.

Samsung 2835 LED chips deliver up to 3,770 lumens at an efficacy of 130 lumens per watt. The glare-free optical system and wide 110° beam angle provide comfortable, uniform illumination, while the steel and aluminum frame with matte white finish functions as a heat sink to help maintain cooler LED operating temperatures and support long fixture life.

The built-in sensor base accepts compatible motion sensors for occupancy-based lighting control. Universal 120-277VAC operation, standard 1-10V dimming, recessed or optional surface mounting, and a 100,000-hour rated lifetime make this troffer suitable for offices, schools, warehouses, factories, supermarkets, logistics centers, and exhibition halls.

Technical Performance Specifications
