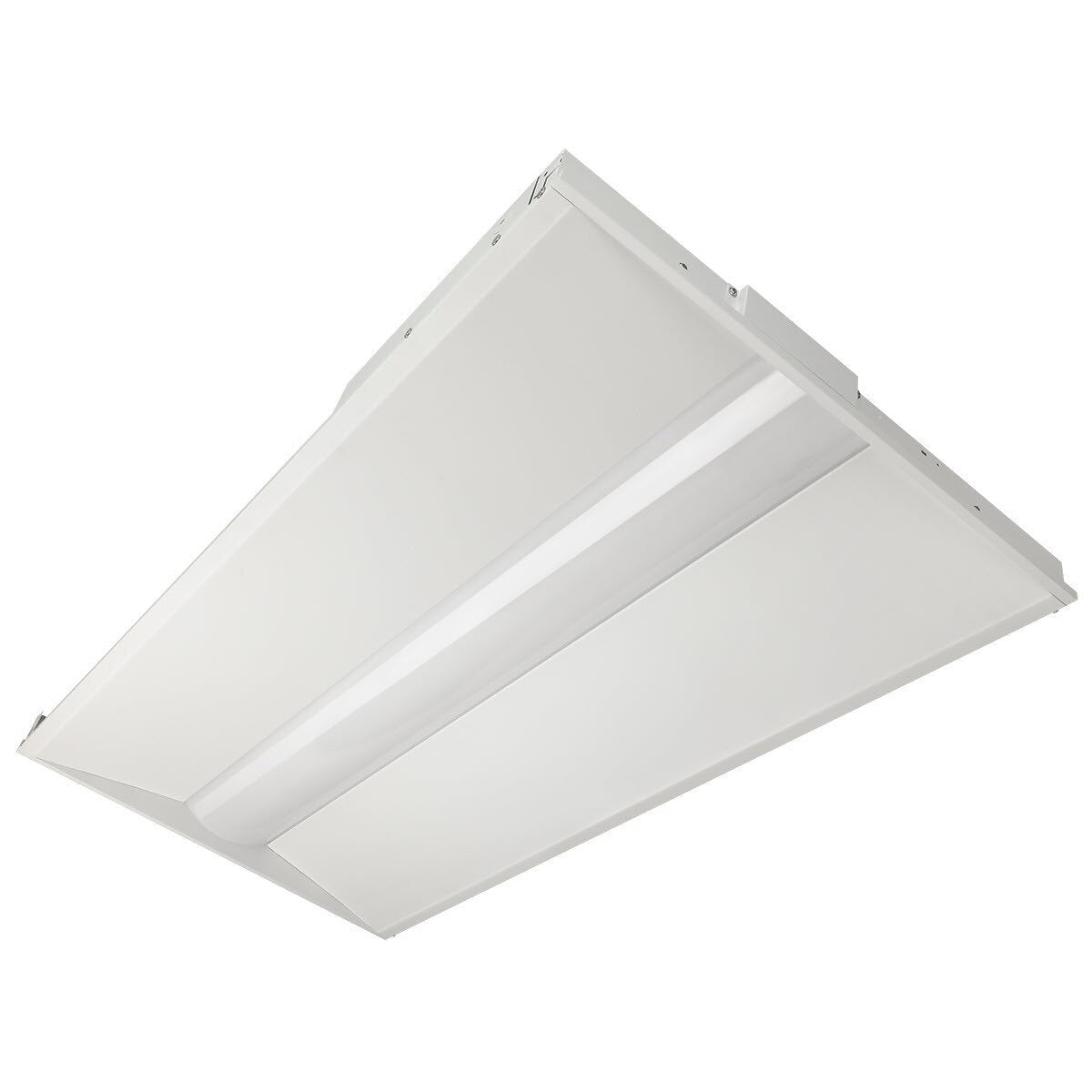

LEDONE TR0074 LOC-24TROF-MW(24/29/32/39)MCCT(35/40/50) 24/26/35/44W LED 2x4ft LED Troffer 3500K/4000K/5000K Sensor Ready 120-277V

Identification & Application

LEDone TR0074 LOC-24TROF-MW(24/29/32/39)MCCT(35/40/50) 24/26/35/44W LED 2x4ft LED Troffer 3500K/4000K/5000K Sensor Ready 120-277V

The LEDone TR0074 LOC-24TROF-MW(24/29/32/39)MCCT(35/40/50) is a wattage-selectable and color-selectable 2x4-foot LED troffer featuring a built-in motion sensor base. The manufacturer specification lists selectable 24W, 29W, 32W, or 39W operation with selectable 3500K, 4000K, or 5000K color temperatures, allowing installers to adjust light output and color appearance for a variety of commercial, educational, and industrial spaces.

Samsung 2835 LED chips deliver up to 5,070 lumens at an efficacy of 130 lumens per watt. The glare-free optical system and wide 110° beam angle provide comfortable, uniform illumination, while the steel and aluminum frame with matte white finish functions as a heat sink to help keep the LEDs cooler and support long fixture life.

The built-in sensor base accepts compatible motion sensors for occupancy-based lighting control. Universal 120-277VAC operation, standard 1-10V dimming, recessed or optional surface mounting, and a 100,000-hour rated lifetime make this troffer suitable for offices, schools, warehouses, factories, supermarkets, logistics centers, and exhibition halls.

Technical Performance Specifications
