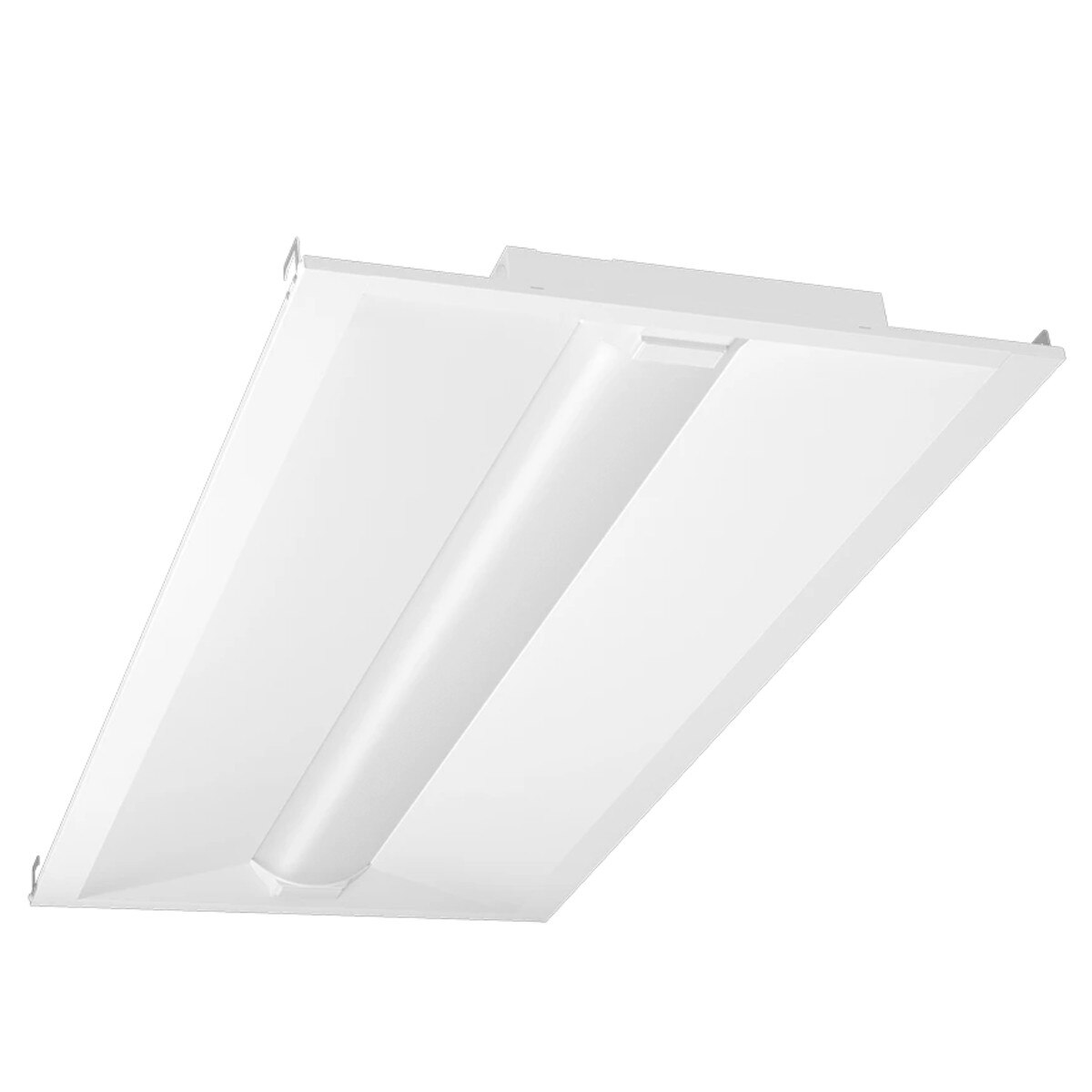

LEDONE TR0081 LOC-24HTR-MW40WMCCT 30/35/40W LED 2x4ft LED Troffer CCT Tunable 3000K-6500K Sensor Ready 120-277V

Identification & Application

LEDone TR0081 LOC-24HTR-MW40WMCCT 30/35/40W LED 2x4ft LED Troffer, CCT Tunable 3000K-6500K, Sensor Ready, 120-277V

The LEDone LOC-24HTR-MW40WMCCT is a commercial-grade 2x4 LED troffer engineered to deliver high-performance, energy-efficient illumination for demanding indoor commercial environments. Featuring field-selectable 30W, 35W, and 40W power settings together with selectable color temperatures from 3000K to 6500K, this fixture provides outstanding installation flexibility while allowing lighting levels and color appearance to be customized from a single fixture. Producing up to 5,600 lumens with an efficacy of 140 lumens per watt, an 80 CRI, and a 97° beam angle, it delivers uniform, glare-free illumination for warehouses, schools, manufacturing facilities, convention centers, offices, supermarkets, logistics centers, big-box retail stores, exhibition halls, and gymnasiums.

Constructed from durable sheet metal with all-steel surfaces finished in a high-gloss powder-coated finish, the LOC-24HTR-MW40WMCCT combines a slim-profile design with dependable long-term durability. The fixture operates on universal 120-277V input power and features a 0-10V dimming driver, high-efficiency surface-mount LEDs, dual power supply design, and a built-in sensor base for convenient installation of optional smart occupancy sensors. It supports both recessed T-bar installations and surface mounting, making it an excellent solution for both new construction and retrofit applications while simplifying installation and future maintenance.

Designed for years of dependable commercial operation, this LED troffer is rated for up to 100,000 operating hours at 35°C ambient temperature and is backed by a 5-year limited warranty. The fixture is IP20 rated, DLC Premium Listed, and UL Certified for reliable performance in commercial applications. Optional accessories including PIR sensors, Bluetooth PIR sensors, emergency battery backup kits, and remote controls provide expanded lighting control, emergency operation, and energy-saving functionality while allowing the fixture to adapt to a variety of building requirements.

Technical Performance Specifications
