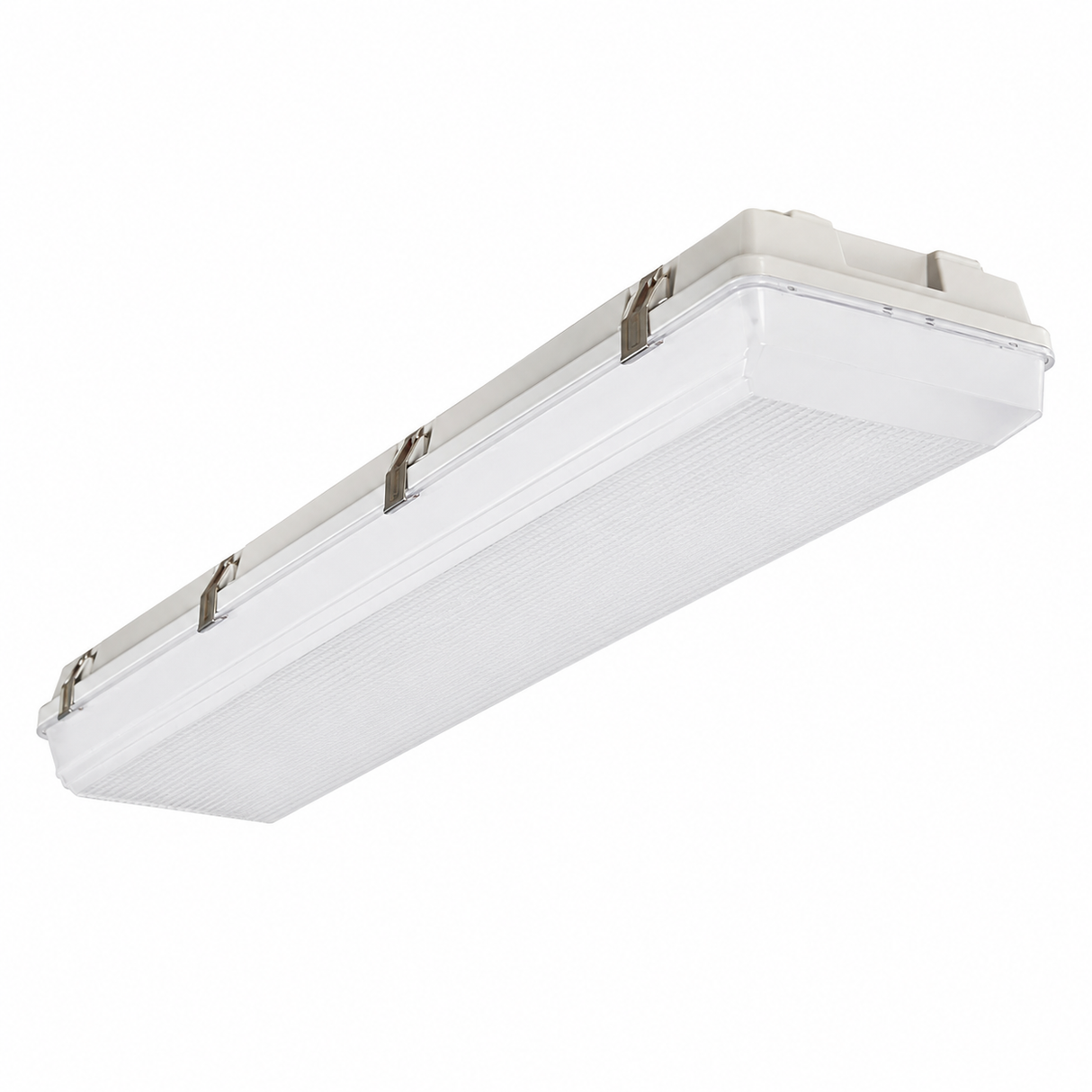

LEDONE VT0022 LOC-4FTVTHB-MW(60/75/90) MCCT(35/40/50) 60/75/90W LED 4ft Linear Vapor High Bay Fixture 3500K/4000K/5000K 120-277V

Identification & Application

LEDone VT0022 LOC-4FTVTHB-MW(60/75/90)MCCT(35/40/50) 60/75/90W LED 4ft Linear Vapor High Bay Fixture 3500K/4000K/5000K 120-277V

The LEDone VT0022 LOC-4FTVTHB-MW(60/75/90)MCCT(35/40/50) is a field-selectable 4-foot LED vapor tight high bay fixture designed for demanding commercial and industrial lighting applications. Offering selectable wattages of 60W, 75W, and 90W along with field-selectable color temperatures of 3500K, 4000K, and 5000K, this versatile fixture delivers lumen outputs ranging from 8,916 to 13,374 lumens with an efficacy of up to 148.6 lumens per watt. Equipped with Lumiled 2835 LED chips and a 110° beam angle, it provides bright, uniform illumination for warehouses, food and beverage facilities, refrigerated storage rooms, underground parking garages, tunnels, and manufacturing facilities.

Built with a durable polycarbonate housing, white cover, and stainless steel clips, this vapor tight fixture is engineered for long-term performance in harsh environments. Featuring an IK10 impact rating and IP65 protection, the fixture is dust-tight and NSF rated for splash zone and non-food zone applications. Universal 120-277V operation, standard 0-10V dimming, auxiliary 12V output, and selectable wattage and CCT switches provide exceptional installation flexibility. The fixture supports both surface and suspension mounting and offers linkable installation capabilities for larger lighting systems.

Designed for maximum reliability, the LEDone LOC-4FTVTHB-MW(60/75/90)MCCT(35/40/50) is rated for an impressive 100,000-hour service life and is backed by a 5-year limited warranty. The fixture is DLC Listed, UL Certified, NSF rated, and available with a TAA-compliant option for qualifying projects. Optional accessories including occupancy sensors, remote controls, and emergency drivers further enhance its versatility, making this fixture an excellent solution for demanding industrial and commercial environments.

Technical Performance Specifications
