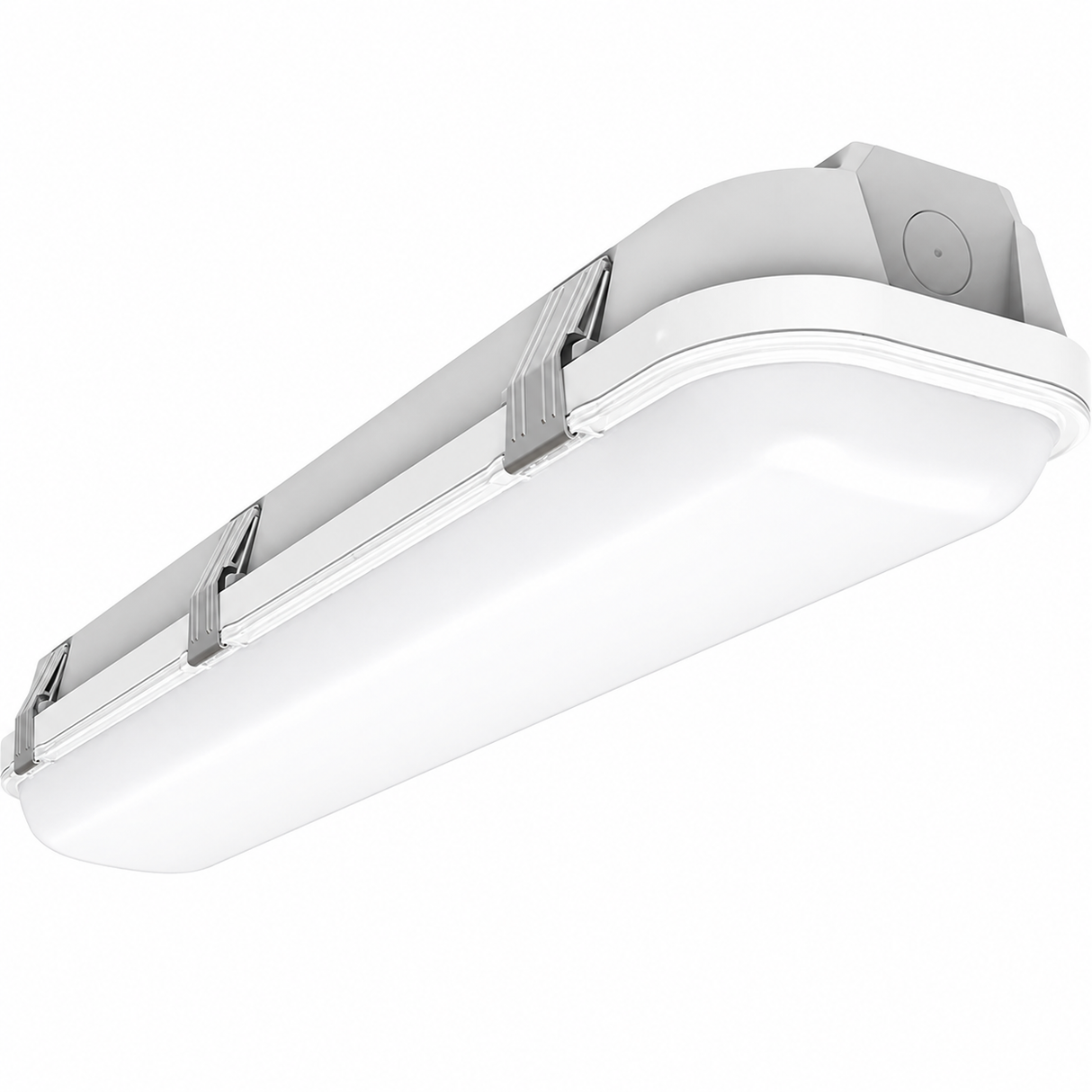

LEDONE VT0033 LOC-2FTHVT-MW20W3CCT 10/15/20W LED 2ft Linear Vapor Fixture 3500K/4000K/5000K 120-277V

Identification & Application

LEDone VT0033 LOC-2FTHVT-MW20W3CCT 10/15/20W LED 2ft Linear Vapor Fixture 3500K/4000K/5000K 120-277V

The LEDone VT0033 LOC-2FTHVT-MW20W3CCT is a compact 2-foot LED vapor tight fixture designed for demanding indoor and outdoor commercial environments. Featuring selectable wattages of 10W, 15W, and 20W along with field-selectable color temperatures of 3500K, 4000K, and 5000K, this versatile fixture delivers lumen outputs ranging from 1,500 to 3,000 lumens while maintaining an excellent efficacy of 150 lumens per watt. Equipped with high-performance Seoul LED chips and a wide 112° beam angle, it provides bright, uniform illumination for warehouses, factories, vessels, tunnels, car washes, cold storage facilities, and logistics centers.

Constructed with a rugged polycarbonate housing, white cover, and stainless-steel clips, this vapor tight fixture is engineered to perform reliably in harsh environments. The IP66-rated enclosure protects against dust and water intrusion, while the IK08 impact rating provides additional durability. Operating on universal 120-277V input, the fixture includes standard 0-10V dimming, field-selectable wattage and CCT switches, and supports either surface mounting or V-hook suspension. Its linkable design simplifies larger installations while reducing wiring requirements.

Designed for long-term reliability, the LEDone LOC-2FTHVT-MW20W3CCT is rated for an impressive 100,000-hour service life and is backed by a 5-year limited warranty. DLC Premium Listed and UL Certified, the fixture operates in temperatures ranging from -40°F to 104°F (-40°C to 40°C). Optional microwave occupancy sensors and emergency drivers provide additional flexibility, making this fixture an excellent lighting solution for commercial, industrial, and utility applications.

Technical Performance Specifications
