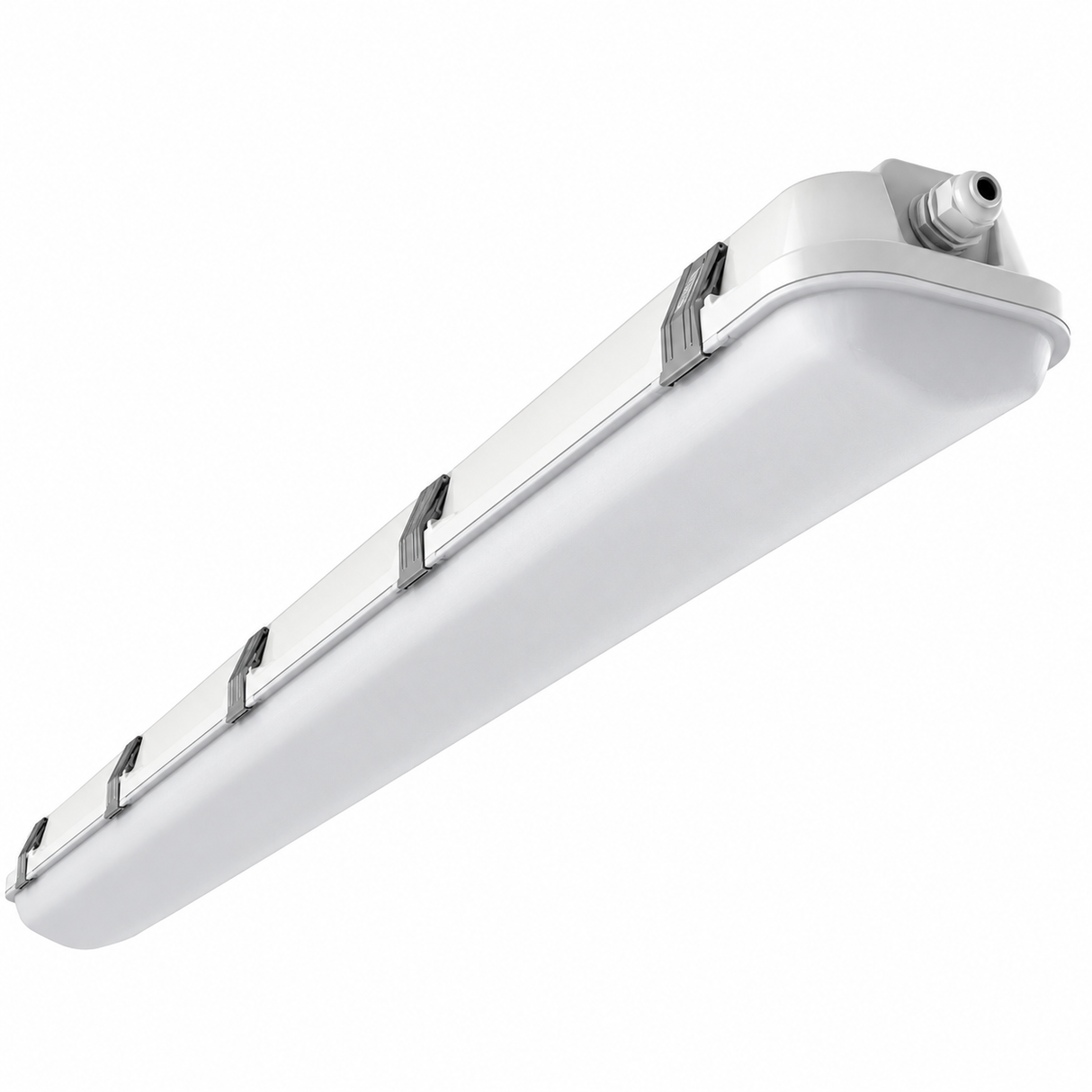

LEDONE VT0034 LOC-4FTHVT-MW40W3CCT 20/30/40W LED 4ft Linear Vapor Fixture 3500K/4000K/5000K 120-277V

Identification & Application

LEDone VT0034 LOC-4FTHVT-MW40W3CCT 20/30/40W LED 4ft Linear Vapor Fixture 3500K/4000K/5000K 120-277V

The LEDone VT0034 LOC-4FTHVT-MW40W3CCT is a versatile 4-foot LED vapor tight fixture engineered for demanding commercial and industrial environments. Featuring selectable wattages of 20W, 30W, and 40W along with field-selectable color temperatures of 3500K, 4000K, and 5000K, this fixture delivers lumen outputs ranging from 3,000 to 6,000 lumens while maintaining an impressive efficacy of 150 lumens per watt. High-performance Seoul LED chips and a wide 112° beam angle provide bright, uniform illumination for warehouses, factories, tunnels, car washes, logistics centers, vessels, and cold storage facilities.

Built with a durable polycarbonate housing, white cover, and stainless-steel clips, this vapor tight fixture is designed to withstand harsh operating conditions. The IP66-rated enclosure protects against water and dust intrusion while the IK08 impact rating ensures long-lasting durability. Operating on universal 120-277V input, the fixture features standard 0-10V dimming, field-selectable wattage and CCT switches, and supports either surface mounting or V-hook suspension. Its linkable design simplifies installation while reducing wiring requirements for larger projects.

Engineered for dependable long-term performance, the LEDone LOC-4FTHVT-MW40W3CCT is rated for an exceptional 100,000-hour service life and is backed by a 5-year limited warranty. DLC Premium Listed and UL Certified, the fixture operates in temperatures ranging from -40°F to 104°F (-40°C to 40°C). Optional microwave occupancy sensors and emergency drivers provide additional flexibility, making this fixture an ideal lighting solution for commercial, industrial, and utility applications.

Technical Performance Specifications
