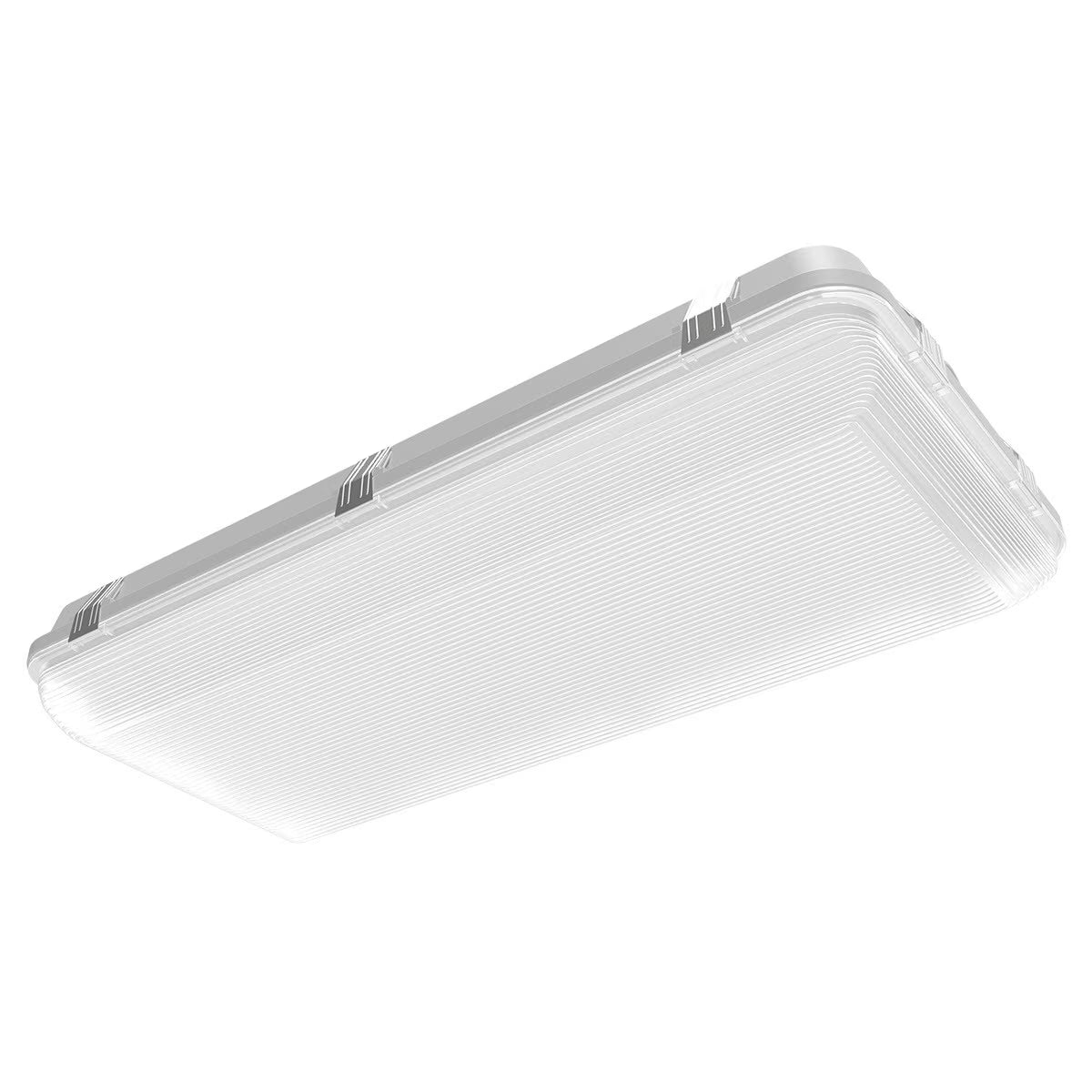

LEDONE VT0036 LOC-2FTHVTHB-MW90W3CCT 60/75/90W LED 2ft Linear Vapor High Bay Fixture 3500K/4000K/5000K 120-277V

Identification & Application

LEDone VT0036 LOC-2FTHVTHB-MW90W3CCT 60/75/90W LED 2ft Linear Vapor High Bay Fixture 3500K/4000K/5000K 120-277V

The LEDone VT0036 LOC-2FTHVTHB-MW90W3CCT is a field-selectable 2-foot LED linear vapor tight high bay fixture engineered for demanding commercial and industrial environments. Featuring selectable wattages of 60W, 75W, and 90W along with field-selectable color temperatures of 3500K, 4000K, and 5000K, this versatile fixture provides lumen outputs ranging from 9,300 to 13,950 lumens while maintaining an impressive efficacy of 155 lumens per watt. Utilizing high-performance Seoul LED chips with a 108° beam angle, it delivers bright, uniform illumination for food and beverage facilities, warehouses, refrigerated storage rooms, tunnels, underground parking structures, and heavy manufacturing environments.

Constructed with a durable polycarbonate housing, frosted lens, and stainless steel lens clips, this vapor tight fixture is designed to withstand harsh operating conditions. The IP66-rated and IK08 impact-resistant housing provides superior protection against moisture, dust, and mechanical impacts, while the environmentally friendly powder-coated reflector is mercury and UV free. Operating on universal 120-277V input, the fixture features smooth 0-10V dimming, selectable wattage and CCT switches, and supports either surface mounting or V-hook suspension. It also offers linkable installation capabilities and is compatible with an optional microwave motion sensor and emergency driver for expanded functionality.

Designed for exceptional reliability, the LEDone LOC-2FTHVTHB-MW90W3CCT is rated for an impressive 100,000-hour service life and is backed by a 5-year limited warranty. The fixture is DLC Premium Listed and UL Certified while operating in ambient temperatures ranging from -40°F to 104°F (-40°C to 40°C). Combining outstanding efficiency, rugged construction, field-adjustable performance, and flexible installation options, this vapor tight high bay fixture is an ideal lighting solution for demanding industrial and commercial applications.

Technical Performance Specifications
