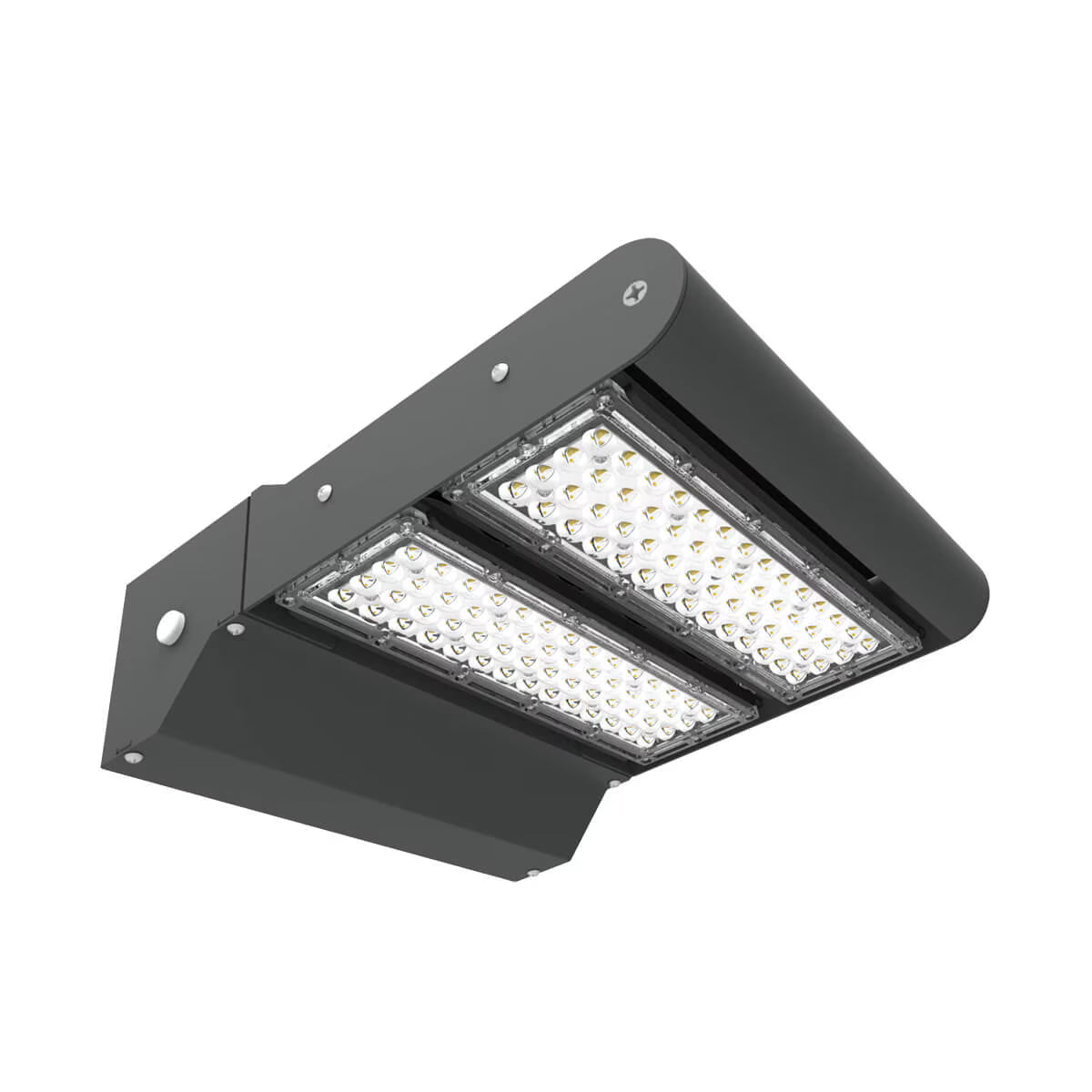

LEDONE WP0040 LOD-MSL-WP90W-50K 90W LED Adjustable Modular Full Cut-Off Wall Pack 5000K with Photocell 100-277V

Identification & Application

LEDone WP0039 LOD-MSL-WP60W-50K 60W LED Adjustable Modular Full Cut-Off Wall Pack 5000K with Photocell 100-277V

The LEDone WP0039 LOD-MSL-WP60W-50K is a high-performance modular LED full cut-off wall pack designed to deliver dependable exterior illumination for commercial and industrial facilities. Operating at 60 watts and producing 6,806 lumens with an efficacy of 126.51 lumens per watt, this fixture delivers bright 5000K daylight illumination using premium Philips Lumileds 3030 LED chips. Its optimized 70° × 135° beam pattern provides broad, uniform light distribution while minimizing glare and unwanted light spill, making it ideal for parking areas, building perimeters, loading docks, and security lighting.

Built with a rugged heavy-duty die-cast aluminum housing and premium tempered glass optics, the fixture is engineered for years of reliable outdoor service. A durable polyester powder-coated finish resists rust, corrosion, cracking, and peeling caused by harsh environmental conditions. Operating on universal 100-277V input, the wall pack includes an integrated photocell for automatic dusk-to-dawn operation and features a wall-mounted design for simple installation and minimal maintenance.

Designed for long-term performance, the LOD-MSL-WP60W-50K offers a rated life of 50,000 hours and is backed by a 5-year limited warranty. The IP65-rated enclosure provides protection against dust and water, while the energy-efficient LED system serves as an excellent replacement for traditional 150W HID wall packs, reducing both operating costs and maintenance requirements for commercial lighting installations.

Technical Performance Specifications
