LEDONE WP0117 LOC-WP-120MW(60/80/100/120)MCCT(30/40/50)DHV 60/80/100/120W LED Wall Pack 3000K/4000K/5000K 347-480V

Identification & Application

LEDone WP0117 LOC-WP-120MW(60/80/100/120)MCCT(30/40/50)DHV 60/80/100/120W LED Wall Pack 3000K/4000K/5000K 347-480V

The LEDone WP0117 LOC-WP-120MW(60/80/100/120)MCCT(30/40/50)DHV is a high-performance commercial LED wall pack featuring field-selectable wattages of 60W, 80W, 100W, and 120W along with selectable color temperatures of 3000K, 4000K, and 5000K. Designed for 347-480VAC electrical systems, this versatile fixture allows installers to adjust light output and color temperature on-site, reducing inventory while providing exceptional flexibility for commercial and industrial lighting projects. A built-in photocell and standard 0-10V dimming provide additional energy-saving control options.

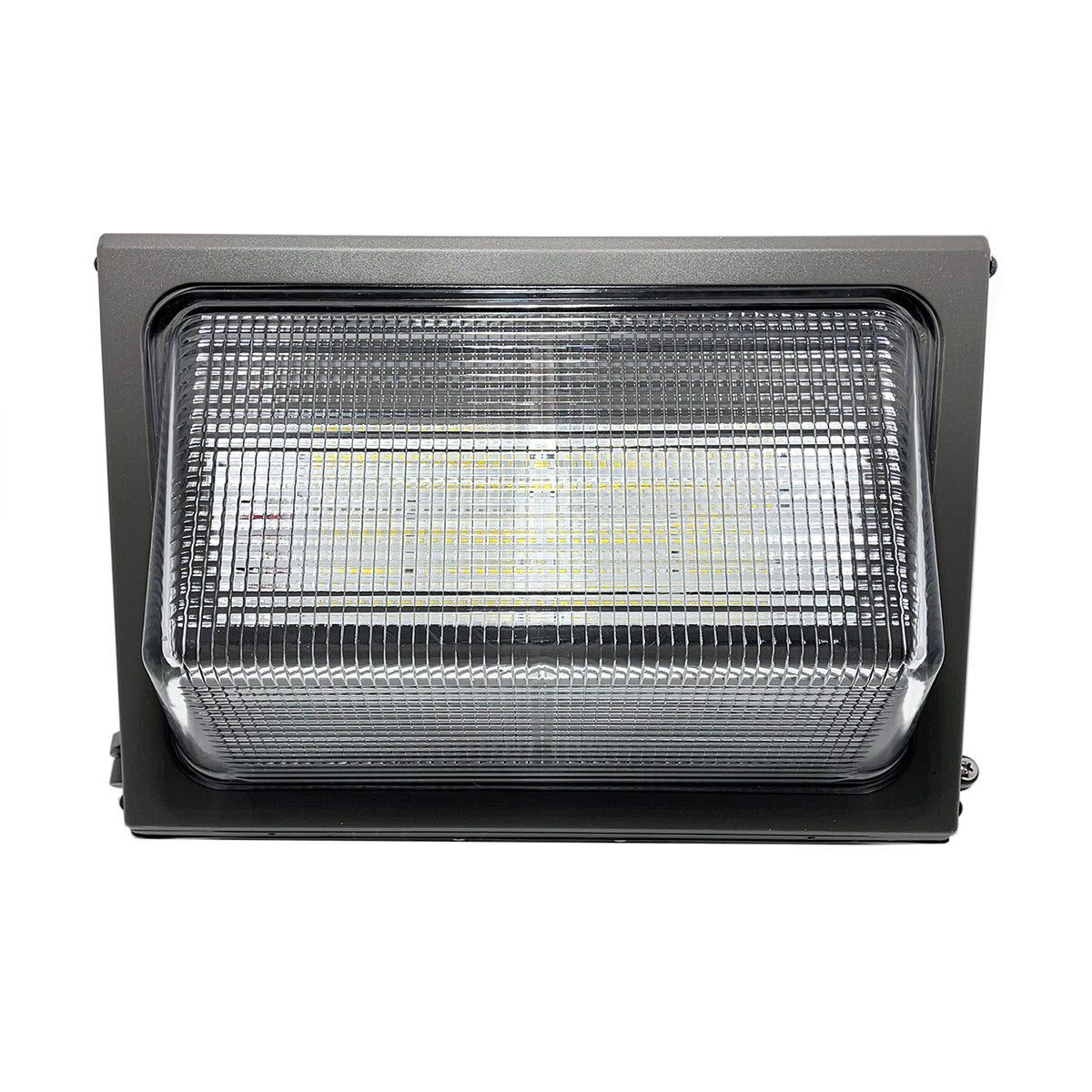

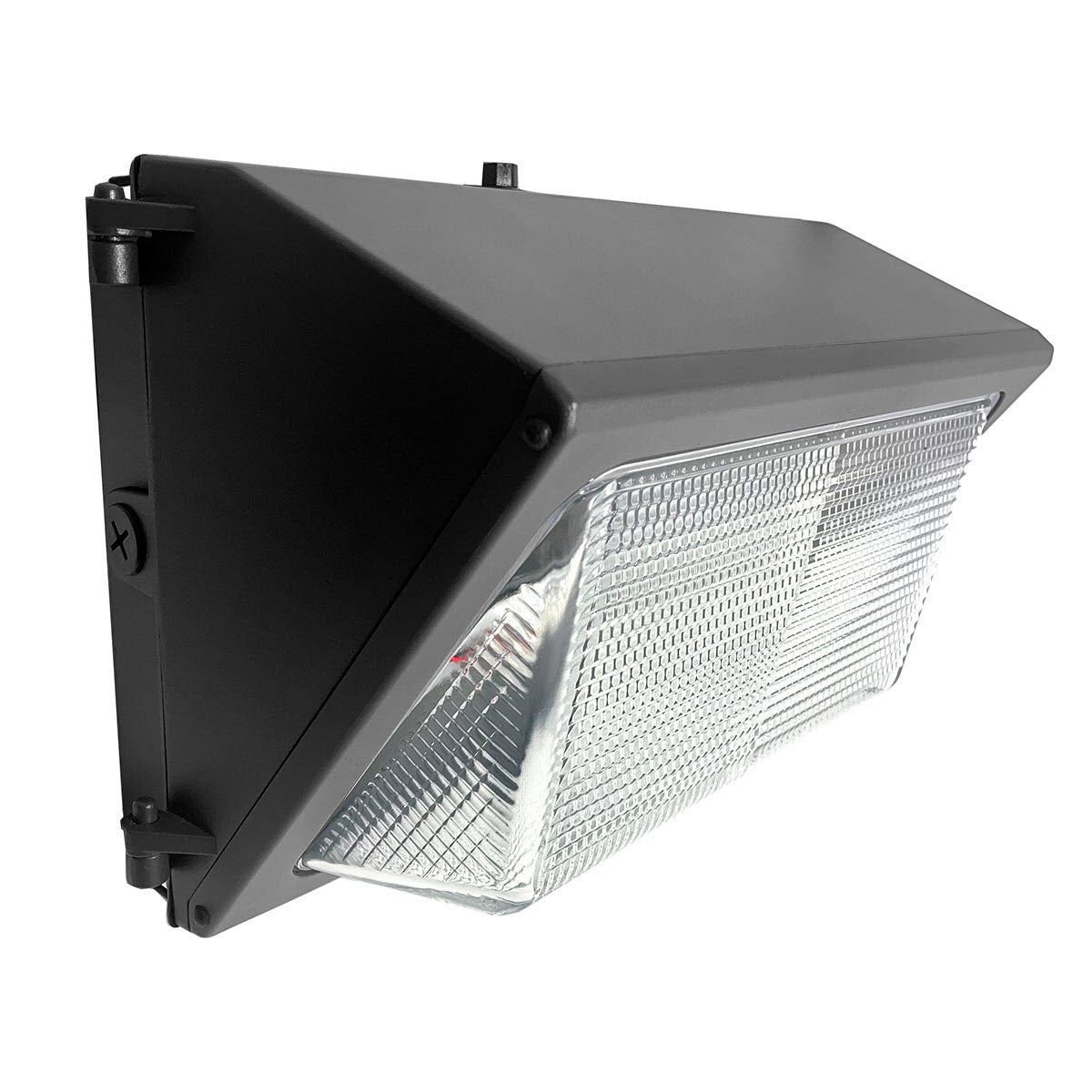

Constructed with a heavy-duty die-cast aluminum housing finished in corrosion-resistant bronze powder coating, the fixture utilizes premium Lumileds LUXEON 3030 2D LED chips and tempered glass optics to deliver uniform illumination through a wide 120° beam angle. The semi cut-off design minimizes uplight while providing excellent forward light distribution for building perimeters, parking areas, loading docks, and pedestrian pathways. An IP65-rated enclosure ensures dependable operation in demanding outdoor environments.

Delivering up to 16,800 lumens at the highest output setting with an efficacy of 140 lumens per watt, this wall pack is designed to replace HID fixtures up to 400 watts while significantly reducing energy consumption and maintenance costs. The fixture includes a quick-mount back plate for fast installation, operates in temperatures from -40°F to 104°F, and is ideal for warehouses, factories, shopping centers, logistics facilities, auto dealerships, stadiums, supermarkets, and other commercial exterior lighting applications. Optional cut-off shields and wire guards are available for added protection and light control.

Technical Performance Specifications
