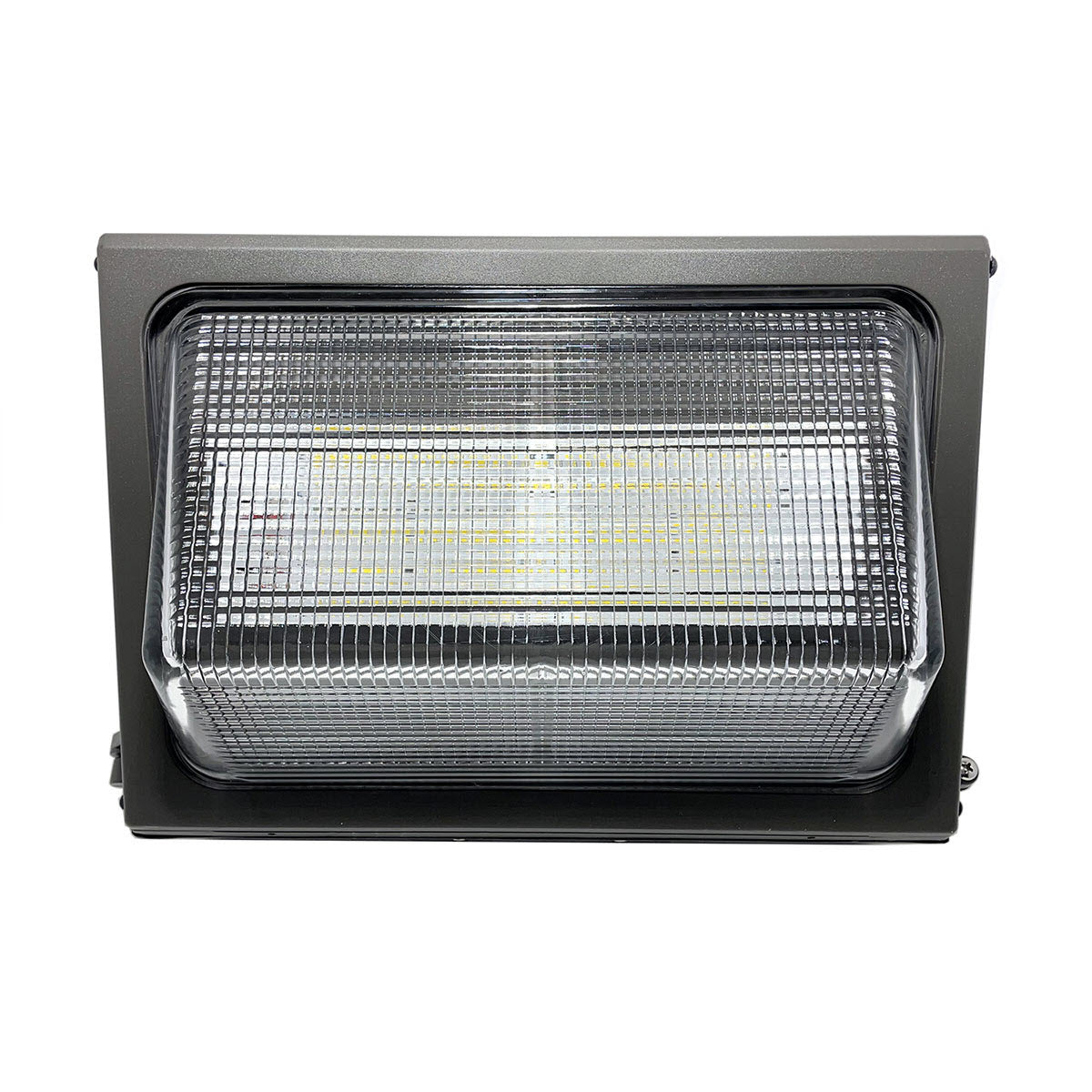

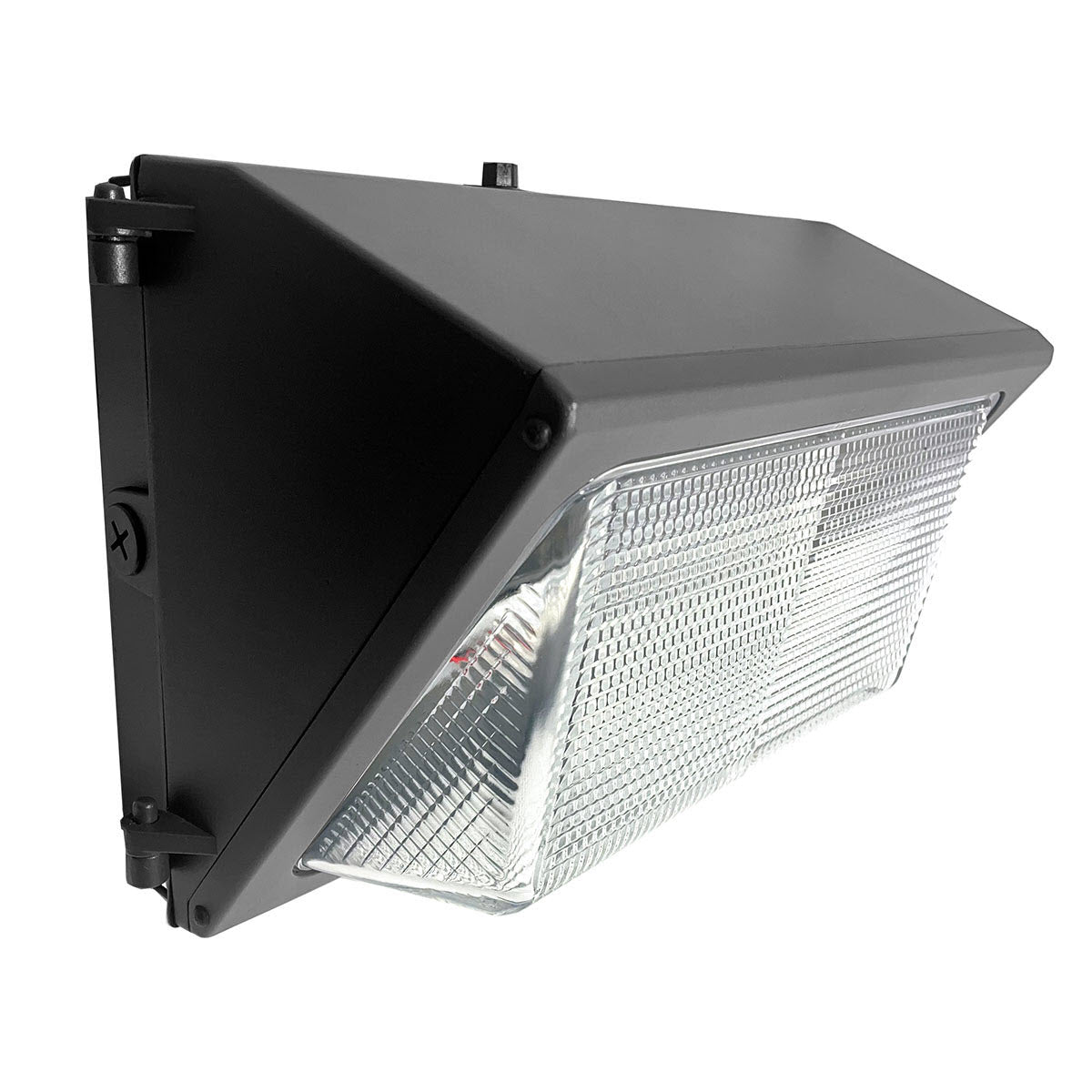

LEDONE WP0122 LOC-WP-80MW(25/40/60/80)MCCT(30/40/50)DLV 25/40/60/80W LED Wall Pack 3000K/4000K/5000K TAA Compliant 120-277V

Identification & Application

LEDone WP0122 LOC-WP-80MW(25/40/60/80)MCCT(30/40/50)DLV 25W/40W/60W/80W LED Wall Pack 3000K/4000K/5000K TAA Compliant 120-277V

The LEDone WP0122 LOC-WP-80MW(25/40/60/80)MCCT(30/40/50)DLV is a premium TAA-compliant commercial LED wall pack featuring field-selectable wattages of 25W, 40W, 60W, and 80W along with selectable 3000K, 4000K, and 5000K color temperatures. Designed for universal 120-277VAC electrical systems, this versatile fixture allows installers to optimize both light output and color temperature during installation, minimizing inventory while providing exceptional flexibility for commercial and industrial exterior lighting applications. An integrated photocell and standard 0-10V dimming maximize energy savings through automatic dusk-to-dawn operation and advanced lighting control.

Constructed with a rugged heavy-duty die-cast aluminum housing finished in a corrosion-resistant bronze powder coat, the fixture utilizes premium Lumileds LUXEON 3030 2D LED chips and tempered glass optics to produce uniform illumination through a wide 120° beam angle. Its semi cut-off optical design minimizes uplight while directing light toward building perimeters, loading docks, parking lots, walkways, and security areas. The IP65-rated enclosure ensures dependable performance in wet locations and demanding outdoor environments.

Delivering up to 11,168 lumens at the highest wattage setting with efficacy up to 139.6 lumens per watt, this LED wall pack replaces HID fixtures from 70W up to 250W while significantly reducing energy consumption and maintenance costs. A quick-mount back plate simplifies installation, while reliable operation from -40°F to 104°F makes this fixture ideal for warehouses, factories, shopping centers, parking lots, logistics facilities, auto dealerships, stadiums, commercial buildings, and security lighting. Optional cut-off shields and wire guards are available for enhanced protection and light control.

Technical Performance Specifications
