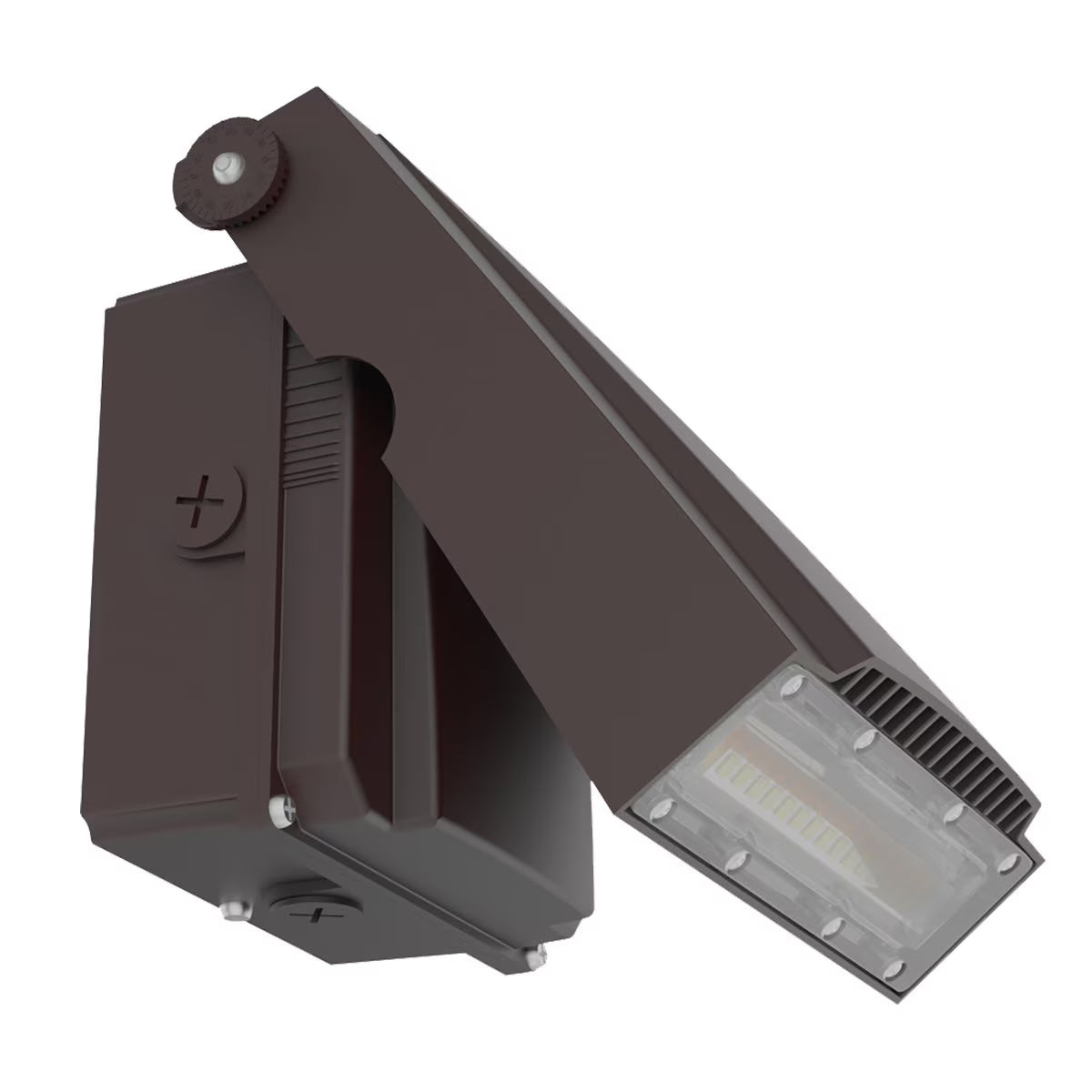

LEDONE WP0127 LOC-AWP-MW(20/30/40/50) MCCT(30/40/50)D 20/30/40/50W LED Adjustable Wall Pack 3000K/4000K/5000K with Photocell 120-347V

Identification & Application

LEDone WP0127 LOC-AWP-MW(20/30/40/50)MCCT(30/40/50)D 20/30/40/50W LED Adjustable Wall Pack 3000K/4000K/5000K with Photocell 120-347V

The LEDone WP0127 LOC-AWP-MW(20/30/40/50)MCCT(30/40/50)D is a versatile LED adjustable wall pack engineered for commercial, industrial, and municipal outdoor lighting applications. Featuring field-selectable wattages of 20W, 30W, 40W, and 50W together with selectable color temperatures of 3000K, 4000K, and 5000K, this fixture delivers up to 6,000 lumens while maintaining an efficacy of 120 lumens per watt. Its adjustable housing and 100° beam angle provide flexible light distribution for building exteriors, parking areas, walkways, loading docks, and security lighting.

Constructed with a rugged heavy-duty die-cast aluminum housing and durable polyester powder-coated finish, the fixture is designed for years of dependable outdoor performance. Premium Philips Lumiled 3030 LED chips, tempered glass optics, and an integral secondary heat sink maximize thermal management and long-term reliability. Universal 120-347V input, standard 0-10V dimming, and an integrated photocell provide energy-efficient dusk-to-dawn operation while reducing maintenance requirements.

Rated for 50,000 hours of service life and backed by a 5-year limited warranty, the LOC-AWP-MW(20/30/40/50)MCCT(30/40/50)D is IP65 rated, DLC Premium Listed, and ETL Listed for dependable commercial use. The fixture is well suited for residential complexes, parking decks, shopping malls, sporting complexes, logistics centers, auto dealerships, municipal facilities, and other outdoor security lighting applications.

Technical Performance Specifications
