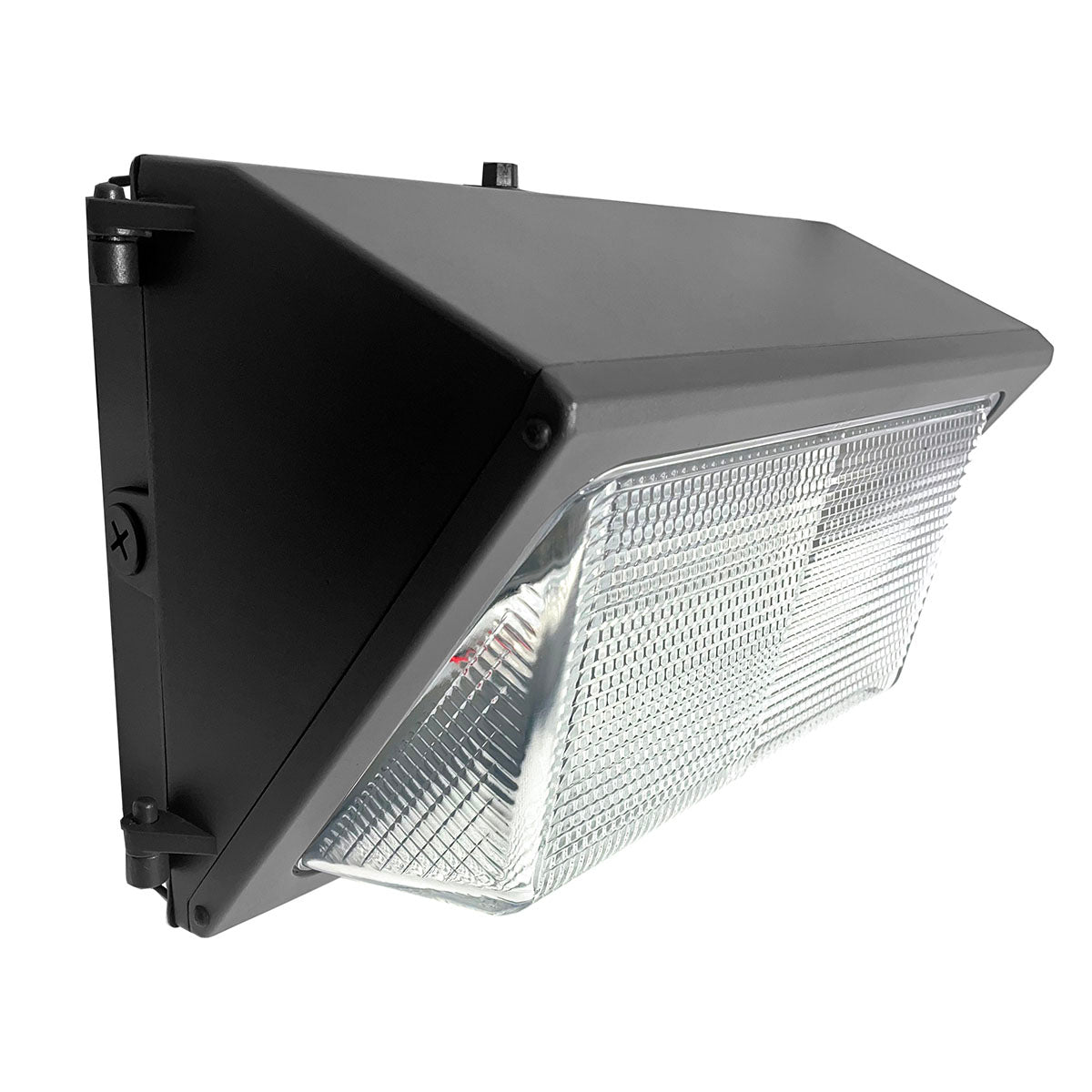

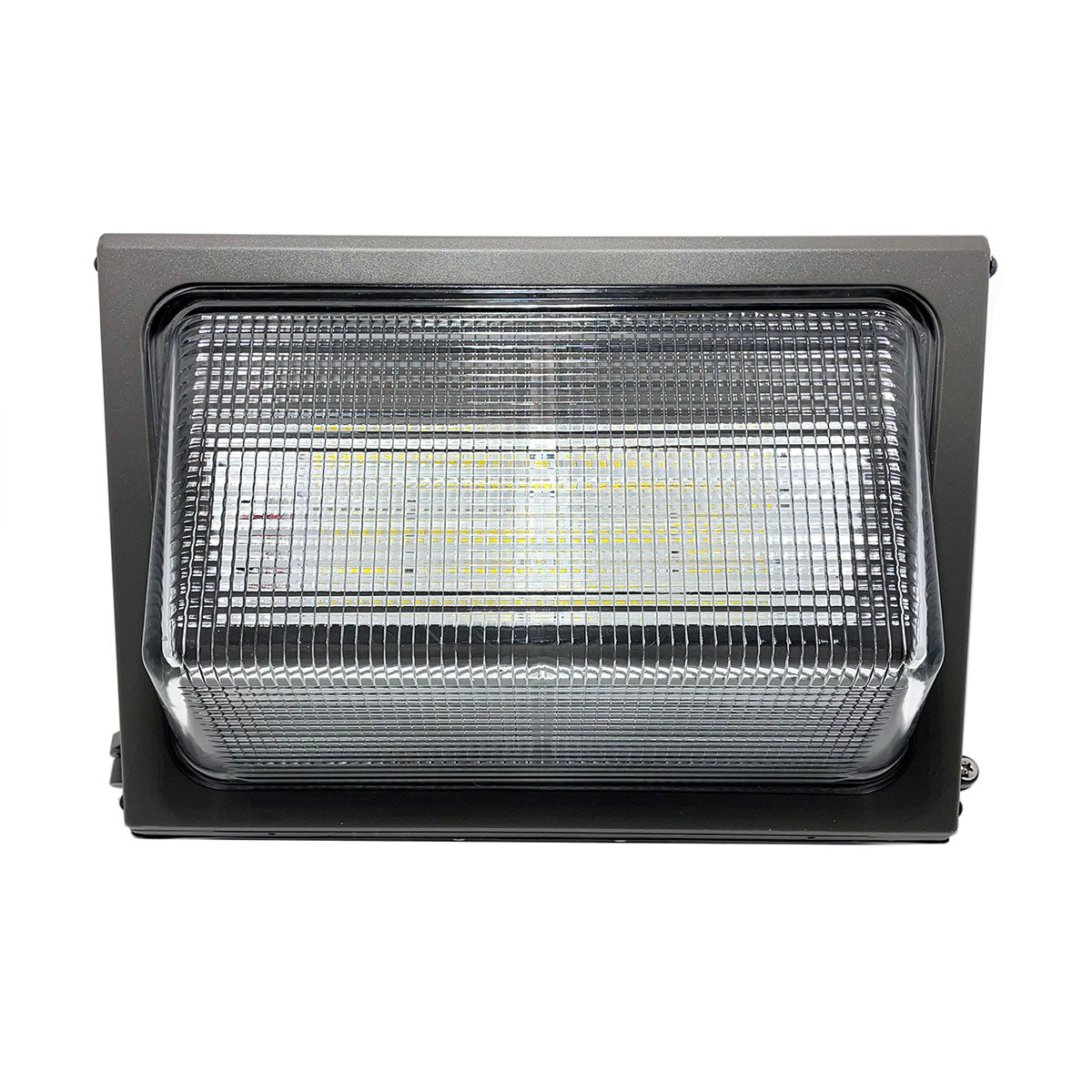

LEDone LOC-WP-MW(20/25/40/60)50KDLV 20W/25W/40W/60W LED Wall Pack TAA Compliant 5000K 120-277V

Identification & Application

The LEDone LOC-WP-MW(20/25/40/60)50KDLV is a selectable wattage LED Wall Pack engineered for exterior security and perimeter lighting in commercial and industrial applications. The fixture provides field-selectable outputs of 20W, 25W, 40W, or 60W with a fixed 5000K color temperature for daylight visibility. It operates on a 120-277V input range and supports 0-10V dimming control integration. An integrated photocell enables automatic dusk-to-dawn operation. The wall-mounted configuration is suitable for building facades, loading docks, walkways, and service entrances requiring forward light distribution.

Technical Performance Specifications

• Brand: LEDone
• SKU/MPN: LOC-WP-MW(20/25/40/60)50KDLV
• Product Type: LED Wall Pack
• Installation Type: Wall Mounted
• Electrical: 120-277V, 50/60Hz, 20W/25W/40W/60W selectable
• Optical: 5000K, 20W - 2700 lm, 25W - 3375 lm, 40W - 5400 lm, 60W - 8100 lm, 120 deg beam angle
• Mechanical: Die-cast aluminum housing, glass lens, powder-coated finish, IP65 rated
• Compliance: TAA Compliant
• Control Compatibility: 0-10V dimming compatible with standard 0-10V control systems, integrated photocell for automatic daylight switching
• Documentation: See manufacturer spec sheet for additional details

Application Guidance

Confirm branch circuit voltage is within the 120-277V operating range prior to installation. Select the appropriate wattage setting based on mounting height and required illumination levels before energizing the fixture. Connect 0-10V dimming leads to compatible control devices where variable light output is required. The integrated photocell may be utilized for automatic dusk-to-dawn control in exterior applications. Suitable for commercial and municipal installations requiring selectable output and controlled perimeter lighting.
