LEDONE WP0134 LOC-WP-MW(60/80/100/120)50KDLV 60/80/100/120W LED Wall Pack 5000K TAA Compliant 120-277V

Identification & Application

LEDone WP0134 LOC-WP-MW(60/80/100/120)50KDLV 60W/80W/100W/120W LED Wall Pack 5000K TAA Compliant 120-277V

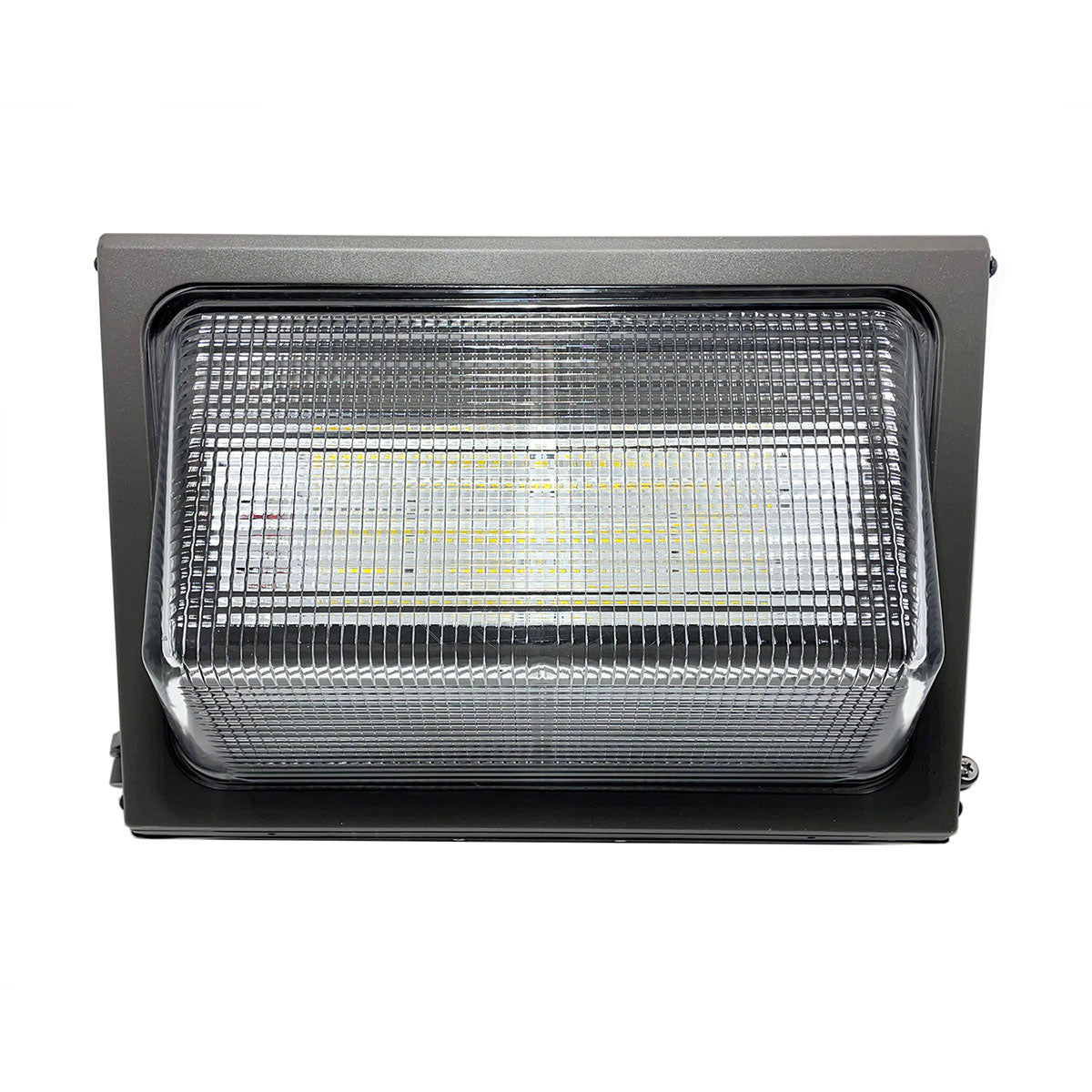

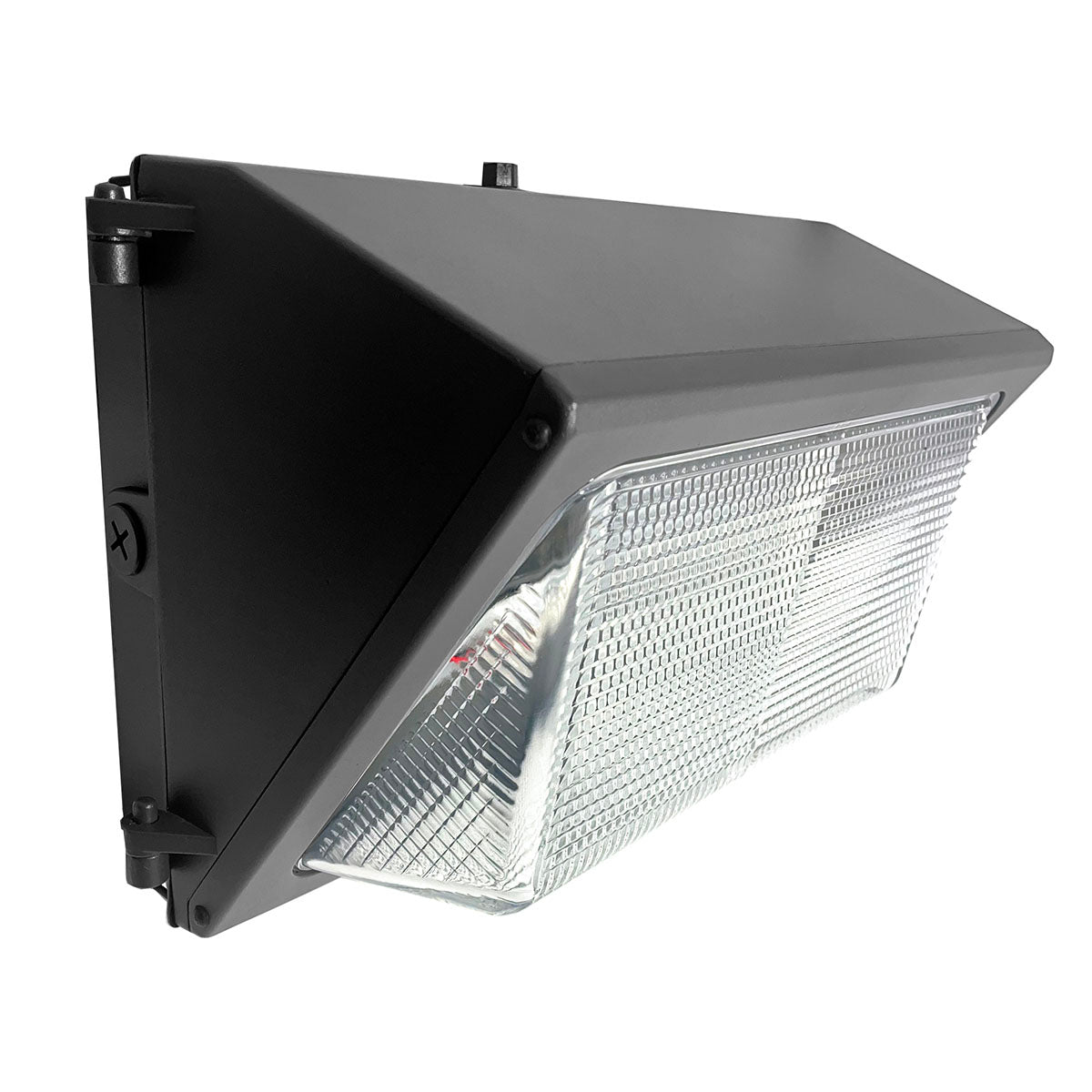

The LEDone WP0134 LOC-WP-MW(60/80/100/120)50KDLV is a premium TAA-compliant commercial LED wall pack featuring field-selectable wattages of 60W, 80W, 100W, and 120W with a fixed 5000K daylight color temperature. Designed for universal 120-277VAC electrical systems, this versatile fixture allows installers to adjust light output on-site while maintaining crisp daylight illumination for enhanced visibility and security. An integrated photocell and standard 0-10V dimming maximize energy savings through automatic dusk-to-dawn operation and advanced lighting control.

Constructed with a rugged heavy die-cast aluminum alloy housing finished in a corrosion-resistant bronze powder coat, the fixture utilizes premium Lumileds LUXEON 3030 2D LED chips with tempered glass optics to produce uniform illumination through a wide 120° beam angle. The semi cut-off optical design minimizes uplight while directing light toward building perimeters, parking lots, loading docks, walkways, and security areas. Its IP65-rated enclosure provides dependable performance in wet locations and demanding outdoor environments.

Delivering up to 16,572 lumens at the highest wattage setting with efficacy up to 138.1 lumens per watt, this LED wall pack replaces HID fixtures up to 400 watts while significantly reducing energy consumption and maintenance costs. A quick-mount back plate simplifies installation, while reliable operation from -40°F to 104°F makes this fixture ideal for warehouses, factories, stadiums, parking lots, shopping malls, supermarkets, logistics centers, auto dealerships, commercial buildings, and exterior security lighting. Optional cut-off shields and wire guards are available for additional fixture protection and light control.

Technical Performance Specifications
