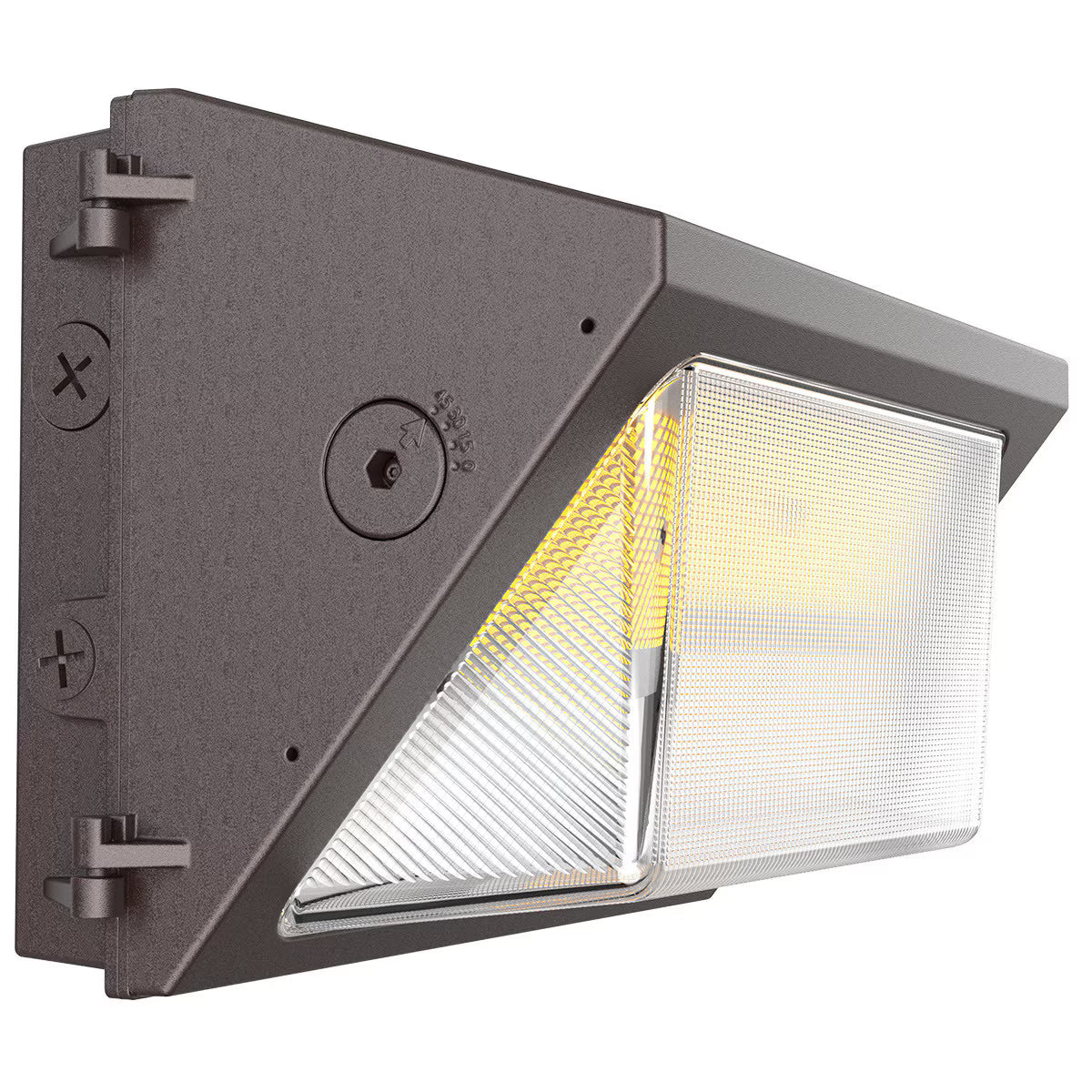

LEDONE WP0136 LOC-WPA-MW(50/70/85/100) MCCT(30/40/50) 50/70/85/100W LED Semi Cut-Off Wall Pack 3000K/4000K/5000K with Photocell 120-277V

Identification & Application

LEDone WP0136 LOC-WPA-MW(50/70/85/100)MCCT(30/40/50) 50/70/85/100W LED Semi Cut-Off Wall Pack 3000K/4000K/5000K with Photocell 120-277V

The LEDone WP0136 LOC-WPA-MW(50/70/85/100)MCCT(30/40/50) is a high-output LED semi cut-off wall pack engineered for commercial, industrial, and security lighting applications. Featuring selectable wattages of 50W, 70W, 85W, and 100W together with field-selectable color temperatures of 3000K, 4000K, and 5000K, this fixture delivers lumen outputs ranging from 6,000 to 12,000 lumens at an efficacy of 120 lumens per watt. Its adjustable optical system allows the beam angle to be tilted from 0° to 45°, providing precise light distribution for building exteriors, parking areas, walkways, and loading docks.

Built with a rugged heavy-duty die-cast aluminum alloy housing and finished with a durable bronze powder coating, this wall pack is designed to withstand demanding outdoor environments. The IP65-rated enclosure offers superior protection against dust and water while resisting corrosion and rust. Universal 120-277V input, integrated 0-10V dimming, a built-in photocell for automatic dusk-to-dawn operation, and a 12V auxiliary power supply provide exceptional installation flexibility and energy-saving performance.

Designed for dependable long-term operation, the LOC-WPA-MW(50/70/85/100)MCCT(30/40/50) features a 50,000-hour rated service life and is backed by a 5-year limited warranty. DLC Premium Listed and UL Certified, the fixture supports optional microwave sensors, remote controls, and emergency drivers, making it an excellent lighting solution for warehouses, factories, shopping centers, parking facilities, logistics centers, auto dealerships, and other commercial outdoor environments.

Technical Performance Specifications
