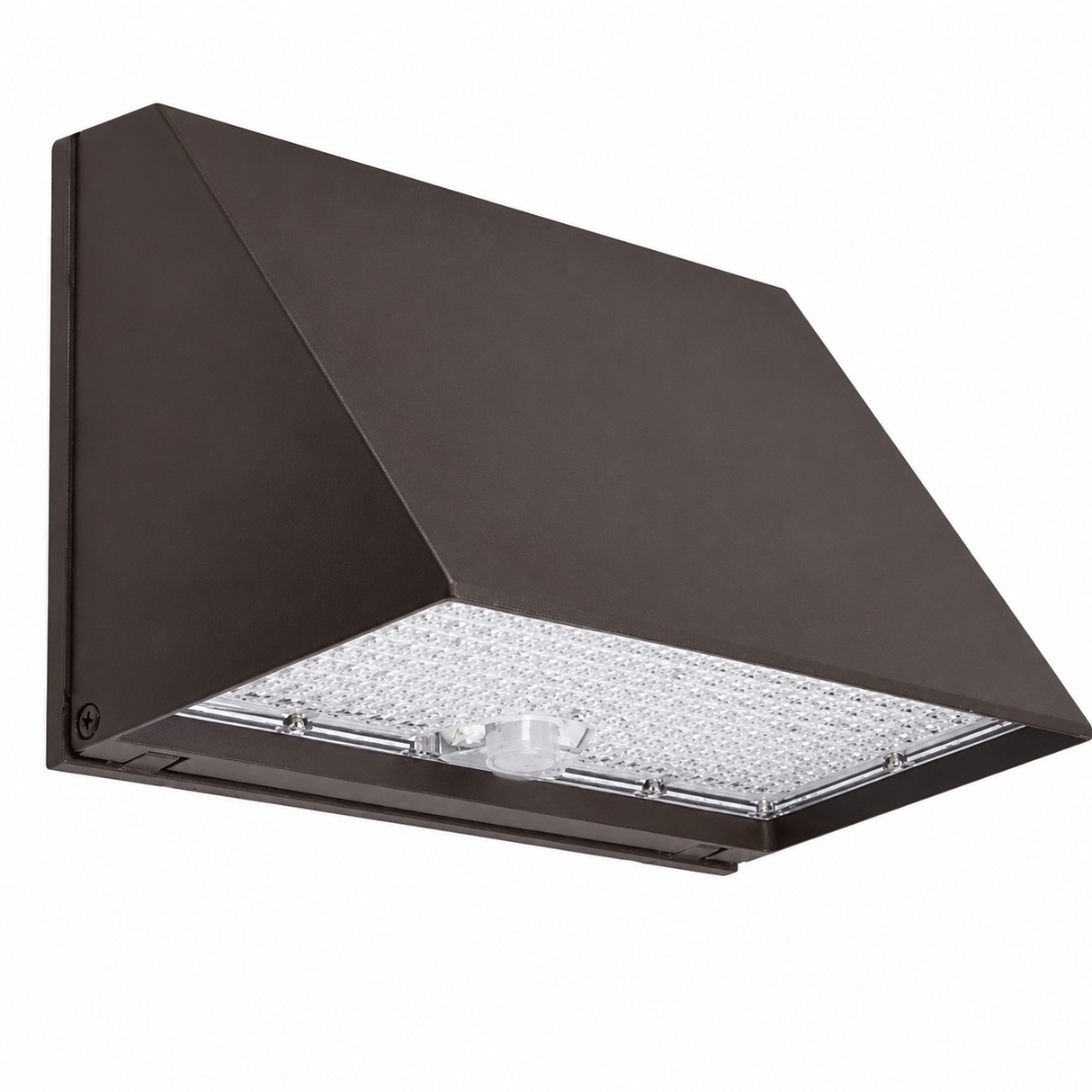

LEDONE WP0140 LOC-FCWP-MW(80/100/120) MCCT(30/40/50) 80/100/120W LED Full Cut-Off Wall Pack 3000K/4000K/5000K with Photocell 120-277V

Identification & Application

LEDone WP0140 LOC-FCWP-MW(80/100/120)MCCT(30/40/50) 80/100/120W LED Full Cut-Off Wall Pack 3000K/4000K/5000K with Photocell 120-277V

The LEDone WP0140 LOC-FCWP-MW(80/100/120)MCCT(30/40/50) is a high-performance LED full cut-off wall pack engineered to provide powerful, glare-controlled illumination for commercial, industrial, and security lighting applications. Featuring field-selectable wattages of 80W, 100W, and 120W along with selectable color temperatures of 3000K, 4000K, and 5000K, this fixture produces up to 17,011 lumens while delivering excellent efficacy of 141.76 lumens per watt. Its full cut-off optical design minimizes uplight and light trespass while providing uniform illumination for parking areas, building perimeters, walkways, loading docks, and facility entrances.

Constructed with a rugged die-cast aluminum housing and a durable polycarbonate diffuser, this wall pack is designed to withstand demanding outdoor environments. Premium Lumileds 2835 LED chips provide consistent light output through a 120° beam angle, while the integrated ON/OFF photocell automatically controls operation from dusk to dawn for improved energy efficiency. Universal 120-277V input, standard 0-10V dimming, IP65 weather protection, and 6kV surge protection ensure dependable long-term performance in challenging installations.

Rated for 50,000 hours of service life and backed by a 5-year limited warranty, the LOC-FCWP-MW(80/100/120)MCCT(30/40/50) is DLC Premium Listed and UL Certified for reliable commercial operation. The fixture is compatible with optional microwave sensors, PIR sensors, Bluetooth-enabled controls, remote programming, and emergency drivers, making it an ideal lighting solution for warehouses, factories, logistics centers, exhibition halls, hotels, parking facilities, and other large-scale commercial properties.

Technical Performance Specifications
