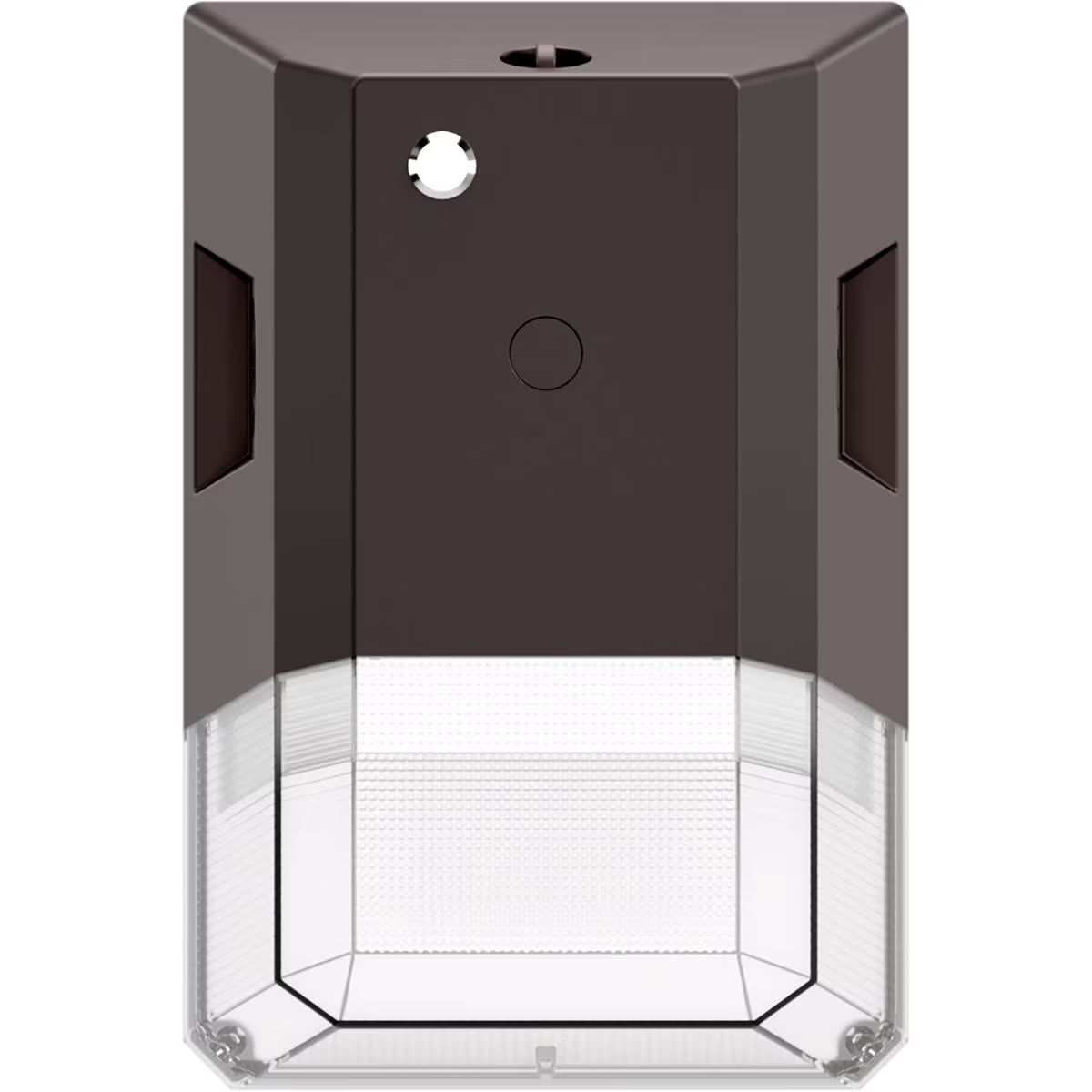

LEDONE WP0143 LOC-DMWP-MW(8/15/25) MCCT(30/40/50) EM 8/15/25W LED Mini Wall Pack 3000K/4000K/5000K Bronze Finish with Photocell and Emergency Backup 120-277V

Identification & Application

LEDone WP0143 LOC-DMWP-MW(8/15/25)MCCT(30/40/50)-EM 8/15/25W LED Mini Wall Pack 3000K/4000K/5000K Bronze Finish with Photocell and Emergency Backup 120-277V

The LEDone WP0143 LOC-DMWP-MW(8/15/25)MCCT(30/40/50)-EM is a compact, high-performance LED mini wall pack designed to provide dependable exterior illumination while offering emergency lighting capability during power outages. Featuring field-selectable wattages of 8W, 15W, and 25W along with selectable color temperatures of 3000K, 4000K, and 5000K, this versatile fixture delivers up to 3,000 lumens with an efficacy of 120 lumens per watt. An adjustable reflector allows users to easily switch between non-cut-off and full cut-off light distribution to suit a wide range of outdoor applications.

Constructed with a rugged heavy-duty die-cast aluminum housing finished in durable bronze polyester powder coating, the fixture is engineered for years of reliable outdoor performance. Premium Philips Lumileds 3030 LED chips, tempered glass optics, and an integral secondary heat sink maximize thermal efficiency and LED longevity. Universal 120-277V operation, a built-in photocell, continuous dimming to 10% or below, and an integrated 4W emergency battery backup provide dependable illumination during normal operation and emergency conditions alike.

Rated for 50,000 hours of service life and backed by a 5-year limited warranty, the LOC-DMWP-MW(8/15/25)MCCT(30/40/50)-EM is IP65 rated, DLC Premium Listed, and UL Certified for demanding commercial environments. Combining selectable light output, emergency backup operation, and adjustable light distribution, this fixture is ideal for warehouses, factories, shopping centers, parking lots, logistics centers, auto dealerships, walkways, building entrances, and security lighting applications.

Technical Performance Specifications
