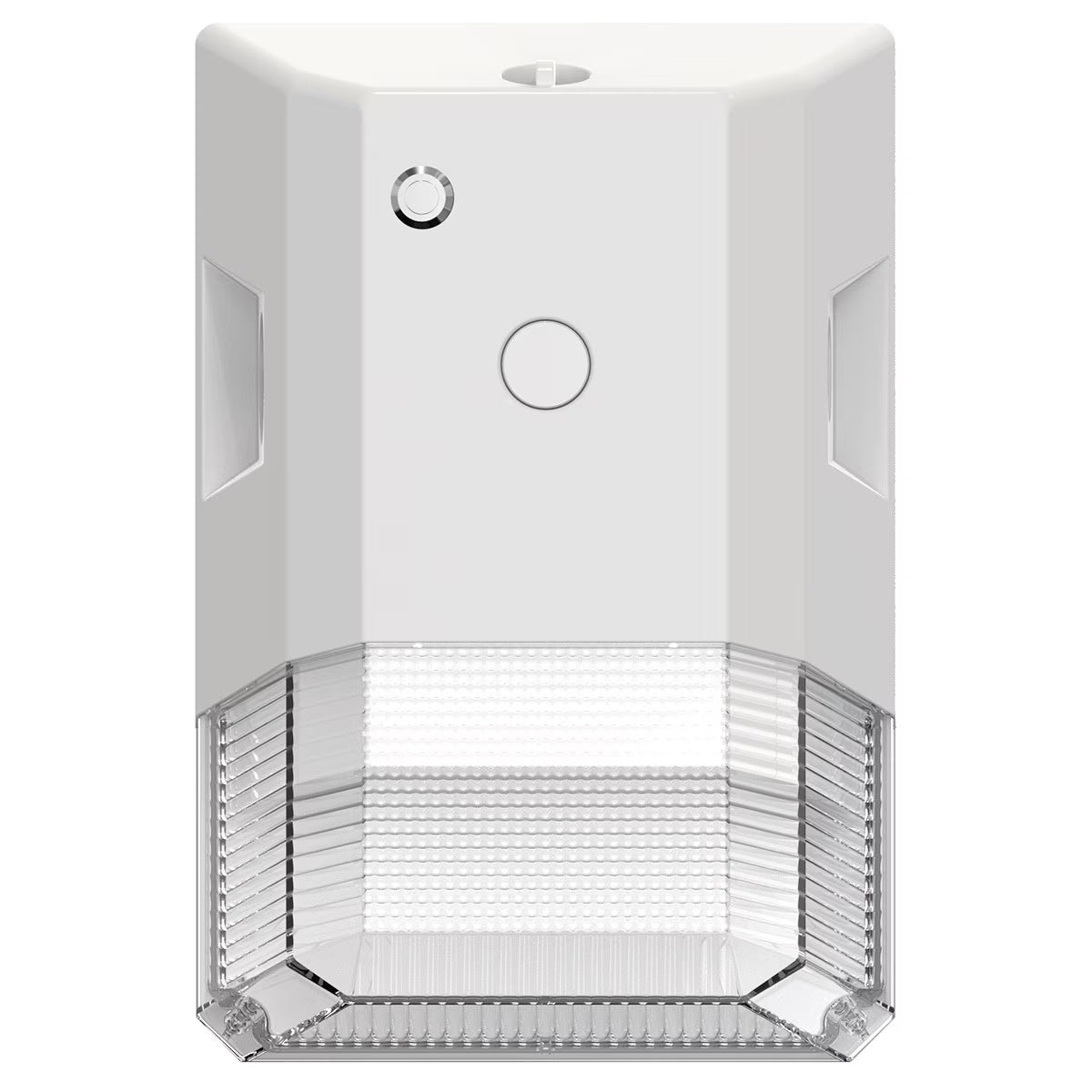

LEDONE WP0144 LOC-DMWP-MW(8/15/25) MCCT(30/40/50)(White) EM 8/15/25W LED Mini Wall Pack 3000K/4000K/5000K White Finish with Photocell and Emergency Backup 120-277V

Identification & Application

LEDone WP0144 LOC-DMWP-MW(8/15/25)MCCT(30/40/50)(White)-EM 8/15/25W LED Mini Wall Pack 3000K/4000K/5000K White Finish with Photocell and Emergency Backup 120-277V

The LEDone WP0144 LOC-DMWP-MW(8/15/25)MCCT(30/40/50)(White)-EM is a compact, high-performance LED mini wall pack engineered to provide dependable outdoor illumination while maintaining emergency lighting capability during power outages. Featuring field-selectable wattages of 8W, 15W, and 25W together with selectable color temperatures of 3000K, 4000K, and 5000K, this versatile fixture delivers up to 3,000 lumens at an efficacy of 120 lumens per watt. Its adjustable reflector allows users to quickly transition from a non-cut-off to a full cut-off distribution, providing optimal lighting control for a variety of exterior applications.

Constructed with a rugged heavy-duty die-cast aluminum housing finished in a durable white polyester powder-coated finish, this fixture is designed to withstand demanding outdoor environments. Premium Philips Lumileds 3030 LED chips, tempered glass optics, and an integral secondary heat sink maximize thermal performance for long-term reliability. Universal 120-277V operation, a built-in photocell, continuous dimming to 10% or below, and an integrated 4W emergency battery backup provide dependable illumination during both normal operation and emergency conditions.

Rated for 50,000 hours of service life and backed by a 5-year limited warranty, the LOC-DMWP-MW(8/15/25)MCCT(30/40/50)(White)-EM is IP65 rated, DLC Premium Listed, and UL Certified for demanding commercial environments. The clean white finish blends seamlessly with light-colored building exteriors while delivering dependable performance for warehouses, factories, shopping centers, parking lots, logistics centers, auto dealerships, walkways, building entrances, emergency egress lighting, and perimeter security applications.

Technical Performance Specifications
