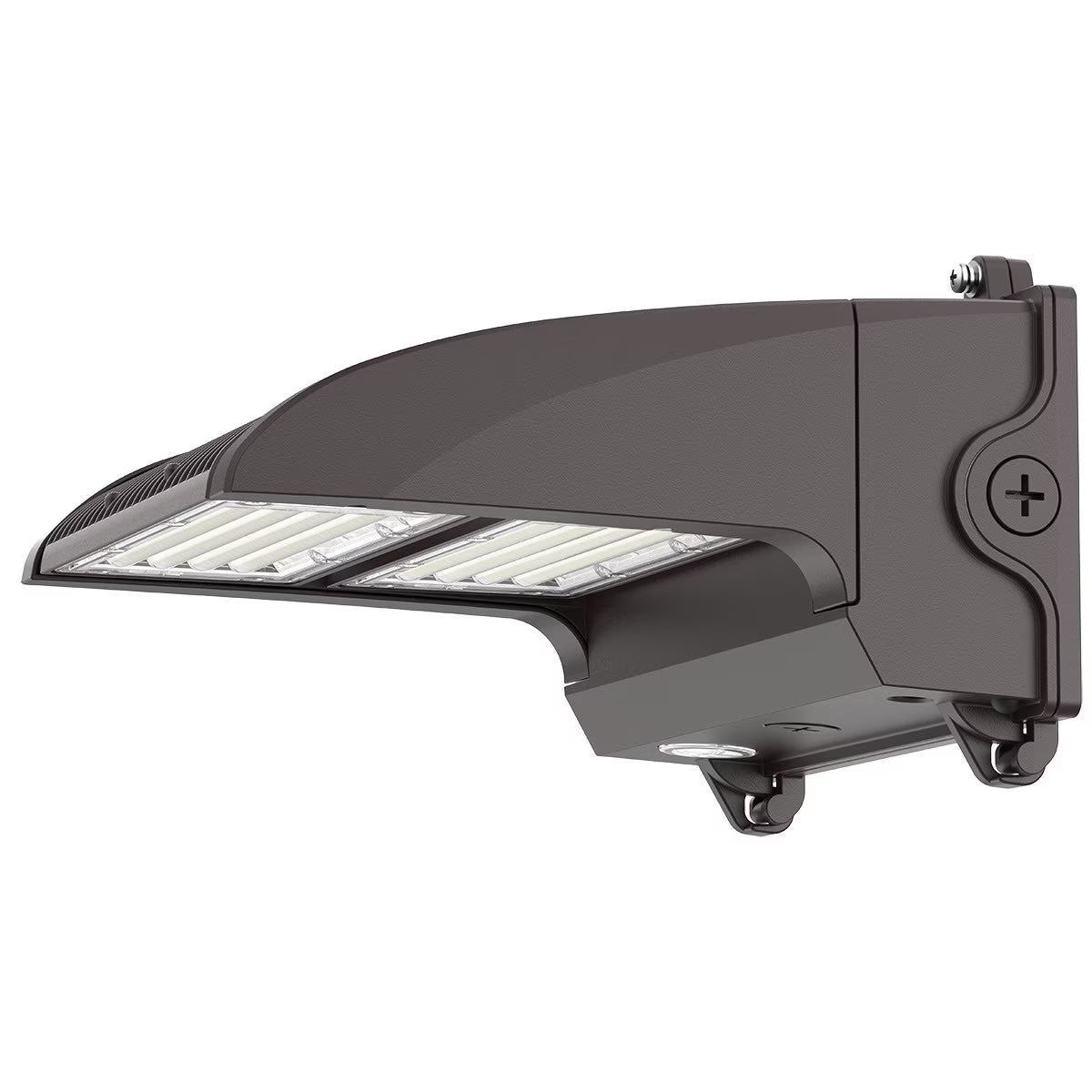

LEDONE WP0150 LOC-RTWP-MW120W3CCT 60/80/100/120W LED Rotating Wall Pack 3000K/4000K/5000K with Built in Sensor Base 120-277V

Identification & Application

LEDone WP0150 LOC-RTWP-MW120W3CCT 60/80/100/120W LED Rotating Wall Pack 3000K/4000K/5000K with Built-in Sensor Base 120-277V

The LEDone WP0150 LOC-RTWP-MW120W3CCT is a versatile LED rotating wall pack engineered to provide powerful, energy-efficient outdoor illumination for commercial and industrial environments. Featuring field-selectable wattages of 60W, 80W, 100W, and 120W along with selectable color temperatures of 3000K, 4000K, and 5000K, this fixture delivers up to 17,028 lumens with an efficacy of 141.9 lumens per watt. Its adjustable Type III optical distribution and rotating head allow installers to precisely direct light where it is needed for maximum coverage and efficiency.

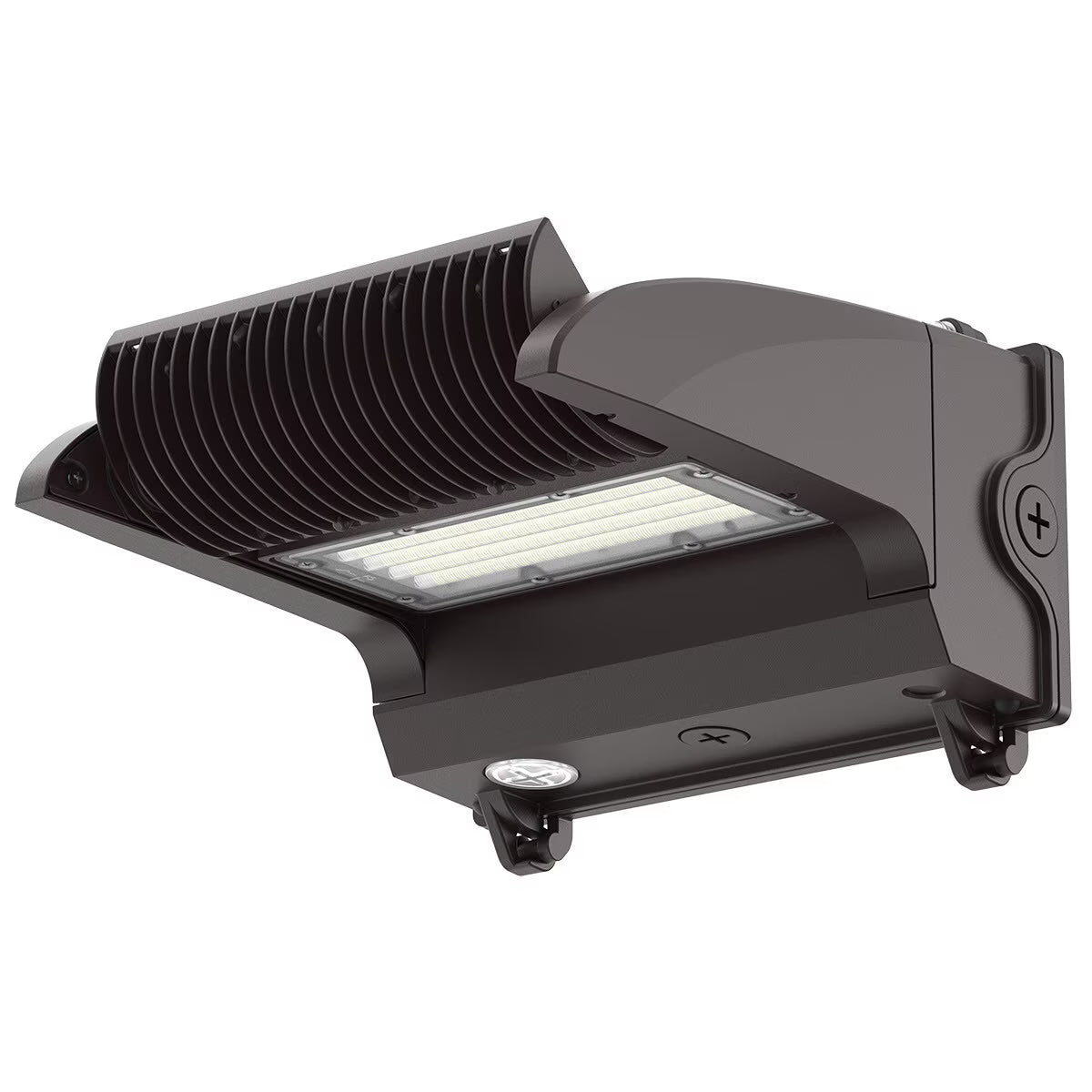

Constructed with a durable die-cast aluminum housing, impact-resistant polycarbonate lens, and attractive bronze finish, this wall pack is built for dependable outdoor performance. The toolless adjustable head rotates from -15° to 210°, allowing fast field adjustments without disassembly. Universal 120-277V operation, standard 0-10V dimming, integrated dusk-to-dawn photocell, and a built-in sensor base provide exceptional installation flexibility while reducing energy consumption and maintenance costs.

Designed for long-term reliability, the LOC-RTWP-MW120W3CCT features an IP65-rated enclosure, 6kV surge protection, a 50,000-hour L70 rated life, and a 5-year limited warranty. Compatible with optional microwave and PIR sensors, Bluetooth controls, and remote programming, this rotating wall pack is ideal for walkways, parking lots, commercial buildings, landscape lighting, apartment complexes, and other outdoor security lighting applications.

Technical Performance Specifications
