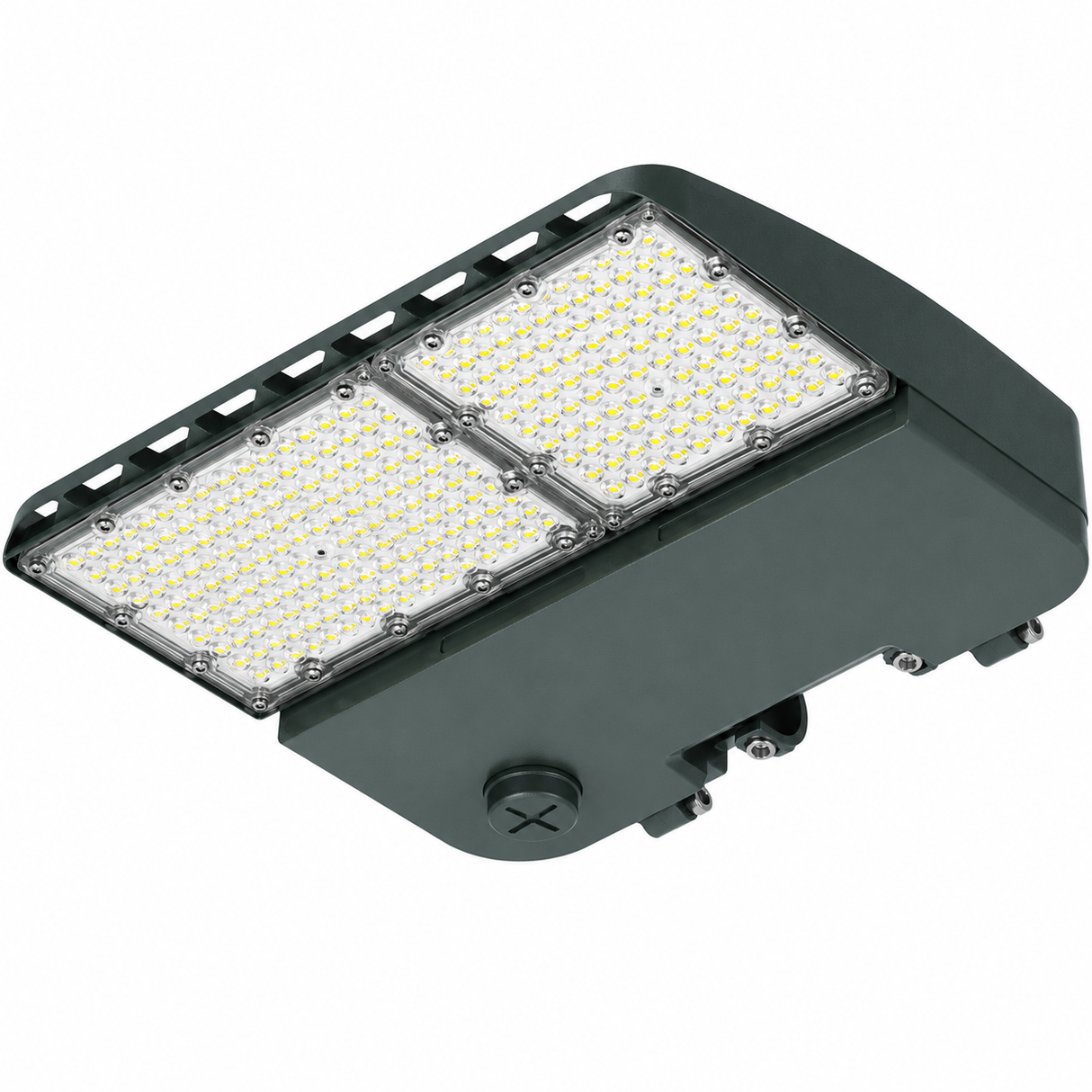

NATURALED 5204 FXSCL150SW/8CCT3/GN/TT-Z10 90/120/150W LED Sport Court Tennis Area Light Green Finish 3000K/4000K/5000K 120-277V

$623.70
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet

Description

Identification & Application

NaturaLED 5209 FXSCL150SW/8CCT3/BK/TT-Z10 90/120/150W LED Sport Court Tennis Area Light Black Finish 3000K/4000K/5000K 120-277V

The NaturaLED 5209 FXSCL150SW/8CCT3/BK/TT-Z10 is a professional-grade LED sports court area light engineered to provide powerful, uniform illumination for tennis courts, pickleball courts, basketball courts, recreational facilities, athletic complexes, schools, parks, and municipal sports venues. Featuring field-selectable wattages of 90W, 120W, and 150W together with selectable color temperatures of 3000K, 4000K, and 5000K, this high-performance fixture delivers selectable lumen outputs of 12,600, 18,000, or 21,000 lumens with a precision-engineered Type Tennis optical distribution for exceptional court coverage and player visibility.

Constructed with a rugged die-cast aluminum housing finished in a durable black powder coating, the fixture is built to withstand demanding outdoor environments. The IP66-rated enclosure and IK10 impact rating provide superior protection against moisture, dust, and vandalism. Operating on universal 120-277V input power, the fixture features smooth 0-10V dimming, CRI greater than 80, integrated 20kV surge protection, AUX 12V output, and a Z10 receptacle for optional smart controls including photocells and motion sensors. Multiple mounting options including pole mount, slip fitter, and yoke mount provide installation flexibility for new construction and retrofit applications.

Designed for commercial sports lighting applications, the NaturaLED 5209 is DLC Premium qualified, ETL/cETL Listed, FCC compliant, and RoHS compliant. Rated for 50,000 hours of operation and backed by a 5-year manufacturer's warranty, this high-efficiency LED area light delivers exceptional energy savings, reduced maintenance costs, and dependable long-term performance for sports courts and outdoor recreational facilities.

Technical Performance Specifications

Brand NaturaLED
SKU / MPN 5209 / FXSCL150SW/8CCT3/BK/TT-Z10
Product Type LED Sports Court / Tennis Area Light
Electrical Selectable Wattages: 90W / 120W / 150W; Input Voltage: 120-277VAC; Frequency: 50/60Hz; 0-10V Dimmable; Power Factor >0.90; THD <20%; CRI >80; AUX 12V Output; Z10 Receptacle; 20kV Surge Protection
Optical Selectable Color Temperatures: 3000K / 4000K / 5000K; Selectable Lumens: 12,600 / 18,000 / 21,000 lm; Efficacy: 140 lm/W; Type Tennis Distribution; BUG Rating: B3-U0-G2
Equivalent Wattage 400W HID Replacement
Mounting Pole Mount, Slip Fitter, or Yoke Mount; Recommended Mounting Height: 10-20 ft.
Mechanical Die-Cast Aluminum Housing; Black Finish; IP66 Rated; IK10 Impact Rated; DLC Premium Qualified; ETL/cETL Listed; EPA: 0.25 ft²
Dimensions 12.01 in. W × 14.20 in. D × 2.60 in. H; Weight: 8 lbs.
Operating Temperature -40°F to 122°F (-40°C to 50°C)
Lifecycle Rated Life: 50,000 Hours; 5-Year Manufacturer Warranty
Applications Tennis Courts, Pickleball Courts, Basketball Courts, Sports Complexes, Athletic Facilities, Schools, Parks, Recreation Centers, Outdoor Courts, Municipal Sports Venues
Accessories Photocell, Microwave Motion Sensor, PIR Motion Sensor, Remote Programmer, Type II, Type III, Type IV, Type V, Tennis and Type III Backlight Control Lenses, Pole Mount, Slip Fitter, Yoke Mount, Rectangle Slip Fitter, Glare Shield
Case Quantity 1 Fixture per Master Carton
Documentation See spec sheet.
