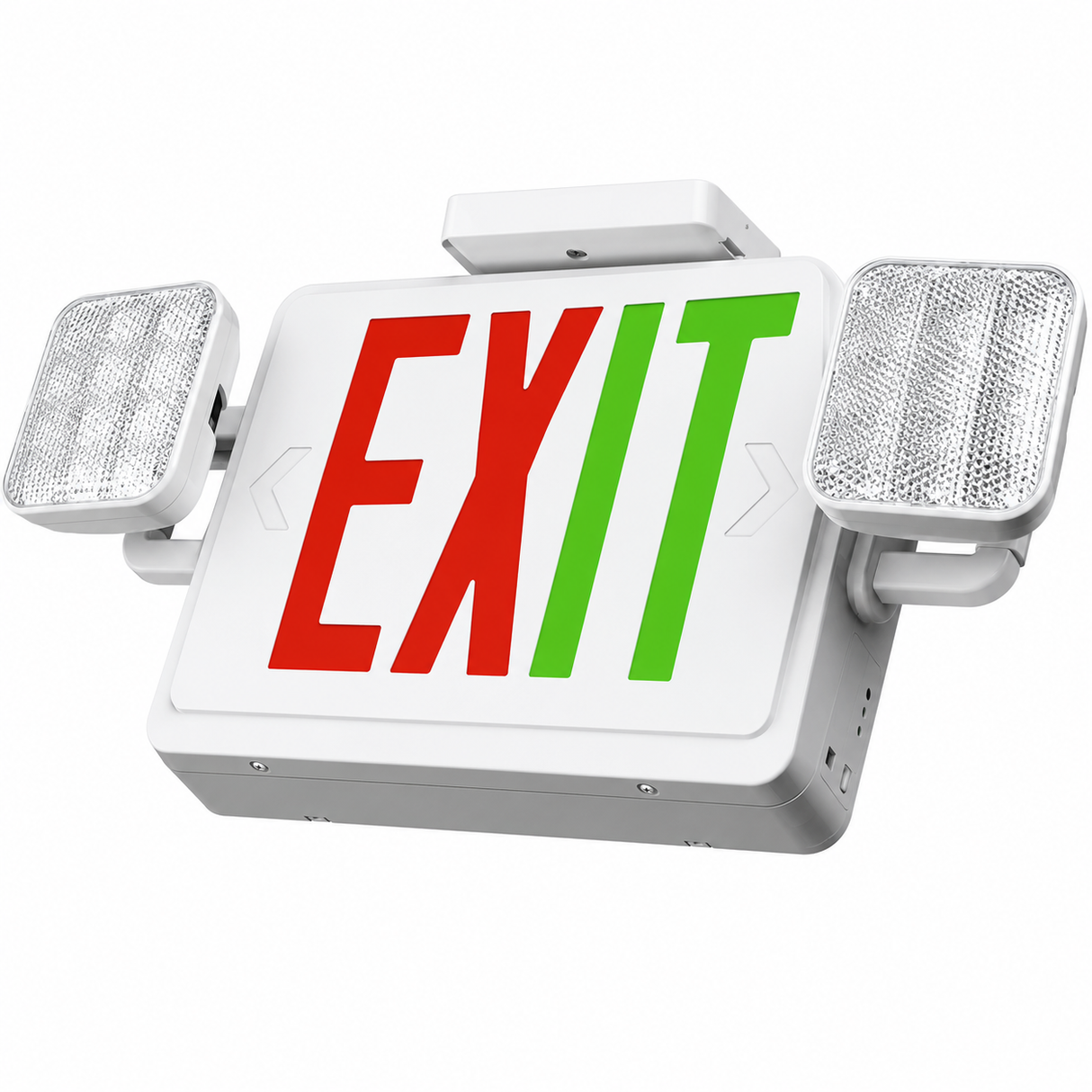

NATURALED 7528 LEDEX-EMFD-GRN/RED-WH 3.5W LED Dual-Color Exit Sign / Emergency Light Combo 120-277V

Identification & Application

NaturaLED 7528 LEDEX-EMFD-GRN/RED-WH 3.5W LED Dual-Color Exit Sign / Emergency Light Combo 120-277V

The NaturaLED 7528 LEDEX-EMFD-GRN/RED-WH is a commercial-grade LED Dual-Color Exit Sign and Emergency Light Combo designed to provide dependable emergency egress guidance and backup illumination in a single integrated fixture. Featuring field-selectable red or green LED EXIT lettering combined with dual adjustable emergency light heads, this energy-efficient unit delivers reliable exit identification and emergency lighting for offices, schools, hospitals, retail stores, warehouses, hotels, apartment buildings, and other commercial or institutional facilities. Operating on universal 120/277V input power while consuming only 3.5 watts, the fixture provides dependable emergency operation with minimal energy consumption.

Constructed with a durable injection-molded ABS thermoplastic housing featuring a UL 94V-0 flame rating, the fixture is engineered for long-lasting reliability and simple installation. The adjustable emergency light heads produce more than 180 lumens of emergency illumination and can be aimed where light is needed most. Designed for wall mounting or ceiling J-box mounting, the integrated 1.2V 1000mAh Ni-MH rechargeable battery provides a minimum emergency runtime of 90 minutes during power outages. Additional features include a built-in test switch, charge indicator, maximum 24-hour recharge time, and dependable operation in temperatures from 32°F to 104°F.

Built for dependable long-term performance, the NaturaLED 7528 is UL/cUL Listed, FCC compliant, RoHS compliant, and IP22 rated for indoor applications. Rated for 50,000 hours of service life and backed by a 2-year manufacturer's warranty, this exit sign and emergency light combination provides dependable emergency operation, simplified maintenance, and code-compliant life safety protection.

Technical Performance Specifications
