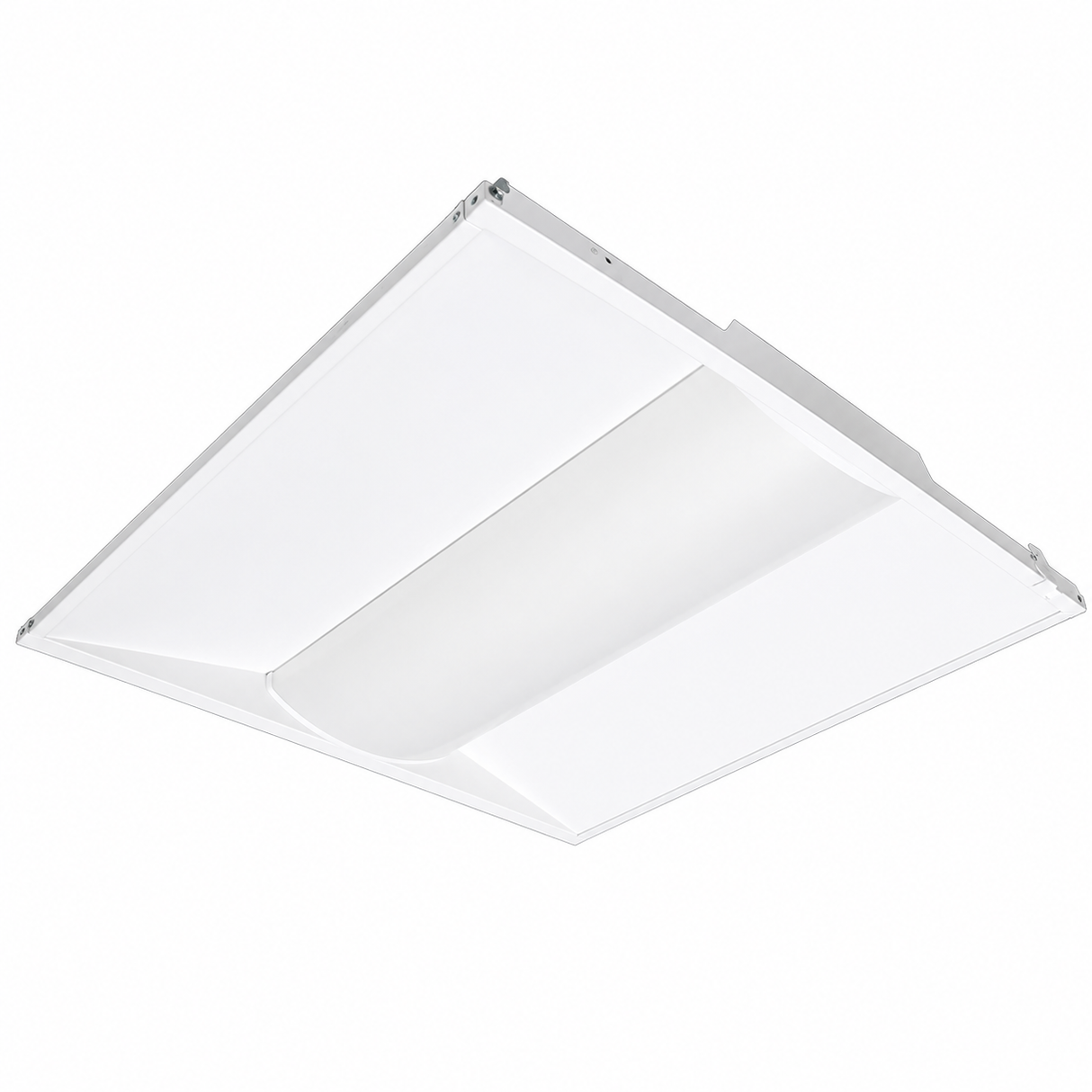

NATURALED 9213 FXRTF25SW/2x2/8CCT3 16/20/25W 2x2ft LED Center Basket Troffer Retrofit Kit 3500K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9213 FXRTF25SW/2x2/8CCT3 16/20/25W 2x2ft LED Center Basket Troffer Retrofit Kit 3500K/4000K/5000K 120-277V

The NaturaLED 9213 FXRTF25SW/2X2/8CCT3 is a premium commercial-grade 2ft x 2ft LED Center Basket Troffer Retrofit Kit engineered to upgrade existing fluorescent troffers with high-efficiency LED technology while minimizing installation time and energy costs. Featuring field-selectable wattages of 16W, 20W, and 25W along with selectable color temperatures of 3500K, 4000K, and 5000K, this retrofit kit delivers selectable lumen outputs of 2,000, 2,500, or 3,125 lumens to accommodate a wide range of commercial lighting applications. Its narrow-edge PMMA lens provides clean, uniform illumination with a 110° beam angle and excellent visual comfort, making it ideal for conference rooms, meeting rooms, factories, offices, schools, hospitals, and other interior commercial environments.

Designed specifically for fast retrofit installations in existing T-Bar/Grid ceiling troffers, the fixture is compatible with both 1-inch and 9/16-inch T-bar grid systems. It operates on universal 120-277V input power and features smooth 0-10V dimming with dim-to-off capability for compatibility with modern lighting controls. Additional features include a power factor greater than 0.90, integrated 2.5kV surge protection, durable steel construction with a PMMA lens, and dependable operation in ambient temperatures from -4°F to 104°F. Its lightweight narrow-edge design simplifies installation while maximizing energy savings compared to traditional fluorescent systems.

Built for long-term commercial reliability, the NaturaLED 9213 is DLC Premium qualified, ETL Listed, Damp Location rated, FCC compliant, and RoHS compliant. Rated for 50,000 hours of operation and backed by a 5-year manufacturer's warranty, this LED retrofit troffer kit provides dependable performance, excellent energy efficiency, and a cost-effective solution for commercial lighting modernization.

Technical Performance Specifications
