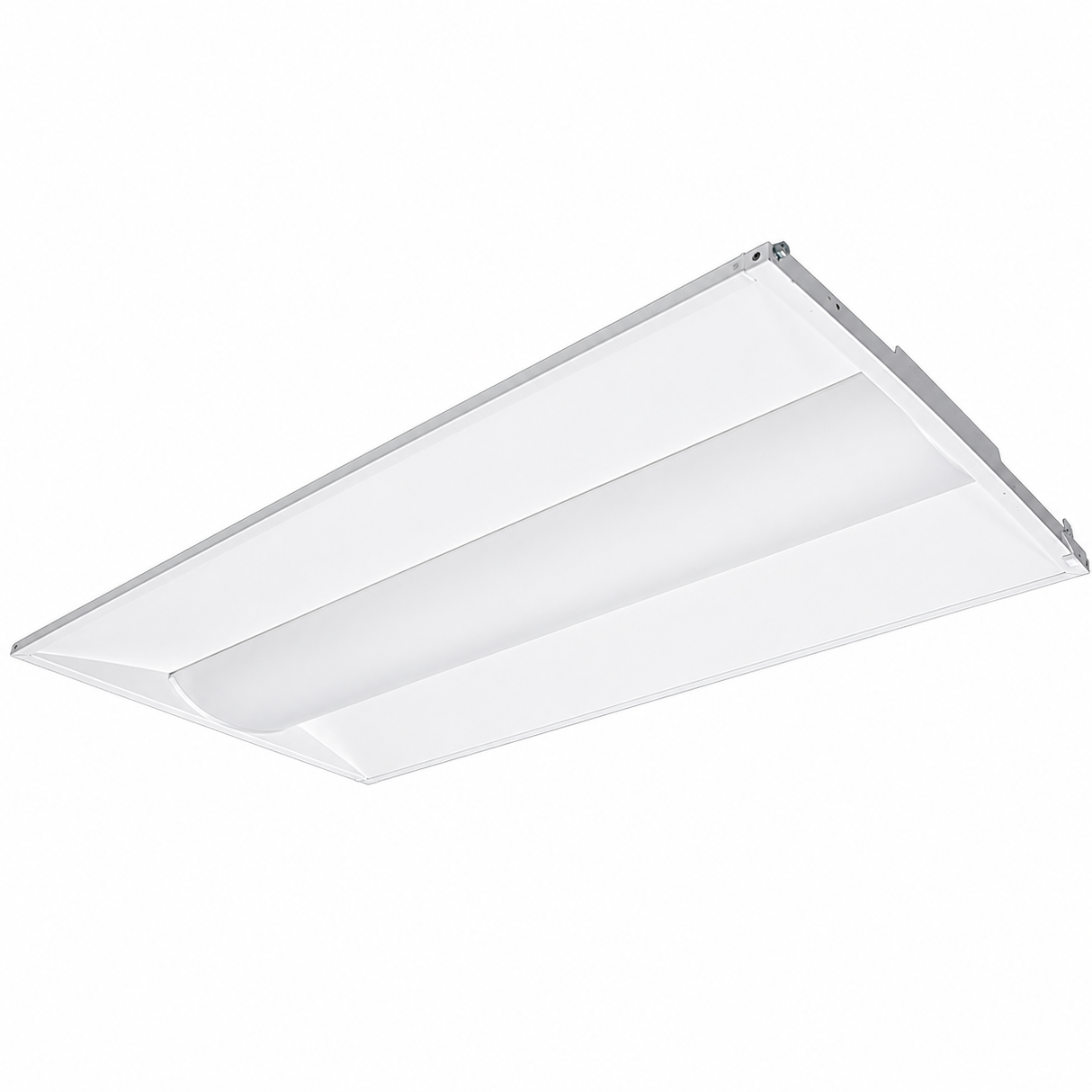

NATURALED 9215 FXRTF50SW/2x4/8CCT3 34/42/50W 2x4ft LED Center Basket Troffer Retrofit Kit 3500K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9215 FXRTF50SW/2X4/8CCT3 34/42/50W 2x4ft LED Center Basket Troffer Retrofit Kit 3500K/4000K/5000K 120-277V

The NaturaLED 9215 FXRTF50SW/2X4/8CCT3 is a premium commercial-grade 2ft x 4ft LED Center Basket Troffer Retrofit Kit engineered to upgrade existing fluorescent troffers with high-efficiency LED technology while reducing installation time and energy consumption. Featuring field-selectable wattages of 34W, 42W, and 50W along with selectable color temperatures of 3500K, 4000K, and 5000K, this retrofit kit delivers selectable lumen outputs of 4,250, 5,250, or 6,520 lumens to accommodate demanding commercial lighting applications. Its narrow-edge PMMA lens provides smooth, uniform illumination with a 110° beam angle, making it ideal for conference rooms, meeting rooms, factories, offices, schools, hospitals, retail spaces, and other commercial interior environments.

Designed specifically for fast retrofit installations in existing 2ft x 4ft T-Bar/Grid ceiling troffers, the fixture is compatible with both 1-inch and 9/16-inch T-bar grid systems. It operates on universal 120-277V input power and features smooth 0-10V dimming with dim-to-off capability for seamless integration into modern lighting control systems. Additional features include a power factor greater than 0.90, THD less than 20%, integrated 2.5kV surge protection, durable steel construction with a premium PMMA lens, and dependable operation in ambient temperatures from -4°F to 104°F. The lightweight narrow-edge design allows for quick installation while maximizing long-term energy savings compared to traditional fluorescent fixtures.

Built for dependable long-term commercial performance, the NaturaLED 9215 is DLC Premium qualified, ETL/cETL Listed, Damp Location rated, FCC compliant, and RoHS compliant. Rated for 50,000 hours of operation and backed by a 5-year manufacturer's warranty, this LED retrofit troffer kit delivers exceptional reliability, excellent energy efficiency, and a cost-effective solution for commercial lighting modernization.

Technical Performance Specifications
