NATURALED 9544 VTJ20S/8C3/GY/MV-PHO 10/15/20W LED Vapor Tight Jelly Jar Fixture 3000K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9544 VTJ20S/8C3/GY/MV-PHO 10/15/20W LED Vapor Tight Jelly Jar Fixture 3000K/4000K/5000K 120-277V

The NaturaLED 9544 VTJ20S/8C3/GY/MV-PHO is a rugged LED vapor-tight jelly jar fixture designed for demanding indoor and outdoor environments where reliable illumination and weather resistance are essential. Featuring selectable wattages of 10W, 15W, and 20W together with field-selectable color temperatures of 3000K, 4000K, and 5000K, this versatile fixture delivers selectable lumen outputs of 800, 1,200, and 1,600 lumens. Its integrated photocell, IP65-rated construction, and adjustable mounting angle make it ideal for warehouses, security lighting, doorways, pathways, scaffolding, construction sites, utility areas, and industrial facilities.

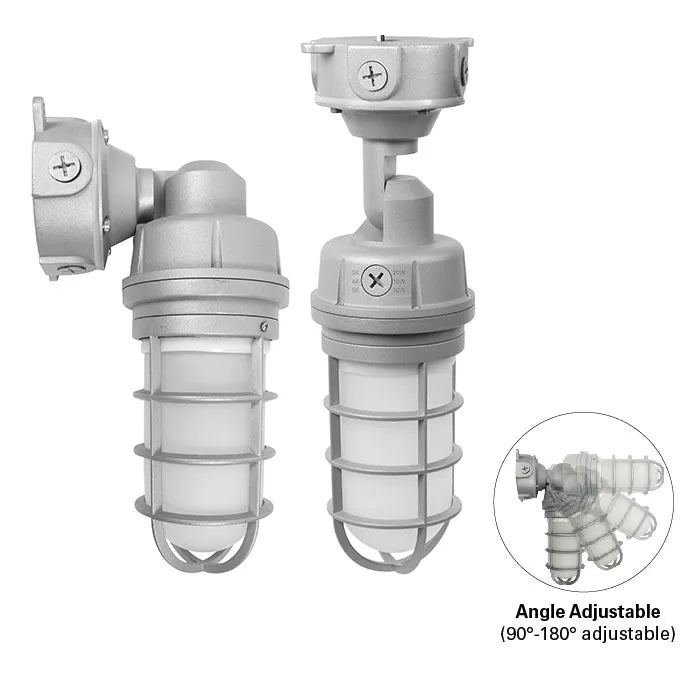

Constructed with a heavy-duty die-cast aluminum housing finished in gray (RAL 7004) and a frosted glass diffuser, the fixture provides glare-free illumination while protecting against moisture, dust, and harsh outdoor conditions. Operating on universal 120-277V input power, it features smooth field-selectable wattage and CCT adjustments, built-in photocell control, 4kV surge protection, CRI greater than 80, and an adjustable mounting angle from 90° to 180° for wall or ceiling installations. Four 1/2-inch conduit entries simplify wiring for new or retrofit installations.

Designed for long-term durability, the NaturaLED 9544 is ETL/cETL Listed, IP65 rated, and engineered for over 50,000 hours of maintenance-free operation. Backed by a 5-year limited manufacturer's warranty, this high-performance LED vapor-tight fixture delivers dependable illumination while significantly reducing energy consumption compared to incandescent and CFL jelly jar fixtures.

Technical Performance Specifications
