NATURALED 9545 FX10SCM60SW/8CCT3/BK 28/45/57W LED 10-Inch Slim Square Canopy Fixture Black Finish 3000K/4000K/5000K 120-277V

Identification & Application

NaturaLED 9545 FX10SCM60SW/8CCT3/BK 28/45/57W LED 10-Inch Slim Square Canopy Fixture Black Finish 3000K/4000K/5000K 120-277V

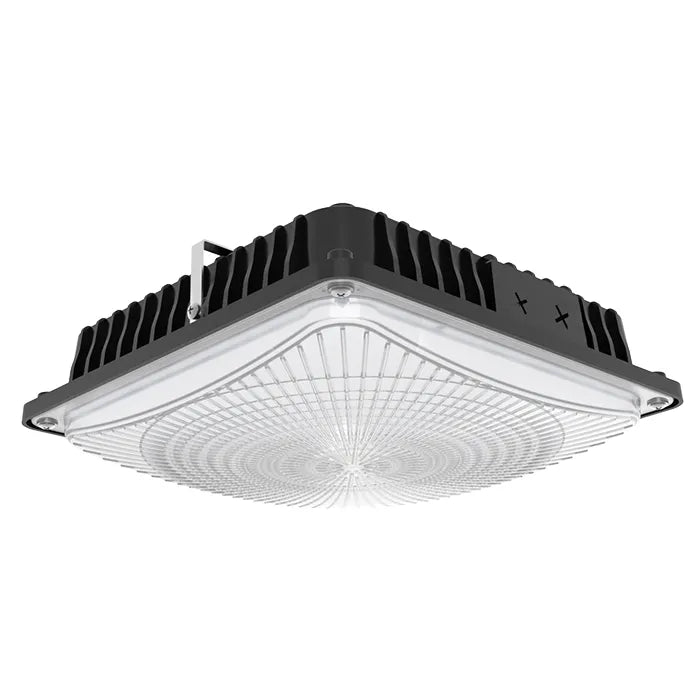

The NaturaLED 9545 FX10SCM60SW/8CCT3/BK is a premium commercial LED 10-inch Slim Square Canopy Fixture engineered to provide dependable, energy-efficient illumination for warehouses, parking garages, offices, factories, hospitals, hotels, parking structures, walkways, and covered outdoor areas. Featuring field-selectable wattages of 28W, 45W, and 57W along with selectable color temperatures of 3000K, 4000K, and 5000K, this versatile fixture delivers selectable lumen outputs of 3,584, 5,760, or 7,318 lumens. Its slim low-profile design supports both pendant mounting and direct surface mounting to ceilings or walls while providing a wide 160° beam angle for exceptional area coverage.

Constructed with a rugged die-cast aluminum housing finished in a corrosion-resistant black coating, the fixture features a shatter-resistant polycarbonate prismatic lens and an IP65-rated enclosure for dependable indoor and outdoor performance. Operating on universal 120-277V input power, the fixture includes smooth 0-10V dimming, CRI greater than 80, integrated 4kV surge protection, and three 1/2-inch conduit entry points for installation flexibility. The housing also accepts a 3/4-inch NPT pendant mount and supports numerous field-installed accessories including motion sensors, photocells, emergency drivers, frosted lenses, drop lenses, beauty plates, wire guards, and surge protectors.

Designed for commercial reliability, the NaturaLED 9545 is DLC Premium qualified, ETL/cETL Listed, and IP65 rated. Rated for 50,000 hours of operation and backed by a 5-year manufacturer's warranty, this slim square canopy fixture delivers exceptional energy savings, reduced maintenance costs, and dependable lighting performance for both retrofit and new construction applications.

Technical Performance Specifications
